CITRIS Building Startup Space Committees

1

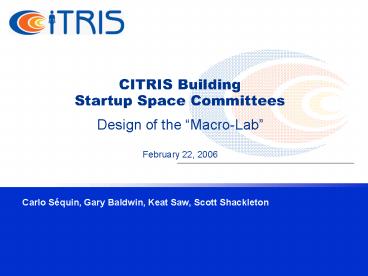

CITRIS Building Startup Space Committees
Design of the Macro-LabFebruary 22, 2006

• Carlo Séquin, Gary Baldwin, Keat Saw, Scott
  Shackleton

2
West View (Floors 2-7 Visible)
3
Looking South on Engineering Esplanade
4
CyberCafe, West Facade
5
A Few Typical Spaces
Signature conference room (sixth floor)
Small conference room
Entrance to main auditorium
Entrance corridor
6
College EntranceLevel 3
7
Floorplan Level 3
to CEE Dept. (Davis Hall)
8
Main Auditorium (third floor)
9
Level 3M NanoFab(Lower Level)
10
Level 3M NanoFab(Lower Level)
11
Level 7
12
Floorplan Level 7
13
Level 6
14
Floorplan Level 6
to Cory Hall
to CEE Dept. (Davis Hall)
15
Level 5
Entrance toMicro/Nano-Lab
16
FloorplanLevel 5
Entrance toMicro/Nano-Lab
17
Level 4
18
Floorplan Level 4
19
Level 2
20
Floorplan Level 2
21
Level 1 (Basement)
22
Floorplan Level 1 (Basement)
23
Approximate Schedule

• Jan 3 - Jan 31, 2006      Bid Period
• Feb 27, 2006                 Contract Award
• Mar 15, 2006                 Construction Start
• Spring, 2008             Construction
  Completion
• Summer, 2008 Move In

24
MacroLab-Level 1
45x68
26x66
44x45
21x70
25
MacroLab-Level 2
75x21
32x15
26
Role of Design Committees

• Help us to make the CITRIS building truly
  functional
• Think through what should comprise the basic
  infrastructure
• Make sure we didnt miss anything in the
  infrastructure design
• Help develop usage guidelines for open,
  collaborative research spaces
• Fit-out of open office spaces for cubicle
  furniture
• Furniture plan for key conference rooms
• Specify needs for facilities fit-out for computer
  rooms and collaboratories
• Define A/V, networking, broadcasting, and other
  infrastructure
• Specify needs for Distance Learning Center
• Help with security guidelines (e.g., space
  accessibility to students after 5 PM )
• Content for open spaces entrance, café, tech
  museum

27
A Few Guidelines

• Successful functioning of the building heavily
  depends on works of these committees
• CITRIS goals and mission embrace highly
  multi-disciplinary, collaborative research
• CITRIS Headquarters serves many colleges,
  departments, and four UC campuses
• Plan for general occupancy model of temporary
  space - - for the life of projects/programs only
• The basic structure, both interior and exterior,
  is designed and fixed. We want to minimize any
  changes theyre costly.
• Generally, throughout the building, design for
  consistency in every aspect cubicles, furniture,
  networking, telephony, displays, amenities, etc.
• Specific goals and objectives for each committee
  will be distributed during the first meeting of
  each committee (after 1/1/06).
• Meet monthly, for the first few months
  (approximately through Spring 06 term).
  Following that, probably quarterly update.
• Report quarterly
• Plenary session twice each semester to review
  checkpoints
• Have tentative design documents ready by early
  summer 2006
• Dedicated webspace on www.citris-uc.org for
  document sharing, diagrams, updates, etc. To
  obtain access and instructions, go to
  http//www.citris-uc.org/file_repositories

28
Committee Members

• NanoFab Suite (fifth floor)
• Bill Flounders, Costas Spanos, Arun Majumdar,
  Luke Lee, Eicke Weber, Per Peterson, Gary Baldwin
  (chair)
• Macrolab Suite (Rooms 200, 201, 244 and portions
  of 140, 145, 148)
• Alice Agogino (chair), John Canny, Kara Nelson,
  Ruzena Bajcsy, Karl Hedrick
• Basement Laboratory (Room 145)
• Kathy Yelick, Eric Brewer, Stephen Brenner,
  Andrew Packard, Mark Hansen, Gary Baldwin (chair)
• Technology Museum
• Kris Pister, Homayoun Kazerooni, Stephen
  Connolly, Yuri Suzuki, Jasmina Vujic, Ken
  Goldberg, Gary Baldwin (chair)
• Classrooms 240, 250, 254 and Auditorium-related
  (301, 310, 306, 311, 312)
• Anthony St. George, Pam Atkinson (chair), Lisa
  Pruitt, Dan Garcia, Paul Wright, Raja Sengupta
• Computer Server Room (131)
• Eric Brewer, Kathy Yelick, Jasmina Vujic, Hua Pei
  Chen, Gary Baldwin (chair)
• Cyber Café
• Dan Garcia, Alex Bayen, Kimmen Sjolander, Jose
  Carmena, Roberto Horowitz, Ellen Zeng (HKN),
  James Li (TBP), May Chu (SWE)
• Members-at-large Richard Newton, Gary Baldwin,
  Carlo Sequin, Scott Shakleton, Keat Saw
