Transcript and Presenter's Notes

Title: Tagout Users Manual


1

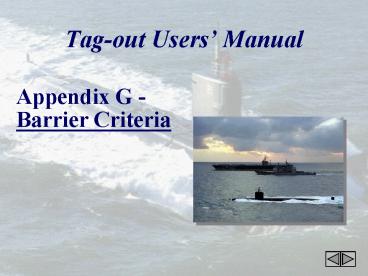

Tag-out Users Manual
Appendix G - Barrier Criteria
2
Purpose
  • To provide the minimum criteria for maintenance
    barriers on shipboard systems.

3
Scope
  • All ships will comply with the requirements of
    this Appendix to ensure appropriate barriers are
    established and maintained during the performance
    of maintenance.
  • Submarines will additionally comply with the
    requirements of Chapter 3 of the Manual for the
    Control of Testing and Ship Conditions (NAVSEA
    0905-485-6010) and/or Volume IV, Chapter 10,
    Appendix D of the Joint Fleet Maintenance Manual
    to ensure watertight integrity during maintenance.
  • Additional barrier criteria for maintenance are
    specified in the applicable Reactor Plant Manual.

4
Discussion
  • A pressure barrier prevents the escape of
    pressurized fluid or gas from a system or from
    one part of a system to an adjacent part of a
    system, or to adjacent connected systems.
  • Pressure barriers are necessary when conducting
    maintenance on piping systems to prevent
    personnel injury and/or equipment damage.
  • These dangers include personal injury from high
    temperature, escape of flammable fluid and
    impingement on hot surfaces resulting in a fire,
    displacement of breathable air, toxic gasses,
    projectiles from high pressure systems, wetting
    of electrical equipment, or inadvertent draining
    or venting of adjacent systems.
  • Specific requirements of onboard system and
    component operating and technical manuals should
    be observed.

5
Types of Barriers
  • When isolating piping for component repair or
    replacement, the type of pressure barrier for
    isolation is an important consideration.
  • Examples of allowable pressure barriers are
  • shut valves
  • blind (blank) unions or flanges
  • spectacle flanges

all of which shall be capable of withstanding the
system pressure and temperature during
performance of the maintenance evolution.
6
Types of Barriers
  • Valves equipped with internal or external bypass
    features must be checked to ensure that they can
    be positively secured to allow the valve to be
    used as a barrier.

For double disc gate valves with an internal
bypass, the valve would be used for isolation in
the direction for which it is designed to block
flow when shut.
For powered valves, the motive power shall be
disabled.
7
Types of Barriers
  • Gagged relief valves may be used as pressure
    barriers for maintenance downstream of the valve.

However, the system or equipment the relief valve
normally protects must be secured and
depressurized.
8
Types of Barriers
  • Control valves may be used as second pressure
    barriers provided the requirements in Appendix F
    of the Tag-out Users Manual are met.

9
Types of Barriers
  • Check valves may be used as isolation barriers in
    the hydraulic system return lines, when cutout
    valves are not installed in the return line. In
    this case, the check valve used for isolation
    should not be tagged.

10
Types of Barriers
  • Valves that seat due to differential pressure
    assisted by a spring may be used as isolation
    barriers, for example

Work upstream of a self-actuating relief valve
is protected from downstream pressure sources.
11
Types of Barriers
  • Valves used for throttling can be used as
    pressure barriers, but are subject to erosion.

Caution should be used when using throttle
valves as the single pressure barrier to ensure
that leakage does not adversely affect personnel
or equipment during the maintenance.
12
Types of Barriers
  • A valve backseat may be used as an isolation
    barrier.
  • Butterfly valves can be used as pressure barriers.

Caution should be used when suing butterfly
valves as the single pressure barrier to ensure
that leakage does not adversely affect personnel
or equipment during the maintenance.
13
Types of Barriers
  • Freeze seals may be used as isolation barriers.
  • Solenoid operated valves that fail shut, tend to
    seat with system pressure and do not have
    internal, unisolatable bypasses may be used as
    barriers for maintenance performed downstream in
    the direction in which pressure tends to seat the
    valve.

14
Types of Barriers
  • Do not use the following as pressure barriers
  • Lift, swing, or stop check valves seated by
    pressure only (except as identified in Appendix
    G, paragraph. 4.d. of the Tag-out Users Manual)
  • Ungagged relief valves
  • Feed regulating valves
  • Four-way valves (except as indicated in Appendix
    F of the Tag-out Users Manual)

15
Barrier Isolation Protection
  • To prevent inadvertent or accidental operation,
    or removal of barrier protection (e.g., valves,
    blanks, locking devices, etc.), all barriers used
    for maintenance shall be danger tagged, except
    check valves and surface ship temporary hull
    fittings/blanks/ flanges.

16
Barrier Isolation Protection
  • Disable and Danger tag all valve control devices
    associated with the barrier valve.

For example, if the control valve or an actuator
is electrically operated, remove and danger tag
the fuses from the circuit or disconnect and
danger tag the electrical connector so that the
control valve or actuator cannot be accidentally
energized.
When removal of fuses or disconnection of
electrical connector is not practical, the use of
a tag-out switch is an acceptable means of
isolation, except as prohibited in Appendix F of
the Tag-Out Manual.
If the control valve or an actuator is air
operated, shut and danger tag the air supply
isolation valve so that the control valve or
actuator cannot be accidentally operated by air.
17
Temporary Hull Fittings/Blanks
Barrier Isolation Protection
  • For temporary hull fittings/blanks/flanges
    installed outboard (waterborne or installed just
    prior to going waterborne) and used for
    maintenance isolation, a tether/lanyard will be
    attached to the hull fitting/blank/flange, run
    topside and securely fastened topside.

A test hose installed to a hull fitting/flange
may be used as the tether/lanyard for
fitting/flange identification.
At the topside attachment point the
tether/lanyard shall be labeled Hull Fitting
(Noun Name) Installed.
18
Barrier Isolation Protection
Temporary Hull Fittings/Blanks
Ships Force cannot independently verify by
direct observation the correct installation of
hull fittings/flanges or main ballast tank blanks
installed external to the ship and below the
waterline.
Tag-out of hull fittings/flanges or main ballast
tank blanks, below the waterline, shall be
conducted as follows
  • After the hull fitting/flange/blank is installed
    and tethered, a Danger Tag shall be placed on the
    tether.
  • The identification label affixed to the hull
    fitting/flange/blank by the divers shall be used
    by Ships Force and RA for tether identification.

19
Barrier Isolation Protection
Temporary Hull Fittings/Blanks
  • The Danger Tag shall indicate ____ hull
    fitting/flange/blank tether or ____ Main
    Ballast Tank blank tether, as appropriate for
    system/component identification.
  • The Danger Tag shall indicate attached to ship
    for position/condition of item tagged.

20
Barrier Isolation Protection
Temporary Hull Fittings/Blanks
  • Verify the hull fitting/flange/blank is on the
    correct hull penetration by venting the system
    inboard if possible.

If venting is not possible, some other method is
needed to ensure the blank is installed at the
correct location.
When using a cofferdam, once the system is
vented, equalization should not be allowed, to
prevent the cofferdam from loosening.
21
Barrier Isolation Protection
Temporary Hull Fittings/Blanks
  • NOTE The lanyard attaching, labeling and danger
    tagging of external temporary hull
    fittings/blanks/flanges does not apply to surface
    ships if the ship and the RA use WAFs to control
    the installation of the external
    fitting/blank/flange, the work protected by the
    fitting/blank/flange, and the removal of the
    fitting/blank/flange.

22
Barrier Isolation Protection
  • Freeze sealing equipment shall be caution tagged
    to ensure that such equipment remains operational
    as long as the freeze seal is required.

Caution tags shall be used on freeze sealing
equipment such as, but not limited to, valves,
compressor power supplies, quick-disconnects in
piping or tubing, and other equipment which, if
improperly or inadvertently operated, could
result in freeze seal failure.
The freeze seal shall be danger tagged once
established as a maintenance barrier.
23
Double Barrier Protection
  • Double barrier protection is required for
    isolation of
  • High temperature (200 oF or more)
  • High pressure (1000 PSI or greater)
  • All sea connected systems (except lines less than
    ½ inch NPS inboard of the backup valves)
  • All hull penetrations below the maximum
    anticipated waterline (except mechanical and
    electrical penetrations designed for single
    closure (e.g., shaft or cable penetrations, etc))
  • Fluids with a flash point below 200?F
  • Oxygen
  • Hazardous, toxic vapor (dry cleaning fluid,
    photo-chemical fluids and phosphate ester
    hydraulic fluid)

24
Double Barrier Protection
  • There shall be at least two pressure barriers
    between the maintenance area and any system
    medium/condition as listed previously.

Where possible, open a tell-tale drain valve
between the two pressure barriers to warn if the
upstream pressure barrier is leaking.
Do not remove a plug to provide a tell-tale
indication. Tell-tale drains are not required to
be tagged.
25
Double Barrier Protection
Sample Project- Clean and inspect 1 Heat
Exchanger
Isolations
SW-13
SW-15
SW-1
SW-32
SW-16
SW-34
SW-33
Do we have to? No. It really is a matter of
preference. For some, it is a bit more difficult
to see the proper isolation, while others feel it
provides a cleaner tag-out.
For the purposes of this example, 1 Heat
Exchanger is in a seawater system whose piping is
approximately 10 in diameter.
According to the preceding list of rules, in
order to open this heat exchanger for cleaning
and inspection, double barrier protection is
required.
First, follow the heat exchanger inlet and outlet
lines outward away from the heat exchanger noting
the first valve, in each line, which we come to.
In this case, the first valves we come upon in
each line are SW-13 and SW-15. So we mark those
and write them down in our isolations list.
At this point we have the heat exchangers first
isolations taken care of. However, double barrier
protection from each source of pressure is
required. So we must continue on...
Upstream of SW-13 the line branches and ends up
in two valves, SW-1 and SW-32. So, write those
two down. Now, that makes double barrier
protection from one direction.
As we follow the line downstream from SW-15 we
see that, once again, the line branches ending in
two valves, SW-16 and SW-34. Write those down,
now.
Good! Double barrier protection from both sides.
Now we can write up our tag-out, get it second
checked and hung, and get our work done. But
wait.
If we tag SW-33, we can eliminate tags on SW-1
and SW-16 and still achieve double barrier
protection.
2 Heat Exchanger cant be used anyway since
SW-34 is going to be tagged, so we can shift our
tags from SW-1 and SW-16 to SW-33 with no
adverse affects.
26
Double Barrier Protection
  • A single blank that is equivalent in design to
    the piping system in which it is installed (e.g.,
    material, thickness, gasket material, fasteners,
    torque requirements, etc.) may be used in lieu of
    double barrier protection.

27
Single Barrier Protection
If two barrier protection is not possible due to
system design or for other considerations, then
the Commanding Officer /Officer In Charge
permission shall be obtained for using single
barrier protection.
28
Single Barrier Protection
Sample Project- Clean and inspect 1 Heat
Exchanger
From the previous example, SW-16 and SW-34 can
not be used as isolations. This seawater system
is a critical system and the 2 Heat Exchanger
must remain in operation.
You should always attempt to get double barrier
protection wherever you can. However, sometimes
due to plant operations or system design that
isnt feasible.
So, as was previously discussed, we can use a
single barrier. Whenever single barrier isolation
is to be used and double is required, Commanding
Officers permission is required.
Once we have obtained this permission we can then
remove SW-16 and SW-34 from our tag list. This
results in the ability to perform our maintenance
and still use the 2 Heat Exchanger.
We still have to show protection for our work
site. So, instead of leaving SW-15 Shut, we tag
it Locked shut, using a valve locking device to
ensure the valve stays shut.
29
Single Barrier Protection
Sample Project- Clean and inspect 1 Heat
Exchanger
Since, we already have COs permission to go
single barrier to do the work. Why dont we just
lock shut SW-13. Then we wont have to hang two
other tags.
Remember, double barrier requirements are there
for your protection. You should only use single
barrier in its place where you positively must.
So, were going hang tags on SW-1 and SW-32. When
double barrier protection is required, use it
wherever you possibly can!
30
Single Barrier Protection
  • Where a single barrier is used in lieu of double
    barrier, a tell tale-drain valve shall be open
    (if system configuration

allows) to verify the integrity of the pressure
barrier. The single barrier shall always be
locked in the required position or continuously
manned to prevent inadvertent operation.
31
Single Barrier Criteria
  • Additional requirements that apply to the use of
    single barrier protection include
  • The integrity of the barrier is validated at
    expected conditions prior to being used for
    isolation.
  • If the valve is operated by either a mechanical,
    hydraulic or electrical actuator, a positive
    means to prevent inadvertent operation by this
    actuator shall be provided.

32
Single Barrier Criteria
  • Whenever single valve protection is authorized,
    consideration should be given to other forms of
    protection such as a first valve shut and a
    second valve open which
  • Can be quickly shut independent of the first
    barrier and
  • Is verified operable before being placed in
    service.

33
Single Barrier Protection
  • For liquid or gas systems not requiring two
    barrier protection, at least one pressure barrier
    shall be established between the maintenance area
    and the system liquid or gas.

34
Atmospheric Pressure Systems
  • In those cases where the liquid temperature is
    less than 200oF and remains at atmospheric
    pressure, such as in a vented tank, a barrier is
    not necessary for personnel protection if work
    is to be performed above the highest liquid level
    in the system.

A single barrier is required between a vented
piping system and the maintenance area if work is
to be performed below the liquid level in the
piping system or if flow could occur due to
relief valve venting or dumping system operation.
35
Isolation from Sea while in Drydock
  • Danger tagging valves for protection from sea is
    not required while in a dewatered drydock.
Write a Comment
User Comments (0)
About PowerShow.com
