Web Communities

1

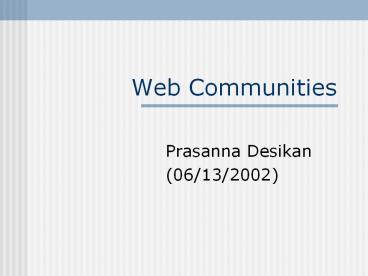

Web Communities

• Prasanna Desikan
• (06/13/2002)

2
Definition

• Web community
• Groups of individuals who share common interests,
  together with the web pages most popular among
  them.
• Web page collections with a shared topic.

3
Types of Communities

• Explicitly- defined.
• Communities that manifest themselves as
  newsgroups or as resource collections on
  directories such as Yahoo!
• Implicitly- defined.
• Communities that result from nature of
  content-creation of the web.

4
Terms and Definitions

• Directed Bipartite Graph A graph whose nodes
  set can be partitioned into two sets F and C,
  and every directed edge in the graph is from a
  node u in F to a node v in C.

5
Terms and Definitions

• Completed Bipartite Graph A bipartite graph that
  contains all possible edges between a vertex of F
  and a vertex of C.
• Core A complete bipartite sub-graph with at
  least i nodes from F and at least j nodes from C.

• In the web world, the i pages the contains the
  links are referred to as fans and the j pages
  that are referenced as centers.

6
Inferring Web Communities From Link Topology

• Community is a core of central authoritative
  pages linked together by hub pages.
• Identify communities corresponding to the
  principal and non-principal eigenvectors
  discovered by HITS.
• For communities on broad topics the grouping of
  pages discovered is relatively independent of the
  exact choice of root set.

7
Inferring Web Communities From Link Topology

• Findings on Structure of Communities.
• Robustness For broad topics, HITS produces
  stable, robust communities.
• Topic Generalization HITS tend to generalize
  topics that are not broad.
• Michael Jordan produces links to pages on MJ
  and his team.
• Dennis Ritchie produces links that reference to
  C Programming Language.

8
Inferring Web Communities From Link Topology

• Other Generalization HITS tends to converge on
  topics with greater density of linkage.
• E.g for a query on linguistics, the top
  authorities are focused on a sub-topic
  computational linguistics because of its
  greater density of linkage on web.
• Temporal Issues For obtaining long-term core
  of a topic, we can superimpose the results of
  HITS on the same topic, spaced-out several month
  periods.

9
Trawling the Web for Emerging Web Communities

• Trawling Systematic Enumeration of emerging
  communities from web crawl.
• Scan through a web crawl and identify all
  instances of graph structures that are indicative
  signatures of communities.

10
Trawling the Web for Emerging Web Communities

• Data Source A copy of web from Alexa.
• Pre-processing data.
• Identify potential fan pages (a page that has
  links to at least six different websites) out
  of 200 million pages around 24 million were
  extracted.
• Eliminate mirrors (out of 24 million it removed
  around 60 of pages.

11
Trawling the Web for Emerging Web Communities

• Prune by in-degree.
• Eliminate all pages that have an in-degree
  greater than a threshold value k. k is set as 50
  in the experiments.
• Iterative pruning.
• When looking for (i,j) cores any potential fan
  with out-degree smaller than j can be pruned and
  the corresponding edges deleted from the graph.

12
Trawling the Web for Emerging Web Communities

• Inclusion-exclusion pruning.
• Let c1,c2,..,cj be centers adjacent to a fan
  x.
• N(ct) neighborhood of ct, the set of fans that
  point to ct.
• x is a part of core if and only if the
  intersection of sets N(ct) has size at least i.
• Filter nepotistic cores.

13
Trawling the Web for Emerging Web Communities

• Evaluation of Communities.
• Fossilization 30 of communities were
  fossilized.
• A fossil is a community core not all of whose
  fans exist on the web today.
• Reliability Only 4 of the trawled cores were
  coincidental i.e a collection of fan pages
  without any cogent theme unifying them.

14
Trawling the Web for Emerging Web Communities

• Quality 56 were not in Yahoo as constructed
  from the crawl. And 29 were not in Yahoo at the
  time of the paper.
• This indicates identification of emerging
  communities by trawling.

15
Self Organization and Identification of Web
Communities

• Web community is defined as a collection of web
  pages such that each member page has more
  hyperlinks (in either direction) within the
  community than outside of the community.
• Approach Maximal Flow Minimal Cut framework.
• Benefits Focused crawling, automatic population
  of portal categories.

16
A Simple Community Identification Example
Figure Maximum Flow methods will separate the
two subgraphs with any choice of s and t that
has s on the left subgraph and t on the right
subgraph, removing the three dashed links.
17
Approximate Flow Community
18
Exact Flow Community
19
Exact Flow Community

• An artificial source s, is added with infinite
  capacity edges routed to all seed vertices in S.
• Each pre-existing edge is made bi-directional and
  rescaled to a constant value k.

20
Exact Flow Community

• All vertices except the source, sink, and seed
  vertices are routed to the artificial sink with
  unit capacity.
• A residual flow graph is produced by a maximum
  flow procedure.
• All vertices accessible from s through non-zero
  positive edges form the desired result and
  satisfy our definition of a community.

21
Sample Results From Community Identification
The scores are the total number of inbound and
outbound links that a web page has to other pages
that are also in the community.
22
Characterization of Communities
Table 3 The fifteen most significant text
features for each community, sorted in descending
order of the Kullback-Leibler metric.
23
Discovering Seeds of New Interest Spread From
Premature Pages.

• A method for discovering topics, which stimulate
  communities of people into earnest communications
  on the topics meaning, and grow into a trend of
  popular interest.
• Community is a group of people sharing some value.

24
Agora Method on Links

• Archive page - Page of highest rank according to
  Google in a community.
• Agora Pages - Pages linked from multiple
  archive-pages but are not in any community
  themselves are taken as novel topics attracting
  multiple communities, called agora-topic pages.

25
Agora Method on Links

• Step 1 A query representing users interest
  domain is entered to a search engine (Google
  here, obtaining 105 to 106 pages).
• Step 2 Communities, of pages obtained in Step 1,
  are obtained and archive-pages are selected from
  communities.

26
Agora Method on Links

• Step 3 Pages, not in the communities but linked
  from multiple archive-pages, are obtained as
  agora-pages. Having all obtained results by here,
  archive pages (black nodes), agora-pages (red
  nodes) and the links between them are visualized
  as in Fig.1.

27
Fig The output of Agora on Links, for domain
query Human Genome
28
Evaluation

• Stage 1. An interest domain is fixed, a group of
  people relevant to the domain gathered, and the
  domain-name is input as a query (e.g.
  information retrieval).
• Stage 2. The output graph adding real and fake
  red nodes, as if they all were really obtained as
  agora-pages, is shown to the subjects. That is,
  some red nodes, not really obtained, were added
  with red links to black archive-nodes. Subjects
  reported individual impressions and exchanged
  ideas in the group.

29
Sample Results

• Institutes in red were the ones who have data
  sources of human or mouse genomes, and is useful
  for researchers in other institutes to look at
  those data.
• 8 of the 12 red nodes were termed as
  interesting for thinking of future work by the
  subjects.

30
References

• 1D. Gibson, J. Klienberg, and P.Raghavan.
  Inferring web communties from link topology. In
  Proc. 9th ACM Conference on Hypertext and
  Hypermedia.
• 2Ravi Kumar, Prabhakar Raghavan, Sridhar
  Rajagopalan, and Andrew Tomkins. Trawling the web
  for emerging cyber-communities. In Proc 8th Int.
  World Wide Web Conf.,1999.
• 3 Gary William Flake, Steve Lawrence, C. Lee
  Giles . Efficient Identification of Web
  Communities. Sixth ACM SIGKDD International
  Conference on Knowledge Discovery and Data
  Mining.
• 4 Gary William Flake, Steve Lawrence, C. Lee
  Giles, Frans M. Coetzee. Self-Organization and
  Identification of Web Communities. IEEE Computer,
  35(3), 6671, 2002.

31
References

• 5 Naohiro Matsumura , Yukio Ohsawa , Mitsuru
  Ishizuka Discovering Seeds of New Interest
  Spread from Premature Pages Cited by Multiple
  Communities, 2001 International Conference on Web
  Intelligence.

32
Kullback-Leibler Metric

• Let p and q be probability distributions with
  support X and Y respectively. The relative
  entropy or Kullback-Liebler distance between two
  probability distributions p and q is defined as


Back
