ARISEVSOP2 Jim Ulvestad

1

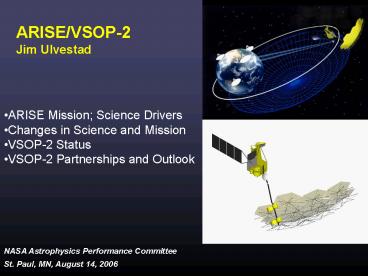

ARISE/VSOP-2Jim Ulvestad

• ARISE Mission Science Drivers
• Changes in Science and Mission
• VSOP-2 Status
• VSOP-2 Partnerships and Outlook

2
ARISE Mission

• Space Very Long Baseline Interferometry mission
• Proposed 25m antenna, operating at frequencies up
  to 86 GHz, in elliptical orbit with apogee height
  of 40,000 km
• Resolution better than 20 microarcseconds
• AANM cost estimate of 350 million
• Biggest technical challenge was to make the 25m
  aperture accurate enough to operate at 86 GHz
• Deployable or inflatable antenna?
• Planning assumed only 8 aperture efficiency at
  86 GHz

3
ARISE Science Drivers

• AANM
• Supermassive black holes and relativistic jets
• Maser sources in Milky Way and other galaxies
• Q2C
• What is the nature of dark energy?
• How do cosmic accelerators work and what are they
  accelerating?

4
Science Changes

• Massive black holes now more closely linked to
  galaxy evolution
• Magnetic fields increasingly viewed as being
  critical in acceleration and collimation of
  relativistic cosmic jets
• WMAP cosmology has greatly refined cosmological
  parameters, but finding more accurate value of H0
  is critical for removing degeneracies in
  determination of w, Om

5
WMAP Constraints on Om, O?

• WMAP alone constrains relation between Om and O?,
  but does not strongly constrain their absolute
  values
• Knowledge of H0 to better than 5 is critical

Spergel et al. 2006
6
Constraining w by Constraining H0
Spergel et al. 2006
7
AGN Unification (Antonucci ARAA 1993)

• Broad-line AGN (Type 1) if seen down the jet
  axis
• Narrow-Line AGN (Type 2) if seen from the side
• Many new SDSS Type II AGNs

• Peck, Taylor, Conway 1999

8
NGC 4258

• H2O megamaser emission associated with nuclear
  torus
• Direct measurement of BH mass of 39 million MSun
• Geometric distance of 7.4 Mpc
• Can we find distances further out in the Hubble
  flow, and determine the Hubble Constant to better
  than 3 accuracy?

9
Spectra of H2O Maser Disks to 100 Mpc
Braatz et al., in preparation (using GBT)
10
M87 Inner Jet
M87 Base of Jet 43 GHz Global VLBI Junor,
Biretta, Livio Nature, 401, 891
VLA Images
Resolution 0.?00033?0.?00012
Black Hole / Jet Model
VLBI Image
11
Where Most X-rays ?-rays Are Emitted
clouds
X-rays ?-rays
Invisible?
Radio core
12
Mission Changes

• ARISE was behind Constellation-X and LISA in NASA
  roadmaps
• No significant chance of flying ARISE in the next
  10-15 years
• JAXA has approved VSOP-2 as a full-scale
  scientific mission, with planned launch in
  February 2012
• 3.5 times the ground resolution for 22 GHz H2O
  masers
• At least 13 radio AGNs with resolution better
  than 200 Schwarzschild radii

13
Observing Parameters
14
VSOP-2 Status

• VSOP-2 approved as science mission by JAXA
• Strong budget limit of 100 million, not
  counting launch vehicle and some ISAS salaries
• Excellent development/planning process for the
  deployable antenna
• Heritage from ETS-VIII, to be tested later this
  year
• Growing East Asian VLBI community

15
Mesh Antenna Segment in Development
16
ETS-VIII Deployment Test

• ETS-VIII scheduled for launch in next six months
• ?/50 at 2.3 GHz
• Deployment mechanism the same as VSOP-2 antenna
• VSOP-2 will have additional on-orbit adjustment
  mechanisms

17
VSOP-2 Partnerships/Outlook

• Space VLBI inherently requires international
  partnerships, and needs 3 primary U.S.
  contributions
• Worldwide tracking stations needed to bring down
  1 Gbps science data in real time
• Few-cm orbit determination needed for water maser
  science and high-frequency observing
  (GPSaccelerometer)
• Worldwide ground radio telescopes needed to
  provide significant imaging capability
• U.S. telescopes are dominant for the
  high-frequency science (22 and 43 GHz)
• U.S. telescopes will provide most ground
  baselines of at least a few thousand km

18
VSOP-2 observation
2 Gbps/Max
PC DISK
FEDEX
1 Gbps
Correlator
IP/Network
Total Data Size 2 Gbps x observing time x
Number of Antenna
IP/Network
Typical Observation Observing time 12
hours Number of antennas 11
121.6 T byte / 1 observation (12 h)
19
VSOP-2 Science Outlook

• VSOP-2 is a huge observational step toward the
  capabilities envisioned for ARISE, and has the
  potential to deliver significant results on its
  primary science goals
• Determine H0 to 3-5 (depending on systematic
  errors), to break degeneracy in cosmology models
• Image changes in the flaring blazars seen by
  GLAST
• Image jet collimation within 200 Schwarzschild
  radii of a number of nearby black holes
• U.S. contribution to VSOP-2 will greatly improve
  the fundamental science of the mission, provide
  scientific access to the U.S. community, and
  fulfill the AANM recommendation, for a small
  fraction of the ARISE cost
