Title: Plan of the course


1

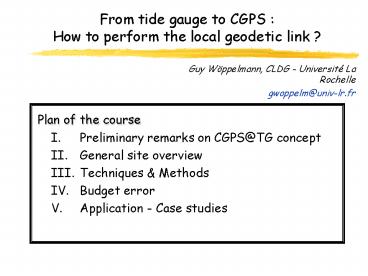

From tide gauge to CGPS How to perform the
local geodetic link ?
Guy Wöppelmann, CLDG - Université La
Rochelle gwoppelm_at_univ-lr.fr
  • Plan of the course
  • I. Preliminary remarks on CGPS_at_TG concept
  • II. General site overview
  • III. Techniques Methods
  • IV. Budget error
  • V. Application - Case studies

2
Preliminary remarks on CGPS_at_TG concept
  • CGPS_at_TG - What does it mean ?
  • Continuous GPS positioning of tide gauges in a
    well defined global reference frame (ITRF, see
    IAG Recommendation).
  • CGPS_at_TG - What is it for ?
  • Separate sea level rise from vertical crustal
    motion
  • Determine the vertical velocity of the land
    underlying the tide gauge few tens of mm/yr over
    few decades
  • Calibration of satellite altimeters
  • Determine the exact position of the sea-level
    measured by the tide gauge in the same frame as
    the space altimeter 1-2 cm
  • Other applications Hydrography...
  • Provide permanent and/or real-time access to
    tidal datum lt 5 cm

Section I Preliminary remarks...
3
IAG Resolution, Vienna 1991
  •  The International Association of Geodesy
    recommends
  • that groups making highly accurate geodetic,
    geodynamic or oceanographic analysis should
    either use the ITRS directly or carefully tie
    their own systems to it,
  • that for mapping, navigation or digital databases
    where sub-metre accuracy is not required, WGS 84
    may be used in the place of ITRS.

Section I Preliminary remarks...
4
Section I Preliminary remarks...
5
CGPS_at_TG and Collocation Concepts
  • Why these considerations ?
  • CGPS and TG are a priori not physically linked
  • The distance results from a large variety of
    parameters
  • (see M.Bevis et al, 2002)
  • Which criteria to adopt ?
  • Geographical (distance)
  • Technical (precision)
  • Logistical (practical)
  • An attempt to answer...
  • Technical Geodetic tie with an accuracy of
    about 1 mm ? Distance (precision is often
    function of distance)
  • Logistical ? Distance (common sense...)

?10 km, a more or less arbitrary upper limit...
Section I Preliminary remarks...
6
Application Bathymetric Survey
1. Seafloor Topography
2. Sounding reduction
Section I Preliminary remarks...
7
Scientific Objectives Technical Constraints
  • Sky view
  • Multipath
  • Power supply
  • Communication
  • Security
  • Site stability
  • Local geology and topography
  • Monumentation
  • GLOSS-LTT(Long Term Trend)
  • 0.3 - 0.5 mm/yr
  • GLOSS-ALT(Altimetry calibration)
  • 1-2 cm

M.Bevis et al, 2002 Technical issues and
recommendations related to the installation of
continuous GPS stations at tide
gauges http//imina.soest.hawaii.edu/cgps_tg/intr
oduction/index.html
Section I Preliminary remarks...
8
General Site Overview
Section II General site overview
9
Techniques and Methods
  • Differential Leveling
  • Trigonometric Leveling
  • Differential GPS ( Levelling)

Section III Techniques Methods
10
Principle of differential leveling (1)
Backsight
Foresight
AV
AR
HB
HA
DHHB-HAAR-AV
Section III Techniques Methods
11
Principle of differential leveling (2)
  • Single reading accuracy
  • 0.02 to 0.03 mm with Precise Level (sight
    lengths under 50 m)
  • 0.2 to 0.3 mm with Digital Level (sight up to
    100 m)
  • 2-3 mm with Builders/Engineers Level
  • Note First order standard precision between
    national leveling benchmarks about 2?D, with D
    in km

Section III Techniques Methods
12
Differential Leveling - Error Sources
  • Sources
  • Non verticalité des mires
  • Erreurs de talon de mire
  • Systematic errors due to operator (reading...)
  • Collimation Error
  • Error due to Earth Curvature
  • Error due to Refraction
  • Methodology - Rigorous procedures before and
    during observations
  • Level and staff calibration
  • fore - and backsights of equal length (less than
    30 m)

Section III Techniques Methods
13
Error Detection and Reduction
  • Rigorous observation and computation procedures

YES
YES
NO
NO
  • Simple rules based on the level of tolerance over
    closures and forth-and-back lines
  • DNA-gtB DNB-gtA
  • DNA-A0

For national leveling survey about 2 mm per
kmFor site stability monitoring, about 0,5mm per
km
Section III Techniques Methods
14
Principle of trigonometric leveling
DH HB-HA ha Dp . sin(i) - hv
  • Advantages
  • Faster over long distances
  • Sight lengths up to 600 m and higher height
    differences
  • Drawbacks
  • Less precise
  • Logistic

Section III Techniques Methods
15
Error Budget
Section IV Error Budget
16
Application - Case studies
  • Brief Guide
  • Application aimed at ?
  • Precision
  • Time span
  • Local Geology and Site stability
  • How often
  • Local Topography
  • What technique and method
  • Funding
  • What can I actually do
  • and How long should I wait to get scientific
    results
  • Lets go for the case studies...

Section V Application - Case studies
17
Marseille Sea Level Station (IGN)
Acoustic tide gauge since 27/10/1998
16/07/1998
Trimble 4000 SSI
Since 03/02/1885...
No PC on site... ? Modem and daily remote data
retrieval
18
La Rochelle Sea Level Station (La Pallice)
  • Observations
  • 1863 - 1874
  • 1956 - 1963
  • 1963 - 1980
  • 1997 - ...

Since 23/11/2001
Less than 100 m
  • Radar Tide Gauge (SHOM)
  • GPS Ashtech ?Z (CLDG)
  • Monumentation and local connections (IGN, 2001)
  • Logistical Support Stilling well, Power
    supply... (DDE)

19
Brest Sea level Station
  • Observations
  • 1711 - 1716
  • 1778 - 1792
  • 1806 - 1835
  • 1846 - 1856
  • 1961 - 1943
  • 1952 - ...
  • Acoustic tide gauge (SHOM)
  • GPS Trimble 4000 SSI (IGN)
  • Monumentation (IGN)
  • Local ties(IGN 1999, SHOM 2002)
  • Logistical Support (SHOM)

Since 31/10/1998
Somewhere here (350 m)
20
Ajaccio Sea Level Station
  • Acoustic tide gauge (SHOM)
  • GPS ashtech ZXII (IGN)
  • GPS monumentation and local connection (IGN,
    2000)
  • Stilling well (OCA)
  • Logistical Support (Naval Base)

Since 20/01/2000
Distance separating GPS and TG 500 m
  • Sea level Observations
  • 1981 - 1982
  • 1996 - 1997
  • 2000 - ...

21
Kerguelen Sea Level Station
  • Pressure tide gauge (LEGOS)
  • GPS Rogue SNR 8 (CNES)
  • Monumentation (IFRTP)
  • Local ties(IGN 1994, AUSLIG 1995)

16/11/1994
Distance is about 3 km from TG
