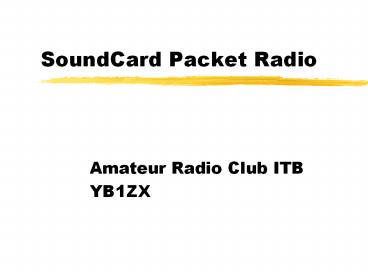

SoundCard Packet Radio

1
SoundCard Packet Radio

• Amateur Radio Club ITB
• YB1ZX

2
References

• http//home.pages.de/flexnet/
• http//www.afthd.tu-darmstadt.de/flexnet/index.ht
  ml
• ftp//ftp.afthd.tu-darmstadt.de/pub/flexnet/3.3g/

3
What is Flexnet?

• PC based packet radio
• Use SoundCard as modem!
• Run on Windows95 / 98.
• Written by Gunter Jost, DK7WJ from Flexnet Gruppe
  Darmstadt, Germany.
• Http//home.pages.de/flexnet/

4
(No Transcript)
5
Devices drive by Flexnet

• Baycom Modem 1200bps AFSK
• Baycom Modem 9600bps FSK
• TNC2 with 6PACK EPROM
• SCC Modem Card
• SoundCard modem (PSA Chipset, SB / ESS).
• Etc ..

6
Preparation
7
Minimum Hardware Reqd

• PC 486 DX2
• non-PnP SoundCard compatible with SoundBlaster
  WSS.
• Radio Transceiver (VHF / UHF).
• PTT Circuit

8
Minimum Software Reqd

• Windows95
• PC/Flexnet with SoundCard modem driver.

9
Where to get it?

• http//www.afthd.tu-darmstadt.de/flexnet/index.ht
  ml
• ftp//ftp.afthd.tu-darmstadt.de/pub/flexnet/3.3g/

10
Instalation
11
System
12
Profile
13
SC
14
(No Transcript)
15
(No Transcript)
16
config.sys
17
During Bootup Ull see ..
18
PTT Circuits
19
Via COM Port
20
Via Printer Port
21
Via Game Port
22
(No Transcript)
23
Instalation Test
24
During Win95 Startup ..
25
FlexNet Tools

• Trace
• Parameter
• AX.25 routes
• AX.25 tree view
• IP routes

26
(No Transcript)
27
FlexNet Parameter
28
FlexNet AX.25 Routes
29
FlexNet AX.25 Route Tree
30
Diagnostics
31
Diagnostics

• Shell to DOS
• run SMDIAG.EXE from FlexNet directory

32
(No Transcript)
33
(No Transcript)
34
Check Link Layer ..
35
Check AX.25 Connection

• BCT.EXE ltcallsigngt
• Esc (C)onnect ltgate-callsigngt

36
(No Transcript)
37
(No Transcript)
38
TCP/IP Setup ..
39
TCP/IP Setup

• Control Panel -gt Network -gt Add -gt Adapter -gt
  Have Disk
• Click Browse -gt FlexNet Directory
• FlexNet IP -gt AX.25
• Click OK
• Control Panel -gt Network -gt Add -gt Protocol -gt
  Microsoft -gt TCP/IP

40
Net Setup
41
Add Adapter
42
Browse FlexNet disk/folder
43
IP Setup
44
Gate Setup
45
DNS
46
IP Route
47
Check InterNet Route
48
Check InterNet Route

• C\WINDOWSgtping ltIPdestinationgt

49
(No Transcript)
50
(No Transcript)
51
Ready to go ..
52
Internet Application

• Microsoft Mail
• Eudora
• Pegasus Mail
• all Internet application teoritically can be used
  but it is slow through radio ..

53
