Title: Critical Design Review VST Vigilant Sensing Technologies


1

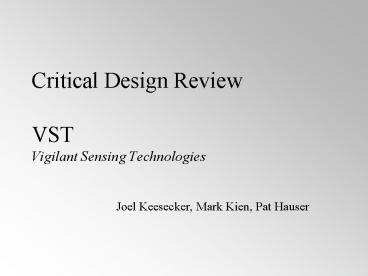

Critical Design Review VSTVigilant Sensing
Technologies
  • Joel Keesecker, Mark Kien, Pat Hauser

2
Outline
  • System Description and Diagrams
  • Status Update
  • Schematic
  • Power Subsystem
  • Sensor Interface
  • Firmware and Software
  • Division of Labor
  • Schedule Deliverables
  • Parts List and Budget
  • Q A

3
System Description
  • Modular and expandable sensor network utilizing
    RF and power-line communication

4
Status Update
  • MCU/RSU
  • Power system design 80 complete
  • Schematic under development
  • Sensors
  • Generic interface schematic complete
  • Embedded Software
  • Operation states and sub-modules identified
  • GUI
  • Visual structure and layout
  • COM port communication
  • System
  • System command set developed

5
RSU/MCU Module Diagram
6
Board Schematic
7
MaxStream Xbee Series 2
  • 2.4 GHZ
  • Up to 250Kbps
  • UART Interface
  • 2mW Transmit Power

8
Yitran IT800D-SPIM
  • DCSK (Differential Code Shift Keying)
  • Hardware Forward Error Correction
  • Collision Avoidance
  • Up to 7.25Kbps
  • UART Interface
  • Arrived Yesterday

9
Prototyping
  • Plan to make simple breakout board with MAX233
    and line coupling components to interface PC
    directly with XBee module and SPIM.
  • Test basic functionality and config
  • Aide software development

10
Power System Specifications
  • Wide load variation regulated supply
  • 3.3V Load Variation 52 mA to 402 mA
  • 12 V Load Variation 50 mA to 260 mA
  • Uninterrupted operation (All modules)
  • High efficiency 3200mAh Li-Ion battery
  • Integrated inline charger
  • Worst case efficiency is 50

11
Power System Block Diagram
12
Sensor - Types
  • Motion Sensor
  • Powered from single 3.3 V supply.
  • Produces an interrupt.
  • Cell Phone Detector
  • Powered from single 3.3 V Supply.
  • Produces a V/dB output of the power level
  • Temperature Sensor
  • Located on sensor I/F board
  • Data taken transferred serially over SPI
    interface.

13
Sensor Interface Features
  • Generic sensor interface for most sensors
  • DIP switch to identify sensor type and ID
  • Generates interrupt based on analog level
  • Noise immunity provided by coax transmission lines

14
Sensor Interface
15
Embedded S/W - States
  • Initialization
  • Configure profile
  • Run
  • Update
  • Error

16
Embedded Software - Modules
  • Read sensor id/type
  • Check In
  • Set time/date
  • Store test profile
  • Configure profile
  • Check profile status
  • Store data record
  • Configure interrupts
  • Transmit data record
  • Receive data record
  • Configure modem
  • Error handler
  • Check charge level
  • Read sensor analog
  • Read sensor digital
  • Update LCD
  • Update LEDs
  • Send system config
  • Terminate profile
  • Store system config
  • Configure timeouts
  • Wait and listen
  • Command interpreter

17
Embedded S/W High Level Execution
18
Embedded S/W Error Handler
19
VST1000 - Data Tab
20
VS1000 - Sensor Status Tab
21
VST1000 - Configuration Tab
22
VST1000 - Background Process
23
Division of Labor
Pat Hauser Joel Keesecker Mark Kien
Primary GUI Development PC Interface Embedded Software Primary RSU/MCU Board Development Research Primary H/W Testing Sensor Development Embedded Software Project Manager Power Supply Design
Secondary Research Testing Secondary Embedded Software Power Supply Design Testing Secondary Circuit Design
All Documentation All Documentation All Documentation
24
Schedule Overview
25
Schedule cont.
26
Schedule cont.
27
Schedule cont.
28
Milestone 1
  • Sensors
  • 2 of 3 sensors tested and working
  • MCU/RSU
  • Interface board complete
  • Rev1 Board populated
  • Power system operational
  • Firmware
  • Able to communicate between Host PC and
    development micro-controller
  • Host PC
  • COM port communication working
  • Data viewer tab done

29
Milestone 2
  • Sensors
  • Ready for integration
  • MCU/RSU
  • Unit testing complete ready for system
    integration
  • Firmware
  • Module testing complete
  • Host PC
  • GUI done but not integrated into system

30
Expo
  • Demonstrate complete system functionality
  • All pieces integrated
  • Documentation complete

31
Parts List
32
Questions?
