Title: Implementation of G.729 algorithm on TI

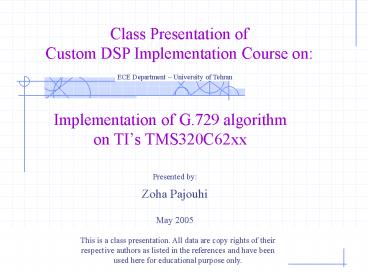

1
Implementation of G.729 algorithm on TIs
TMS320C62xx
Zoha Pajouhi
2
Outline
  • What is G.729?
  • How Does it work ?
  • ????Acquaintance with C62xx processors
  • Steps to be taken for implementation
  • Optimizations required for implementation
  • Implementation of the algorithm
  • Summary Conclusions

3
What is G.729 ?
  • G.729 is a speech coding technique
  • Most important usage is in VoIP
  • Compress speech signal from 64kbps to 8kbps
  • It uses the CS-ACELP algorithm
  • CS-ACELP stands for conjugate structure algebraic
    code excited linear prediction
  • Has different annexes G.729 Annex A , G.729
    Annex B , G.729 Annex D , G.729 Annex E .
  • Different in difficulty of the algorithm
    ,utilizing voice activity detection , reduced bit
    rates at the cost of lower quality vice versa
  • I discuss implementing G.729 Annex A

4
How Does G.729 Work ? (1)
  • Uses input frames of 10ms which is equal to 80
    samples
  • Each frame has two subframes of 5ms
  • The idea of the algorithm is to predict the next
    coming signals by means of linear prediction .
  • It also uses statistical data to distinguish the
    resemblance of the signal to special signals in
    its code book
  • Exact signal variation is irrelevant to our
    discussion .

5
How Does G.729 Work ? (2)
  • These operations are performed once per frame
  • Pre processing scales down the signal by a
    factor of 2 , passing from a HP filter.
  • LP (linear prediction) analysis Uses linear
    prediction to model the signal , the LP
    coefficients are converted to LPC coefficients
    for less sensitivity to quantization noise .

6
How Does G.729 Work ? (3)
  1. Quantization LPCs are quantized and used
    throughout the rest of the algorithm .
  2. Open-loop pitch analysis pitch analysis is too
    difficult , this part gives us a rough estimation
    of the pitch

7
How Does G.729 Work ? (4)
  • These operations are performed twice a frame or
    once per subframe
  • Closed-loop pitch analysis Determines exact
    pitch delay through a closed loop
  • Fixed codebook search computes the resemblance
    of the signal to the different codes in the
    codebook is used for consonant sounds
  • Adaptive codebook search Is the same as fixed
    codebook except for it is for nonconsonant sounds
    .

8
How Does G.729 Work ? (5)
  • The bit allocation is as follows

9
Why use DSP processors ?
  • Complex long calculations in speech coding
    algorithms
  • Short design period
  • Lead to using DSP processors instead of custom
    hardware design
  • Different DSP processors available floating and
    fixed point processors usually trade off in price
    vs. precision.

10
DSP processor
11
Acquaintance with DSP C62xx processors
  • 150-250 MHz clock
  • 8 instructions/clk
  • 1200-2000 million instructions/s (MIPs)
  • 8 , 16 32 bit data manipulation better memory
    access
  • Low power
  • VLIW code structure ,6 ALUs ,2 multipliers
  • 40-bit mathematic function
  • Saturation and normalization blocks
  • On-chip Ram , etc.

12
Steps to be taken for implementation
  • System simulation analysis Matlab or C or C
    is usually used .
  • Simulation of the implementation on the processor
    one can make different optimization choices
    according to the processor being used .
  • Optimization will be discussed later
  • Conversion to processor assembly

13
Optimization
  • Different issues should be considered
  • Processor independent issues
  • Locating independent instructions between two
    dependant ones to use parallelism
  • Optimized usage of registers
  • Loop folding/unfolding .
  • Folding for reduced code memory
  • Unfolding for reducing loop overhead
  • Using pointers instead of arrays

14
Optimization
  • Processor dependant issues
  • Substituting special functions instead of
    assembly e.g. saturation has got a special
    instruction doesnt need to be rewritten .
  • Reading 32 bit data instead of 16 bit in 16 bit
    operations to reduce memory access time
  • Pipelining the algorithm sometimes done by the
    design software sometimes not e.g. the inner
    loops are pipelined but not the outer ones.
  • Using hardware over flow bit , not supported in
    C6000 series .

15
Implementation of the algorithm
  • The multichannel system can run more than one
    algorithm at the same time.
  • Any algorithm compliant with the eXpress DSP
    Algorithm Standard (xDAIS) is capable of
    multichannel processing.
  • An xDAIS-compliant algorithm requires three
    functional modules
  • initialization, freeing and kernel.
  • The kernel module performs the algorithm
    processing while
  • the initialization and freeing module
    initializes/frees the algorithm context data.

16
Framework initialization
  • Initialize context data and store to the desired
    memory location.
  • The system repeatedly calls an algorithm/algorithm
    s until all the frames have been processed

17
Algorithm implementation
  • The G.729 speech encoder is divided into five
    submodules
  • Submodule 1 contains pre-processing, the LP
    analysis and LPC to LSP conversion ,including
    Pre_Process(), Autocorr(), Lag_window(),
    Levinson() and Az_lsp().
  • Submodule 2 calls Qua_lsp() to conduct LSP
    quantization.
  • Submodule 3 generates the interpolated LPC
    parameters, computes weighted speech, and finds
    the open-loop pitch, including Int_qlpc(),
    Int_lpc(), Weight_Az(), Residu(), Syn_filt() and
    Pitch_ol().
  • Submodules 1 through 3 are for frame processing
    and should be done once per frame. Submodules

18
Algorithm Implementation
  • Submodule 4 performs the closed-loop fractional
    pitch search and the adaptive codebook search,
    calling Pitch_fr3(), Enc_lag3(), Pred_lt_3(),
    Convolve() and G_pitch().
  • Submodule 5 performs the innovative codebook
    search and filter memory update, calling
    ACELP_Codebook(), Corr_xy2(), Qua_gain() and
    Syn_filt().
  • 4 and 5 are for subframe processing and should be
    repeated twice per frame

19
Data Memory requirements
  • The data memory is divided into three groups
  • Context data The context data are the static
    variables and arrays with values that must be
    kept from one frame to the next.
  • Tables The constant tables are sorted into the
    G729_TABLES ,these tables contain different
    constants needed for the algorithm
  • Local variables and arrays The local variables
    and arrays are stored in the stacks to be simply
    used when the algorithm is implemented .

20
Summary Conclusion
  • The G.729 standard is a popular choice for
    applications, such as VoIP, that require
    efficient use of bandwidth and good speech
    quality.
  • This standard has a good balance of bit-rate and
    frame size, producing acceptable speech quality
  • The TI DSP processors are capable of performing
    the algorithm
  • Although implementation seems simple but there
    are various issues to be considered .

21
References
  1. ITU-T G.729 Annex AReduced Complexity 8 kb/s
    CS-ACELP Codec for Digital Simultaneous Voice and
    Data , Redwan Salami, Claude Laflamme, Bruno
    Bessette, and Jean-Pierre AdoulUniversity of
    Sherbrooke , IEEE Communications Magazine
    ,September 1997
  2. CODING OF SPEECH AT 8 kbit/s USING
    CONJUGATE-STRUCTURE ALGEBRAIC-CODE-EXCITED
    LINEAR-PREDICTION (CS-ACELP) , ITU-T
    Recommendation G.729 , (03/96)
  3. G.729/A Speech Coder Multichannel TMS320C62x
    Implementation , Chiouguey Chen ,Xiangdong Fu ,
    TI Application Report SPRA564B - February 2000
  4. TMS320C6211, TMS320C6211BFIXED-POINT DIGITAL
    SIGNAL PROCESSORS ,AUGUST 1998 ,REVISED MARCH
    2004 ,TI corp. Datasheets
