Gzim Ocakoglu European Commission DG Enterprise

1
Turkey IDA Info-Day PM Session, September 25, 2003

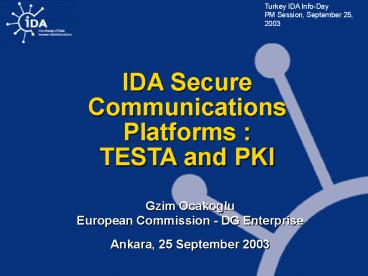

IDA Secure Communications Platforms TESTA and
PKI

• Gzim OcakogluEuropean Commission - DG Enterprise
• Ankara, 25 September 2003

2
Outline

• TESTA at a glance
• Sectoral projects using TESTA
• What is TESTA? How to connect ?
• TESTA today
• The PKI service
• The future of TESTA

3
TESTA at a glanceVocabulary...
4
TESTA at a glanceBenefits, Contractors, budget

• Secured telecommunications services with
  warranted Service Level Agreements (SLA)
• Network service and generic services delivered by
  Equant
• Support services (advice, help desk) provided by
  Unisys
• Duration of the contract until 2004
• Global potential value 28,5 million Euro

5
Sectoral Projects using TESTA

• Employment and Social Affairs
• EURES
• TESS
• Agriculture
• CATS/STATEL
• Transport
• Care II
• Fisheries
• Fides
• Regional Policy
• Structural funds (SFC)
• Health and consumer protection
• Eudra projects
• Euphin

• Justice and Home Affairs
• EURODAC
• Trade
• SIGL
• Statistics
• Datashop
• Statel
• Financial Intelligence
• FIUNET
• Humanitarian aid
• HOLIS (14 points)
• General applications
• IntraComm
• Circa

• New users coming soon .. - Justice and Home
  Affairs (VISA,SIS II) - Environmental
  protection (PROCIV NET) - Energy and Transport
  (SafeseaNet, TachoNet) - ...

6
What is TESTA ?. . . How to connect ?
7
TESTA principles

• Trans European Services for Telematics between
  Administrations
• IP protocol on MPLS
• Separation from the Internet
• Registered but non-Internet routable address
  range
• Private domain-names (eu-admin.net)

8
TESTA a domain-based approach
9
TESTA a domain-based approach
10
Generic services
11
Architecture 62.62 addressing NAT
12
TESTA architecture DNS
bxl-vpn.cec.eu-admin.net A 62.62.69.14
care.eu-admin.net A 62.62.70.22
curia.webmail.eu-admin.net A 62.62.71.250
emcdda.eu-admin.net A 62.62.81.166
emea.eu-admin.net A 62.62.13.83
europaplus.eu-admin.net A 62.62.70.12 europarl-
ns.eu-admin.net A 62.62.72.96 nap01.dac.lu.eu-adm
in.net MX 62.62.0.17
Spain
13
Architecture DNS how it works
www.ai.mit.edu
14
Architecture DNS how it works
testa.eu-admin.net
Server
Local DNS Slave of eu-admin.net DNS
15
Connected Countries

• ? Luxembourg
• ? Netherlands
• ? Austria
• ? Portugal
• ? Finland
• ? France in the process
• ? Sweden in the process
• ? Iceland
• ? Norway

• ? Belgium
• ? Denmark
• ? Germany
• ? Greece
• ? Spain
• ? Ireland
• ? United Kingdom
• ? Italy

16
Connected Acceding Countries
? Czech Republic - 05 06 2003 ? Estonia - 30 06
2003 ? Malta 25 08 2003 ? Poland 27 06 2003 ?
Slovenia 24 04 2003
? Cyprus to be connected end of Sept 2003
? Slovakia in the process
? Hungary in the process
17
Connected EU institutions

• ? Council of the European Union
• ? European Parliament
• ? European Commission
• ? Court of auditors
• ? Court of Justice
• ? European Economic and Social Committee

• ? Committee of the regions
• Expected
• ? European Investment Bank

18
Connected EU agencies

• ? CEDEFOP European Centre for the Development of
  Vocational Training
• ? EUROFOUND European Foundation for the
  Improvement of Living and Working Conditions
• ? EEA European Environment Agency
• ? ETF European Training Foundation
• ? EMCDDA European Monitoring Centre for Drugs and
  Drug Addiction
• ? EMEA European Agency for the Evaluation of
  Medicinal Products
• ? OHIM Office for Harmonisation in the Internal
  Market (Trade Marks and Designs)
• ? EU-OSHA European Agency for Safety and Health
  at Work
• ? CPVO Community Plant Variety Office
• ? CdT Translation Centre for the Bodies of the
  European Union
• ? EUMC European Monitoring Centre on Racism and
  Xenophobia
• ? EAR European Agency for Reconstruction
• ? EUROJUST

19
PE
Initial ArchitectureSite install
20
PE
CE
ArchitectureSite installPhase 1
CE
IPSEC TUNNEL
NAT
21
PE
CE
ArchitectureSite installPhase 2
IPSEC TUNNEL
CE
NAT
22
Back-Up
Current ArchitectureSite install
IPSEC TUNNEL
NAT
23
Site location

• Concentration point for national agencies
• Security (physical protection, site security
  officer)
• SLA (availability, helpdesk)
• In function of projects of immediate interest
• Sectoral projects
• ...

24
Cost sharing

• All costs covered by IDA for
• National administrative networks
• EU institutions and EU agencies
• Cost sharing for
• Direct to TESTA connected local administrations
• Back-bone costs are covered by IDA
• Local loop costs not covered by IDA (Leased line,
  router, monitoring, installation)

25
TESTA how to connect
Request connection
Request contacts
Send contact info Site info
Request installation
Send technical questionnaire start installation
Send technical data ( Unisys assist)
Site configuration test Request
acceptance Invoice
Acceptance
Payment
26
Sectoral request for direct TESTA link
Request connection
Request for possible integration national
network request price connection
Price Offer
Inform sector assistance
YES
NO
Inform sector
Order direct link
27
TESTA today
28
Activities on Network Extension

• Connect national networks in all Member States
• France
• Sweden
• Connect Acceding and Candidate Countries
• Integrate new users
• Environmental protection (PROCIV NET)
• Energy and Transport (SafeseaNet, TachoNet)

29
Activities on Security Enhancements
Bulgaria Info-Day PM Session, April 15, 2003

• On the Eurodomain
• Add line-encryption
• Prepare for TESTA security accreditation
• For the border to local domains
• Formulation of general security framework
• Prepare for accreditation of the TESTA LDCPs
  (Local Domain Connection Points)

30
Activities on Quality Enhancements

• On TESTA services and TESTA environment
• Enhance resiliency of generic services
• Portal and newsletter
• Workbook and applications guidelines
• With end to end approach
• Promote SLAs in local domains through TESTA MoU

31
Resiliency Component

• Primary Site
• Managed Resilient Firewall
• Managed SMTP Messaging Service
• Managed Intranet DNS
• 99.9 Monthly Service Availability (99.5 on
  mailbox hosting)
• Secondary Site
• Managed Firewall
• Managed SMTP Messaging Service
• Managed Intranet DNS
• 99.8 Monthly Service Availability (99.5 on
  mailbox hosting)
• Management and Support 365x7x24
• Planning was impacted by the findings of the
  Security Assessment and the Encryption
  requirements. Implementation is planned during
  the course of the 2nd Quarter 2003.

32
Resiliency
33
(No Transcript)
34
The PKI Service
35
The IDA PKI project

• Objectives of the Public Key Infrastructure (PKI)
• ready to use by all networks of the IDA programme
• adaptable or extensible to the specific
  requirements of some networks
• enable the members of a user community to access
  other IDA networks with the same certificate
  (subject to access rights control)
• Set-up steps for each user community
• requirements analysis
• definition of organisation and services
• service set-up
• routine management of the infrastructure

36
Where can networks use the IDA PKI ?

• Web-based applications
• protection of web-based information repositories
  and client/server communications
• Secure messaging
• secure e-mail
• electronic signatures
• authentication
• integrity
• confidentiality

37
TESTA the future
38
TESTA post 2004 - Objective

• To define what TESTA will become after 2004 as an
  IDA communication platform
• To define the needs of communication at the
  European level
• the growing need for the exchange of information
  between European administrations
• the growing need of a secure and resilient
  platform

39
TESTA post 2004 Working method

• TESTA Steering Committee
• Participants IDA, EC DI, Major Sectors (DG JAI,
  DG TAXUD), the Council,
• TESTA Expert Group Meetings
• The group will meet 2 or 3 times and will give
  regular feedback to the TAC WHAM and the TAC
• previous meetings held on 10/12/2002, 09/09/2003
• next meeting foreseen on 01/10/2003
• An Info-Day with private sector in 4Q2003

40
Further information

• TESTA web site
• http//testa.eu-admin.net (via TESTA access)
• IDA web site
• http//europa.eu.int/ISPO/ida/
• TESTA CIRCA interest group
• http//forum.europa.eu.int/Members/irc/ida/testa/h
  ome (restricted access)
• IDA project management
• European Commission, DG Enterprise D.2
• Entr-IDA_at_cec.eu.int
