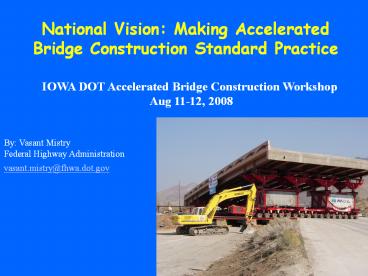

National Vision: Making Accelerated Bridge Construction Standard Practice

1
National Vision Making Accelerated Bridge
Construction Standard Practice
IOWA DOT Accelerated Bridge Construction Workshop
Aug 11-12, 2008
By Vasant Mistry Federal Highway
Administration vasant.mistry_at_fhwa.dot.gov
2
Topics

• Accelerated Bridge Construction
• Standardizing Prefabricated Bridge Elements and
  Systems (PBES)
• A 6 Minute Video of Pier Construction using
  Prefabricated Columns and Caps
• Available Tools and Resources

3
Accelerated Bridge Construction

• is to build the bridge first before you set
  cones,
• then quickly move it into place like in hours
  or a weekend!

4
Standardizing Prefabricated Bridge Elements and
Systems
5
Precast Abutments
6
Precast Abutments
7
Precast Piers
8
Precast Piers
9
Precast deck on precast concrete girders
10
Precast Decks on Steel Framing
11
Precast Decks
12
FRP Decks
13
Total Bridge Prefabrication
14
Total Bridge Prefabrication
15
Superstructure Prefabricationwith Continuity
16
Superstructure Prefabricationwith Continuity
17
Retaining Walls

• Mechanically Stabilized Earth Walls
• Precast Gravity Walls
• Precast Cantilever

18
A 6 minute video on pier construction using
prefabricated caps and columns

19
Available Tools and Resources

• Learn more
• www.fhwa.dot.gov/bridge/prefab
• Tools
• Decision-Making Framework for the Use of
  Prefabricated Bridges
• Self-Propelled Modular Transporters (SPMT) Manual
• Connection Detail Catalog for PBES
• FHWA ABC Workshops for DOTs
• FHWA Contacts
• Vasant Mistry at Vasant.Mistry_at_dot.gov
• Kathleen Bergeron at Kathleen.Bergeron_at_dot.gov

20
Prefabricated Bridge Elements and Systems (PBES)

• PBES offers significant advantages over
  Cast-in-place construction
• Reduces onsite construction time
• Reduces Traffic and Environmental impact
• Lowers First and Life-Cycle Costs
• Improves Safety and Quality

21
Thank You
Accelerated Bridge Construction
