College of

1
College of Osteopathic Medicine
Friday, 1 September 2006

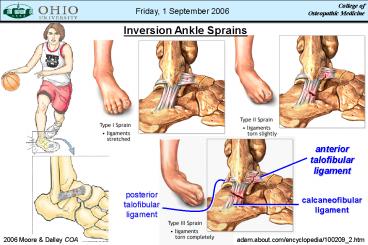

Inversion Ankle Sprains
anterior talofibular ligament
posterior talofibular ligament
calcaneofibular ligament
2006 Moore Dalley COA
adam.about.com/encyclopedia/100209_2.htm
2
College of Osteopathic Medicine
Friday, 1 September 2006
Bimalleolar (Potts) Fracture-Dislocation
avulsion fracture of medial malleolus
fibular fracture
deltoid ligament
tibiofibular ligament tear
www.gpnotebook.co.uk/pott.jpg
eversion of ankle
2006 Moore Dalley COA
3
College of Osteopathic Medicine
Friday, 1 September 2006
Plantar Fasciitis
heel-that-pain.com/ images/plantar_ fasciitis_diag
heel spur
nbwebexpress.com/images/fhc_images/heel_pain_fig1.
gif
2006 Moore Dalley COA
4
College of Osteopathic Medicine
Friday, 1 September 2006
Tarsal Tunnel Syndrome (tibial n. compression
neuropathy)
medial plantar n.
flexor retinaculum
tibial nerve posterior tibial a.
lateral plantar n.
medial plantar n.
lateral plantar n.
2006 Moore Dalley COA
eorthopod.com/images/ContentImages/foot/ foot_tars
al_tunnel/foot_tarsal_tunnel_surgery01.jpg
5
College of Osteopathic Medicine
Friday, 1 September 2006
Hallux Valgus
sesamoids
2006 Moore Dalley COA
www.gvle.de/kompendium/fuss /0030/SMFBI0B0KJEBV000
rad.washington.edu/anatomy/modules/HalluxValgus/im
ages/PreOp.jpg
