PowerPointpresentatie

1
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling

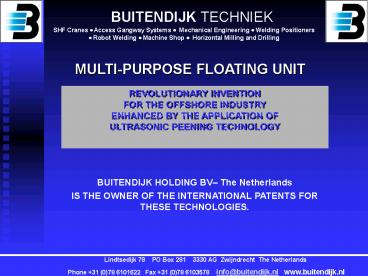

MULTI-PURPOSE FLOATING UNIT
REVOLUTIONARY INVENTION FOR THE OFFSHORE
INDUSTRY ENHANCED BY THE APPLICATION
OFULTRASONIC PEENING TECHNOLOGY

• BUITENDIJK HOLDING BV The Netherlands
• IS THE OWNER OF THE INTERNATIONAL PATENTS FOR
  THESE TECHNOLOGIES.

Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
2
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
MULTI-PURPOSE FLOATING UNIT

• TRANSIT MODE

OPERATIONAL MODE
VESSEL HULL CONSISTING OF 2 COLUMNS AT EACH BOW
GUIDING A JACKING DECKHOUSE
Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
3
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
MULTI-PURPOSE FLOATING UNIT DESIGN BASES

• Design based on currently used offshore
  technology
• The concept combines the technical advantages of
  3 different types of existing units
• The vessel shaped hull allows fast transit and/or
  high storage capacity.
• The semi-submersible for a superb operational
  heave behaviour.
• The jacket unit adjusts to air-gap needs.
• The design includes a large amount of
  accommodation and recreation space according to
  DNV, DEA and NMD requirements.
• The design include a high deck load capacity so
  the concept is, when required, multi-purpose.

Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
4
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
HIGH STRENGTH STEEL TREATED WELDS BY ULTRASONIC
PEENING ALLOWS INCREASED PAY-LOAD AND IMPROVED
FATIGUE RESISTANCE
Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
5
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling

• Standard High Tensile Steel parts
• Hull
• Bottom
• Side
• Top
• Bulkheads
• Decks
• Girders

• Ultra High Tensile Steel parts
• Deckhouse
• 4x Columns
• Mid column
• Derrick
• Helideck
• Inside hull double bottom deck
• Stiffening

Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
6
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
MULTI-PURPOSE EXPLORATION VESSEL
OPTIMUM REQUIREMENTS FOR DEEPWATER

• Own propulsion In transit it would be able to
  sail with speed up to 15 knots and in operational
  mode full stationkeeping capabilities.
• In operational mode the motion behaviour would be
  equal or better as in a semi-submersible a
  system which allows to work with a fixed Riser
  system able to operate in heavy weather reducing
  dramaticaly the occurrence of operational
  downtime.
• High storage areas to reduce logistical cost and
  preferably have a relative low Vertical Center of
  Gravity to maintain stability requirements.
• Vessel must be outfitted with sufficient
  equipment to handle all standard operations.

Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
7
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
MULTI-PURPOSE VESSEL FOR ULTRA DEEPWATER
OPERATIONS

• IT COULD BENEFIT

• Oil Companys
• Drilling Companys
• FSO and FPSO companys

• DUE TO THE DIVERSIFIED CHARACTER OF THE CONCEPT

Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
8
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
CONCEPT DESIGN PREMISES (1)

• Additional doublehull mid-column acting as
  moonpool below the derrick in the mid-columns
  doublehull the casings, drillpipe and risers will
  be transported vertically by conveyor systems
  into the derrick.
• Vertical storage in hull of up to 4000 meter
  (13000 ft.) risers, drillpipe and casing stored
  by cranes through the columns at the bows.
• DP class 3 classification large added mass
  negligible heave low overall Vertical Center of
  Gravity adjustable by ballast tanks to optimise
  stability and GM.
• Adjustable buoyant module in moonpool to reduce
  and control loads on the toptension system.
• Ballast tanks seawater can be replaced by crude
  oil.
• Deck cranes sufficient capacity to handle all
  operations like installation of templates,
  loading and unloading risers etc...

Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
9
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
CONCEPT DESIGN PREMISES (2)
Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
10
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
DIMENSIONS (1)
Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
11
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
DIMENSIONS (2)

• Length (m) 240
• Width (m) 52
• Depth hull (m) 31
• Transit Draft (m) 15-24
• Drydock draft (m) 11
• Adjustable GM (m) 1-3
• Airgap (m) 15-20
• Cranes 2x 150 Ton-45 m.
• 4x 70 Ton-25 m.

Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
12
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
ARRANGEMENT (1)
Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
13
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
ARRANGEMENT (2)

• Beds 150-170
• Galley
• Messroom
• Recreation rooms
• Change rooms
• Compartments for Baryte
• Cement
• Brine
• Baseoil
• Mud storage
• Mudpits
• Mixing
• Aux. Engine
• Emerg. Gen.
• Sewage Treat.
• Waterrmakers
• HVAC

Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
14
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
ARRANGEMENT (3)
Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
15
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
ARRANGEMENT (4)

• Compartments in hull for
• 4x engine room
• 2x pumproom
• 4x switchboardroom
• 4x thruster room
• Sewage treatment
• Watermakers
• HVAC
• Recreation
• Sewage treatment
• Machine shops
• Stores
• Separator rooms tanks
• Ballast water 1 million barrel
• Vertical storage of Casing/Drillpipe
• 4000 mtr. riser

Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
16
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
CAPACITIES

• Design speed 12-15 Knots
• Workdeck storage 8.000Ton
• Lightweight appr. 82.000 Ton
• Submerged appr. 300.000Ton
• Engine rooms 4 x 10M
• Thrusters 8 x
• Station keeping by DP class 3.
• Vessel operating in headseas.
• Controlable load on Toptension syst. Operational
  at 10 year storm

Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
17
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
MOTION BEHAVIOUR TEST (1)
submerged mass in relation to the relative small
waterline area results in negligible heave
motion

• Basin at UNO-USA

The model scale 1150

• Hooked up and ready for test

• A North Sea 10 year storm was used as wave
  spectra as well as random waves and soft-moored
  in headseas to determine RAOs. Results were
  compared with results
• from regular waves.

Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
18
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
MOTION BEHAVIOUR TEST (2)

• Slow-motion presentation
• of 10 year storm

• HEAVE RAO HEAVE IN 10YEAR STORM UP TO
  WAVEPERIODS OF 12 SEC. NEGLIGIBLE lt 0.1 m/m
• IN STORMS PERIODS ARE SELDOM LARGER THAN 12 SEC
  NO SIGNIFICANT OPERATIONAL DOWNTIME DUE TO
  WEATHER WILL OCCUR

• HEAVE IS NEGLIGIBLE AND PITCH IS MODERATE
• SLAMING AGAINST MID- AND BOW COLUMNS AS PREDICTED

• IMPROVED SHAPE OF THE COLUMNS TO WAVEBREAKERS

Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
19
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
LOADS ON TOPTENSION SYSTEM (1)

• Load Fv is approx. 80 static and approx. 20
  dynamic
• Load Ft fluctuates due to dynamic load.
• Load Fh is causing unequal loads Ft.

Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
20
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
LOADS ON TOPTENSION SYSTEM (2)

• The sum of fluctuating load Ft results in the
  need for a toptension system which is able to
  react fast on load changes.Taking into account
  the always action static load a huge
  powerconsuming toptension system is required.

It would be ideal to reduce the static load and
Fh.
Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
21
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
TOPTENSION CONTROLABLE LOAD DEVICE (1)
Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
22
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
TOPTENSION CONTROLABLE LOAD DEVICE (2)

• THE RISER SYSTEM IS CONNECTED TO THE BOUYANT
  MODULE
• BOUYANT MODULE IS ABLE TO SLIDE VERTICAL BY
  WHEELS THROUGH THE MOONPOOL
• HORIZONTAL REACTION FORCES Fh FROM THE RISER
  SYSTEM WILL FLOW INTO VESSELS HULL THROUGH THE
  WHEELS
• RESULTING IN PERFECT LINEAR VERTICAL LOAD FOR
  TOPTENSION SYSTEM
• AS THE BOUYANT MODULE IS PERMANENTLY SUBMERGED
  THE RESULTING OF ITS BOUYANCY WILL CONSIDERABLY
  REDUCE THE OPERATIONAL VERTICAL TOPTENSION LOAD
• THE BOUYANT LOAD COULD BE ADJUSTED AS IN A
  BALLAST TANK

Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
23
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
BALLAST TANK OPTIONS FSO/FPSO

• -APPROXIMATE CAPACITY OF FILLED BALLAST TANKS
  1.000.000 BARRELS OF SEAWATER
• -THE VESSEL WOULD BE ABLE TOWORK AS EXPLORING
  DRILLING UNIT AND AS STORAGE OR PRSTORAGE AND
  PRODUCTION UNIT FSO/FPSO ALLOWING A STORAGE
  CAPACITY OF 600.000 BARRELS OF CRUDE OIL.
• -IMPLEMENTATION OF SUBMARINE TECHNOLOGY WILL
  ALLOWS MULTIPLE USE OF BALLAST TANKS.

Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
24
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
MULTIPLE OPTIONS

• EXPLORATION DRILLING UNIT
• PRODUCTION DRILLING UNIT
• FSO
• FPSO By installation of production facilities
  on the workdeck
• PIPELAY VESSEL S-lay or J-lay
• CRANE VESSEL

Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
25
BUITENDIJK TECHNIEK
SHF Cranes ? Access Gangway Systems ? Mechanical
Engineering ? Welding Positioners ? Robot Welding
? Machine Shop ? Horizontal Milling and Drilling
SUMMARY

• EXCELLENT MOTION BEHAVIOUR
• NEGLIGIBLE OPERATIONAL DOWNTIME
• MULTIPLE OPTIONS
• DOUBLE HULL DESIGN
• SELF-SUPPORTING EQUIPPED
• HIGH STORAGE FACILITIES

Lindtsedijk 78 PO Box 281 3330 AG
Zwijndrecht The Netherlands Phone 31 (0)78
6101622 Fax [phone]
info_at_buitendijk.nl www.buitendijk.nl
