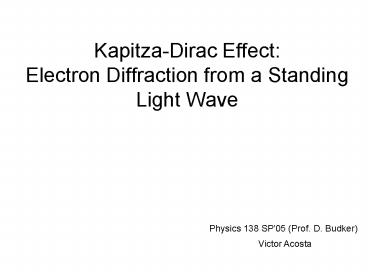

Kapitza-Dirac Effect: Electron Diffraction from a Standing Light Wave

1
Kapitza-Dirac EffectElectron Diffraction from a
Standing Light Wave
Physics 138 SP05 (Prof. D. Budker)
Victor Acosta
2
Contents

• History
• Introduction
• Basic Setup/Results
• Theory
• Multi-Slit Analogy
• Particle Interaction Picture
• QM Treatment
• U. Nebraska 2001 Results
• Applications

3
History

• 1804
• Young Proposes Double Slit Experiment
• Wave nature of Light
• 1905
• Einstein Photoelectric Effect
• Particle nature of Light
• 1927
• Davisson and Germer Electron Diffraction
  (crystalline metal)
• Wave nature of matter
• 1930
• Kapitza and Dirac propose KDE
• Light Intensity of mercury lamp only allows 10-14
  electrons to diffract
• 1960
• Invention of Laser
• First Real Attempts at KDE
• All 4 were unsuccessful (poor beam quality?
  Undeveloped Theory?)
• 2001
• KDE seen by U. Nebraska group

4
Introduction to Kapitza-Dirac Effect (KDE)
Figure 1. Adapted from Kapitza and Dirac's
original paper. Electrons diffract from a
standing wave of light (laser bouncing off
mirror). Figure from Bataleen group (U.
Nebraska).
Analogy) KDE Multi-Slit Diffraction Electron
Beam incident wave Light Source grating
5
Basic Setup/Results
Data for atom diffraction from a grating of
light taken at the University of Innsbruck.
Diffraction peak separation 2 photon recoil
momenta. Figure from Bataleen group (U.
Nebraska).
6
Analogy Multiple-Slit Diffraction
Detector
?
d
d
Assume outgoing waves propagate at ? w.r.t
grating axis (zgtgtd).
Path Length Difference (PLD) dSin? Bragg
Condition satisfied iff PLD n? ? dSin? n?
z
7
Figure from Bataleen group (U. Nebraska).
8
(No Transcript)
9
Quantum Mechanical Theory

• Need full QM treatment to understand nature of
  diffraction peaks
• First find H using Classical EM
• Then solve Time-Dependent Schroedinger Equation

10
Figure from Bataleen group (U. Nebraska).
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
Legend Bragg Regime (Top) Raman-Nath
(Bottom) n0 (red) n1 (blue) n2 (green)
16
Figure from Bataleen group (U. Nebraska).
17
(No Transcript)
18
Figure from Bataleen group (U. Nebraska).
19
U. Nebraska 2001 Results Raman-Nath Regime
Laser off (Top) and Laser on (bottom) Plaser 10
W Ilaser 271 GW/cm2 Vp 7.18 meV. Eo 5.31
µeV Ve.0367c
20
U. Nebraska 2001 Results Bragg Regime
Laser off (Top) and Laser on (bottom) Plaser
1.4 W Ilaser 0.29 GW/cm2 Vp 7.66 µeV. Eo
5.31 µeV Ve.0367c
21
Applications

• Coherent Electron Beam Splitter
• Electron Interferometry
• Greater Sensitivity than Atomic Version
• ?electron 10-11 gt .1?atom
• Low electron energies possible
• Microscopic Stern-Gerlach Magnet?
• Would separate Electrons by spin
• Need light grating that isnt standing wave
