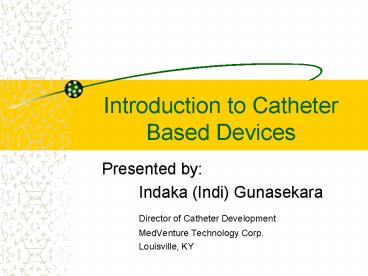

Introduction to Catheter Based Devices
  • Presented by
  • Indaka (Indi) Gunasekara
  • Director of Catheter Development
  • MedVenture Technology Corp.
  • Louisville, KY

2
Introduction to Catheter Based Devices
  • Brief History
  • Catheter Types Applications
  • Catheterization Techniques
  • Catheter Materials
  • Catheter Construction
  • Regulatory Compliance

3
Charles T. Dotter M.D. (1920-1985)
  • Interventional Radiologist
  • Pioneer in the Field of Minimally Invasive
    Procedures (Catheterization)
  • Developed Continuous X-Ray
    Angio-Cardiography
  • Performed First Angioplasty (PTCA) Procedure in
    1964.

4
Trademark of Dr. Dotter
  • If a plumber can do it to pipes, we can do it
    to blood vessels.
  • Charles T. Dotter M.D.

5
Melvin P. Judkins M.D. (1922-1985)
  • A pioneer Radiologist whos techniques are still
    used today in Angiography

6
Dr Andreas Gruentzig (1935 1985)
  • German Physician who convinced the medical
    community of the safety/efficacy of PTCA by
    performing the procedure on himself.

7
Dr. Thomas Forgarty
  • Inventor of the Forgarty Thrombolectomy Balloon
    Catheter.
  • Recipent of more than 60 U.S. Patents for his
    inventions.

8
Catheter Types and Applications
  • Diagnostic Catheters
  • Angiography
  • Electophysiology
  • ivus (Intravenious Ultrasound)

9
Catheter Types and Applications(continued)
  • Therapeutic Catheters
  • PTCA (Percutanious Transluminal Angioplasty)
  • Distal Protection Devices
  • Dialysis
  • Drainage
  • Drug and Stent Delivery
  • RF Ablation

10
Catheterization Techniques
  • Vascular / Coronary Insertion Techniques
  • Transfemoral Approach
  • Brachial (Arm) Approach

11
Catheterization Techniques
  • Neurological Insertion Techiniques (Intrathecal
    Space)
  • Lumbar Approach
  • Ventricular Approach with Tunneling
  • Other Non-Vascular Insertion Techniques
  • Endoscopic Assisted Placement

12
Catheter Materials(Samples)
  • Thermoplastics
  • Nylon, PET, Urethane, PE, PVC, PEEK, etc.
  • Thermosets
  • Silicone, PTFE, Polyimide, etc.
  • Composites / Filled
  • Liquid Crystal Polymers (LCP)
  • Radiopaque Fillers (20 to 40)
  • Barium Sulfate, Bismuth Oxychloride, Tantulum,
    etc.

13
Catheter Construction(Equipment)
Extrusion Line
14
Catheter Construction(Equipment)
Extruder
15
Catheter Construction(Equipment)
Vacuum Tank (Sizing)
16
Catheter Construction(Equipment)
Laser OD Gauge (Feedback Loop to Puller)
17
Catheter Construction(Equipment)
Puller (Sizing)
18
Catheter Construction(Equipment)
Steeger Braider
19
Catheter Construction(Equipment)
Custom Braider
20
Catheter Construction(Equipment)
Insert Molding Machine
21
Catheter Construction
  • Lumens (Longitudinal Passages)
  • Single Lumen
  • Multi-Lumen
  • Segmented Catheter (Multi-Durometer)
  • Tip (Distal)
  • Body
  • Hub (Proximal)
  • Reinforced Wall Sections
  • Braided vs. Coiled

22
Catheter Construction
  • Tipping
  • Radiused Tip
  • Glass Tube / Two Part Cutting Dies
  • Tappered Tip
  • Fenestrations (Holes)
  • Drilled (hollow drilling tube with knife edge)
  • Laser Cut

23
Catheter Construction
  • Coatings
  • Hydrophilic
  • Lubricious
  • Anti-thrombogenic
  • Antibiotic
  • Anti-coagulant (Pyralene)
  • Anti-fungal (Ag-N3)
  • Liquid Silicone
  • Drug-eluting Stents (anti-neoplasty)

24
Catheter Examples
  • Foley Catheter
  • Single lumen latex therapeutic drainage catheter
  • Angioplasty Catheter(s)
  • Coaxial nylon catheter with nylon ballon
    therapeutic PTCA catheter
  • Rapid exchange catheter w/ a stainless steel
    balloon expandable stent loaded

25
Catheter Examples(continued)
  • Lumbar Drainage Catheter
  • Single lumen polyurethane catheter with an
    integrated nickel alloy flat wire coil (MRI
    compatible)
  • Neurological Catheter
  • Single lumen nylon drug/adhesive delivery
    catheter

26
Catheter Examples(continued)
Distal Protection
  • Distal Protection Filter
  • Laser drilled urethane membrane filter at end of
    Guidewire
  • Parodi System
  • PAEC (Parodi Anti Embolic Catheter)
  • PAED ( Parodi Anti Embolic Dialator)
  • PEB ( Parodi Embolic Balloon)
  • PBRS (Parodi Blood Return System)

27
Catheter Examples(continued)
Parodi System
28
Regulatory IssuesFood and Drug Admin. (FDA)
  • Device Classifications
  • Class I - Devices subject to General Controls
  • Simple with no blood contact
  • Example Wound dressings
  • Class II - Devices subject to General Controls
    and Special Controls
  • Peripheral devices (non-life threatening)
  • Examples Forgarty thrombolectomy catheter
  • Class III - Devices subject to General Controls,
    Special Controls, and Premarket Clearance
  • Life sustaining and permanent implants
  • Examples Coronary stents and pacemakers

29
Regulatory IssuesFood and Drug Admin. (FDA)
  • New Device Approval Processes
  • PMA - Unique Device Without Precedence
  • Extensive and lengthy approval process
  • Clinical trials maybe required
  • 510K - References Predicate Device(s)
  • Minimal clinical data required to prove safety
  • Shorter approval process (i.e. as little as 3
    months)

30
Regulatory IssuesInternational Organization for
Standardization (ISO)
  • ISO is a network of the national standards
    institutes of 148 countries, on the basis of one
    member per country, with a Central Secretariat in
    Geneva, Switzerland, that coordinates the system.
  • ISO standards are voluntary. As a
    non-governmental organization, ISO has no legal
    authority to enforce their implementation.

31
Regulatory IssuesInternational Organization for
Standardization (ISO)
  • The ISO 9000 standards are primarily concerned
    with "quality management".
  • the customer's quality requirements
  • applicable regulatory requirements
  • enhance customer satisfaction
  • achieve continual improvement of its performance
    in pursuit of these objectives

32
Regulatory IssuesInternational Organization for
Standardization (ISO)
  • The ISO 13485 is primarily concerned with
    medical devices.
  • Required for CE Mark
  • Design Dossier (Design Master/History File)

33
Current Trends in Catheter Technology
  • Valve Repair and replacement
  • Identification and treatment of Vulnerable Plaque
  • Stroke therapy (Ischemic and Hermoragic)
  • Anastomosis
  • Percutanious Bypass Grafts
  • Localized Drug delivery for Cancer Treatment
  • IMRI (Interoperative MRI)
  • Thrombolectomy
  • Drug-eluting Stents

34
Introduction to Catheter Based Devices
This completes my presentation. Thank you for
your interest and cooperation. Indaka (Indi)
Gunasekara Director of Catheter
Development MedVenture Technology
Corp. Louisville, KY
