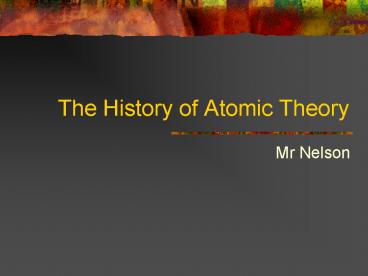

The History of Atomic Theory

1
The History of Atomic Theory

• Mr Nelson

2
Democritus
400 BC

• The Greek philosopher Democritus began the search
  for a description of matter more than 2400 years
  ago.
• He asked Could matter be divided into smaller
  and smaller pieces forever, or was there a limit
  to the number of times a piece of matter could be
  divided?

3
Atomos

• This piece would be indivisible.
• He named the smallest piece of matter atomos,
  meaning not to be cut.

4
Why?

• The eminent philosophers of the time, Aristotle
  and Plato, had a more respected, theory.

Aristotle and Plato favored the earth, fire, air
and water approach to the nature of matter.
5
Daltons Model

• In the early 1800s, the English Chemist John
  Dalton performed a number of experiments that
  eventually led to the acceptance of the idea of
  atoms.

6
Daltons Model

• 1803
• Daltons Model was that atoms are indivisible
  particles.

7
Daltons Theory

• He deduced that all elements are composed of
  atoms.
• Atoms of the same element are exactly alike.
• Atoms of different elements are different.
• Compounds are formed by the joining of atoms of
  two or more elements.

8
J. J. Thomson

• In 1897, the English scientist J.J. Thomson
  provided the first hint that an atom is made of
  even smaller particles.

9
Thomson Model

• Thomson studied the passage of an electric
  current through a gas. Using a CRT.
• As the current passed through the gas, it gave
  off rays of negatively charged particles.

10
Thomson Model
Where did they come from?

• the atoms of the gas were uncharged.
• Where had the negative charges come from?

11
Thomson

• Thomson concluded that the negative charges came
  from within the atom.
• Thomson called the negatively charged
  corpuscles, today known as electrons.
• Since the gas was known to be neutral, he
  reasoned that there must be positively charged
  particles in the atom.
• But he could never find them.

12
Thomson Model

• Plum Pudding model.
• Atoms were made from a positively charged
  substance with negatively charged electrons
  scattered around

13
Rutherfords Gold Foil Experiment

• In 1908
• English physicist Ernest Rutherford, began work
  on his gold foil experiment.

14
Rutherfords Hypothesis

• Rutherford was trying to verify Thomsons model.
• He expected positively charged alpha particles to
  go straight through a piece of very thin gold.

15
What Happened

• Most alpha particles passed straight through the
  gold foil
• A small percentage (1/8000) were deflected at
  large angles or returned to the source
• http//micro.magnet.fsu.edu/electromag/java/ruther
  ford/

16
(No Transcript)
17
Rutherfords Experiment

• There are 2 reasons alpha particles deflected
• Density of the nucleus
• Repelling charges

18
Rutherfords Conclusion

• An atom has
• a small, dense, positively charged center that
  repelled the positively charged alpha particles.
• Named the center of the atom the nucleus
• The nucleus is tiny compared to the atom as a
  whole.
• This could only mean that the gold atoms in the
  sheet were mostly open space.

19
Rutherfords Nuclear Model

• Rutherford reasoned that all of an atoms
  positively charged particles were contained in
  the nucleus. The negatively charged particles
  were scattered outside the nucleus around the
  atoms edge.

20
Neils Bohr

• Was a Jewish Scientist in Copenhagen during the
  onset of WWII
• Hitler was interested in his research of the
  atom.
• He was moved to the US to protect his knowledge.

21
Bohrs Explanation

• Bohr thought that an electron travelled in a
  specific orbit at a certain distance from the
  nucleus called an energy level and had specific
  amounts of energy.
• Worked well for Hydrogen and Helium

22
Nuclear symbols

• In this unit we need to be familiar with this
  type of symbol

A
X
Z
23
Hyphen Notation

• Includes an element name a - and a number
• Example Sulfur 32
• This sulfur atom has an atomic mass of 32
• Since Sulfur has ______ protons electrons
• It also has ______ neutrons

24
(No Transcript)
