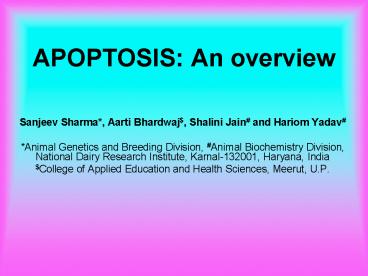

APOPTOSIS: An overview

1
APOPTOSIS An overview

• Sanjeev Sharma, Aarti Bhardwaj, Shalini Jain
  and Hariom Yadav
• Animal Genetics and Breeding Division, Animal
  Biochemistry Division, National Dairy Research
  Institute, Karnal-132001, Haryana, India
• College of Applied Education and Health
  Sciences, Meerut, U.P.

2
INTRODUCTION

• Cell death by injury
• -Mechanical damage
• -Exposure to toxic chemicals
• Cell death by suicide
• -Internal signals
• -External signals

3
Conted..

• Apoptosis or programmed cell death, is carefully
  coordinated collapse of cell, protein degradation
  , DNA fragmentation followed by rapid engulfment
  of corpses by neighbouring cells.
  (Tommi, 2002)
• Essential part of life for every multicellular
  organism from worms to humans. (Faddy et
  al.,1992)
• Apoptosis plays a major role from embryonic
  development to senescence.

4
Why should a cell commit suicide?

• Apoptosis is needed for proper development
• Examples
• The resorption of the tadpole tail
• The formation of the fingers and toes of the
  fetus
• The sloughing off of the inner lining of the
  uterus
• The formation of the proper connections between
  neurons in the brain
• Apoptosis is needed to destroy cells
• Examples
• Cells infected with viruses
• Cells of the immune system
• Cells with DNA damage
• Cancer cells

5
What makes a cell decide to commit suicide?

• Withdrawal of positive signals
• examples
• growth factors for neurons
• Interleukin-2 (IL-2)
• Receipt of negative signals
• examples
• increased levels of oxidants within the cell
• damage to DNA by oxidants
• death activators
• Tumor necrosis factor alpha (TNF-?)
• Lymphotoxin (TNF-ß)
• Fas ligand (FasL)

6
History of cell death / apoptosis research

• 1800s Numerous observation of cell death
• 1908 Mechnikov wins Nobel prize (phagocytosis)
• 1930-40 Studies of metamorphosis
• 1948-49 Cell death in chick limb exploration
  of NGF
• 1955 Beginning of studies of lysomes
• 1964-66 Necrosis PCD described
• 1971 Term apoptosis coined
• 1977 Cell death genes in C. elegans
• 1980-82 DNA ladder observed ced-3 identified
• 1989-91 Apoptosis genes identified, including
  bcl-2, fas/apo1 p53, ced-3 sequenced
• (Richerd et.al., 2001)

7
Necrosis

• When the cell membrane is damaged
• Necrosis occurs when cells are exposed to extreme
  variance from physiological conditions
• (e.g., hypothermia, hypoxia) which may result in
  damage to the plasma membrane.
• Under physiological conditions direct damage to
  the plasma membrane is evoked by
• agents like complement and lytic viruses.

8
Apoptosis

• Apoptosis is a mode of cell death that occurs
  under normal physiological with no damage to cell
  membrane
• conditions and the cell is an active participant
  in its own demise (cellular suicide). It is
• most often found during normal cell turnover and
  tissue homeostasis, embryogenesis,
• induction and maintenance of immune tolerance,
  development of the nervous system
• endocrine-dependent tissue atrophy.

9
Necrosis vs. Apoptosis
Necrosis
Apoptosis

• Cellular condensation
• Membranes remain intact
• Requires ATP
• Cell is phagocytosed, no tissue reaction
• Ladder-like DNA fragmentation
• In vivo, individual cells appear affected

• Cellular swelling
• Membranes are broken
• ATP is depleted
• Cell lyses, eliciting an inflammatory reaction
• DNA fragmentation is random, or smeared
• In vivo, whole areas of the tissue are affected

10
NECROSIS Vs APOPTOSIS



Wilde, 1999
11
STAGES OF APOPTOSIS
Induction of apoptosis related genes, signal
transduction
Sherman et al., 1997
12
APOPTOSIS Morphology
organelle reduction
membrane blebbing changes
cell shrinkage
mitochondrial leakage
nuclear fragmentation
chromatin condensation
Hacker., 2000
13
(No Transcript)
14
(No Transcript)
15
Caenorhabditis elegans
1090 cells
131 cells
apoptosis
decision to die
engulfment
degradation
execution
ced-3 ced-4
ced-1 ced-2 ced-5 ced-6 ced-7 ced-10
nuc-1
ced-9
egl-1
ces-1
ces-2
16
Apoptosis Pathways
Extrinsic Pathway
Death Ligands
Intrinsic Pathway
DNA damage p53
17
MAJOR PLAYERS IN APOPTOSIS

• Caspases
• Adaptor proteins
• TNF TNFR family
• Bcl-2 family

18
Ligand-induced cell death

• Ligand Receptor
• FasL Fas (CD95)
• TNF TNF-R
• TRAIL DR4 (Trail-R)

19
Ligand-induced cell death
The death receptors
Ligand-induced trimerization
FasL Trail TNF
20
APOPTOSIS Signaling Control pathways I
Externally driven
Externally driven
Apoptotic signals
Activators of initiator enzymes
p53
Cytochrome C
Internally driven
Initiator caspases 6, 8, 9,12
mitochondrion
Execution caspases 2, 3, 7
Apoptosis events
Activation
21
APOPTOSIS Signaling Control pathways II
Externally driven
Externally driven
Inhibitors
Apoptotic signals
Activators of initiator enzymes
p53
Cytochrome C
Internally driven
Bcl2
Survival factors
External
Initiator caspases 6, 8, 9,12
Internal
Execution caspases 2, 3, 7
Inhibitors of apoptosis
Apoptosis events
Inhibition
22
The mitochondrial pathway
Growth factor receptors
Fas
DNA damage
Casp8
PI3K
Akt
p53
Bid
casp3
BAD
Bid
Bax
IAPs
casp9
Bid
Apaf1
Bcl2
ATP
casp3
Bax
Cyt.C
Smac/ DIABLO
H2O2
AIF
Pollack etal., 2001
23
REGULATION OF APOPTOSIS

• Stimuli? apoptosis ?selection of targets
  (Rich et al., 2000)
• Apoptosis by conflicting signals that scramble
  the
• normal status of cell (Canlon Raff, 1999)
• Apoptotic stimuli?cytokines, death factors (FasL)
  (Tabibzadeh et al., 1999)
• DNA breaks ? p53 is activated ?arrest cell cycle
  or
• activate self destruction (Blaint Vousden,
  2001)

24
Importance of Apoptosis

• Important in normal physiology / development
• Development Immune systems maturation,
  Morphogenesis, Neural development
• Adult Immune privilege, DNA Damage and wound
  repair.
• Excess apoptosis
• Neurodegenerative diseases
• Deficient apoptosis
• Cancer
• Autoimmunity

25
FUTURE PERSPECTIVES

• The biological roles of newly identified death
  receptors and ligands need to be studied
• Need to know whether defects in these ligands
  and receptors contribute to disease

26
CONCLUSION

• an important process of cell death
• can be initiated extrinsically through death
  ligands
• (e.g. TRAIL, FasL) activating initiator
  caspase 8 through induced proximity.
• can be initiated intrinsically through DNA damage
  (via cytochrome c) activating initiator caspase
  9 through oligomerization.
• Initiator caspases 8 and 9 cleave and activate
• effector caspase 3, which leads to cell death.

27
Programed Cell Death helps maintain Health
28
DNA DAMAGE
p53
29
The bcl-2 family
Receptor domain
Raf-1 calcineurin
Membrane anchor
Ligand domain
Pore formation
phosphorylation
Back
30
P53 Apoptosis
p53 first arrests cell growth between G1 ? S
This allows for DNA repair during delay
If the damage is too extensive then p53
induces gene activation leading to apoptosis
(programmed cell death)
BACK
31
3 mechanisms of caspase activation
a. Proteolytic cleavage e.g. pro-caspase 3
b. Induced proximity, e.g. pro-caspase 8
c. Oligomerization, e.g. cyt c, Apaf-1 caspase
9
Back
32
Apoptosis signal to kill infected cells
Cytolytic lymphocyte/CTL ( natural killer
lymphocyte) presents Fas ligand/CD178 on its
surface to tell the infected cell to die
Fas ligand
CTL
Virally infected cell
Externally driven
Apoptotic signals
Cytochrome c
Initiator caspases
The immunological synapse holds the cells much
tighter together than shown here
Execution caspases
Apoptosis events
Fas/ CD95 is the death receptor
