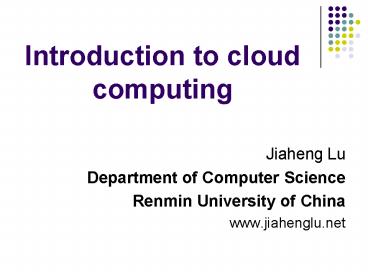

Introduction to cloud computing

• Jiaheng Lu
• Department of Computer Science
• Renmin University of China
• www.jiahenglu.net

2

• Advanced MapReduce Application
• Reference Jimmy Lin
• http//www.umiacs.umd.edu/jimmylin/cloud-2008-Fal
  l/schedule.html

3
Managing Dependencies

• Remember Mappers run in isolation
• You have no idea in what order the mappers run
• You have no idea on what node the mappers run
• You have no idea when each mapper finishes
• Tools for synchronization
• Ability to hold state in reducer across multiple
  key-value pairs
• Sorting function for keys
• Partitioner
• Cleverly-constructed data structures

4
Motivating Example

• Term co-occurrence matrix for a text collection
• M N x N matrix (N vocabulary size)
• Mij number of times i and j co-occur in some
  context (for concreteness, lets say context
  sentence)
• Why?
• Distributional profiles as a way of measuring
  semantic distance
• Semantic distance useful for many language
  processing tasks

e.g., Mohammad and Hirst (EMNLP, 2006)
5
MapReduce Large Counting Problems

• Term co-occurrence matrix for a text collection
  specific instance of a large counting problem
• A large event space (number of terms)
• A large number of events (the collection itself)
• Goal keep track of interesting statistics about
  the events
• Basic approach
• Mappers generate partial counts
• Reducers aggregate partial counts

6
First Try Pairs

• Each mapper takes a sentence
• Generate all co-occurring term pairs
• For all pairs, emit (a, b) ? count
• Reducers sums up counts associated with these
  pairs
• Use combiners!

7
Pairs Analysis

• Advantages
• Easy to implement, easy to understand
• Disadvantages
• Lots of pairs to sort and shuffle around (upper
  bound?)

8
Another Try Stripes

• Idea group together pairs into an associative
  array
• Each mapper takes a sentence
• Generate all co-occurring term pairs

a ? b 1, c 2, d 5, e 3, f 2
(a, b) ? 1 (a, c) ? 2 (a, d) ? 5 (a, e) ? 3
(a, f) ? 2
a ? b 1, d 5, e 3 a ? b 1, c
2, d 2, f 2 a ? b 2, c 2, d 7,
e 3, f 2
9
Another Try Stripes

• Reducers perform element-wise sum of associative
  arrays

a ? b 1, d 5, e 3 a ? b 1, c
2, d 2, f 2 a ? b 2, c 2, d 7,
e 3, f 2

10
Stripes Analysis

• Advantages
• Far less sorting and shuffling of key-value pairs
• Can make better use of combiners
• Disadvantages
• More difficult to implement
• Underlying object is more heavyweight
• Fundamental limitation in terms of size of event
  space

11
Cluster size 38 cores Data Source Associated
Press Worldstream (APW) of the English Gigaword
Corpus (v3), which contains 2.27 million
documents (1.8 GB compressed, 5.7 GB uncompressed)
12
Conditional Probabilities

• How do we compute conditional probabilities from
  counts?
• Why do we want to do this?
• How do we do this with MapReduce?

13
P(BA) Pairs
Reducer holds this value in memory
(a, ) ? 32

• For this to work
• Must emit extra (a, ) for every bn in mapper
• Must make sure all as get sent to same reducer
  (use Partitioner)
• Must make sure (a, ) comes first (define sort
  order)

(a, b1) ? 3 (a, b2) ? 12 (a, b3) ? 7 (a, b4) ?
1
(a, b1) ? 3 / 32 (a, b2) ? 12 / 32 (a, b3) ? 7 /
32 (a, b4) ? 1 / 32
14
P(BA) Stripes
a ? b13, b2 12, b3 7, b4 1,

• Easy!
• One pass to compute (a, )
• Another pass to directly compute P(BA)

15
Synchronization in Hadoop

• Approach 1 turn synchronization into an ordering
  problem
• Sort keys into correct order of computation
• Partition key space so that each reducer gets the
  appropriate set of partial results
• Hold state in reducer across multiple key-value
  pairs to perform computation
• Approach 2 construct data structures that bring
  the pieces together
• Each reducer receives all the data it needs to
  complete the computation

16
Issues and Tradeoffs

• Number of key-value pairs
• Object creation overhead
• Time for sorting and shuffling pairs across the
  network
• Size of each key-value pair
• De/serialization overhead
• Combiners make a big difference!
• RAM vs. disk and network
• Arrange data to maximize opportunities to
  aggregate partial results

17
Data Types in Hadoop
Writable
Defines a de/serialization protocol. Every data
type in Hadoop is a Writable.
WritableComprable
Defines a sort order. All keys must be of this
type (but not values).
Concrete classes for different data types.
IntWritableLongWritable Text
18
Complex Data Types in Hadoop

• How do you implement complex data types?
• The easiest way
• Encoded it as Text, e.g., (a, b) ab
• Use regular expressions to parse and extract data
• The hard way
• Define a custom implementation of
  WritableComprable
• Must implement readFields, write, compareTo
• Computationally efficient, but slow for rapid
  prototyping

19
Yahoo! PNUTS and Hadoop

20
Search Results of the Future
yelp.com
Gawker
babycenter
New York Times
epicurious
LinkedIn
answers.com
webmd
21
Whats in the Horizontal Cloud?
Simple Web Service APIs
Horizontal Cloud Services
Edge Content Services e.g., YCS, YCPI
Provisioning Virtualization e.g., EC2
Batch Storage Processing e.g., Hadoop Pig
Operational Storage e.g., S3, MObStor, Sherpa
Other Services Messaging, Workflow, virtual
DBs Webserving
ID Account Management
Shared Infrastructure
Metering, Billing, Accounting
Monitoring QoS
Common Approaches to QA, Production
Engineering, Performance Engineering, Datacenter
Management, and Optimization
22
Yahoo! Cloud Stack
EDGE
Horizontal Cloud Services

YCS
YCPI
Brooklyn
WEB
Horizontal Cloud Services
VM/OS
yApache
PHP
App Engine
APP
Provisioning (Self-serve)
Monitoring/Metering/Security
Horizontal Cloud Services
VM/OS

Serving Grid
Data Highway
STORAGE
Horizontal Cloud Services

Sherpa
MOBStor
BATCH
Horizontal Cloud Services

Hadoop
23
Yahoo! CCDI Thrust Areas

• Fast Provisioning and Machine Virtualization On
  demand, deliver a set of hosts imaged with
  desired software and configured against standard
  services
• Multiple hosts may be multiplexed onto the same
  physical machine.
• Batch Storage and Processing Scalable data
  storage optimized for batch processing, together
  with computational capabilities
• Operational Storage Persistent storage that
  supports low-latency updates and flexible
  retrieval
• Edge Content Services Support for dealing with
  network topology, communication protocols,
  caching, and BCP

Rest of todays talk
24
Web Data Management

• CRUD
• Point lookups and short scans
• Index organized table and random I/Os
• per latency

• Scan oriented workloads
• Focus on sequential disk I/O
• per cpu cycle

Structured record storage (PNUTS/Sherpa)
Large data analysis (Hadoop)

• Object retrieval and streaming
• Scalable file storage
• per GB

Blob storage (SAN/NAS)
25
The World Has Changed

• Web serving applications need
• Scalability!
• Preferably elastic
• Flexible schemas
• Geographic distribution
• High availability
• Reliable storage
• Web serving applications can do without
• Complicated queries
• Strong transactions

26
PNUTS / SHERPA To Help You Scale Your Mountains
of Data
27
Yahoo! Serving Storage Problem

• Small records 100KB or less
• Structured records lots of fields, evolving
• Extreme data scale - Tens of TB
• Extreme request scale - Tens of thousands of
  requests/sec
• Low latency globally - 20 datacenters worldwide
• High Availability - outages cost millions
• Variable usage patterns - as applications and
  users change

27
28
The PNUTS/Sherpa Solution

• The next generation global-scale record store
• Record-orientation Routing, data storage
  optimized for low-latency record access
• Scale out Add machines to scale throughput
  (while keeping latency low)
• Asynchrony Pub-sub replication to far-flung
  datacenters to mask propagation delay
• Consistency model Reduce complexity of
  asynchrony for the application programmer
• Cloud deployment model Hosted, managed service
  to reduce app time-to-market and enable on demand
  scale and elasticity

28
29
What is PNUTS/Sherpa?
CREATE TABLE Parts ( ID VARCHAR, StockNumber
INT, Status VARCHAR )
Structured, flexible schema
Geographic replication
Parallel database
Hosted, managed infrastructure
29
30
What Will It Become?
Indexes and views
CREATE TABLE Parts ( ID VARCHAR, StockNumber
INT, Status VARCHAR )
Geographic replication
Parallel database
Structured, flexible schema
Hosted, managed infrastructure
31
What Will It Become?
Indexes and views
32
Design Goals

• Scalability
• Thousands of machines
• Easy to add capacity
• Restrict query language to avoid costly queries
• Geographic replication
• Asynchronous replication around the globe
• Low-latency local access
• High availability and fault tolerance
• Automatically recover from failures
• Serve reads and writes despite failures

• Consistency
• Per-record guarantees
• Timeline model
• Option to relax if needed
• Multiple access paths
• Hash table, ordered table
• Primary, secondary access
• Hosted service
• Applications plug and play
• Share operational cost

32
33
Technology Elements
Applications
Tabular API
PNUTS API

• PNUTS
• Query planning and execution
• Index maintenance

• Distributed infrastructure for tabular data
• Data partitioning
• Update consistency
• Replication

YCA Authorization

• YDOT FS
• Ordered tables

• YDHT FS
• Hash tables

• Tribble
• Pub/sub messaging

• Zookeeper
• Consistency service

33
34
Data Manipulation

• Per-record operations
• Get
• Set
• Delete
• Multi-record operations
• Multiget
• Scan
• Getrange
• Web service (RESTful) API

34
35
TabletsHash Table
Name
Description
Price
0x0000
Grape
12
Grapes are good to eat
Limes are green
9
Lime
1
Apple
Apple is wisdom
900
Strawberry
Strawberry shortcake
0x2AF3
2
Orange
Arrgh! Dont get scurvy!
3
Avocado
But at what price?
Lemon
How much did you pay for this lemon?
1
14
Is this a vegetable?
Tomato
0x911F
2
The perfect fruit
Banana
8
Kiwi
New Zealand
0xFFFF
35
36
TabletsOrdered Table
Name
Description
Price
A
1
Apple
Apple is wisdom
3
Avocado
But at what price?
2
Banana
The perfect fruit
12
Grape
Grapes are good to eat
H
Kiwi
8
New Zealand
Lemon
How much did you pay for this lemon?
1
Limes are green
Lime
9
2
Orange
Arrgh! Dont get scurvy!
Q
900
Strawberry
Strawberry shortcake
Is this a vegetable?
14
Tomato
Z
36
37
Flexible Schema
Posted date Listing id Item Price
6/1/07 424252 Couch 570
6/1/07 763245 Bike 86
6/3/07 211242 Car 1123
6/5/07 421133 Lamp 15
Condition
Good

Fair

Color


Red

38
Detailed Architecture
Local region
Remote regions
Clients
REST API
Routers
Tribble
Tablet Controller
Storage units
38
39
Tablet Splitting and Balancing
Each storage unit has many tablets (horizontal
partitions of the table)
Storage unit may become a hotspot
Tablets may grow over time
Overfull tablets split
Shed load by moving tablets to other servers
39
40
QUERY PROCESSING
40
41
Accessing Data
Get key k
SU
SU
SU
41
42
Bulk Read
SU
SU
SU
42
43
Range Queries in YDOT

• Clustered, ordered retrieval of records

Apple Avocado Banana Blueberry
Canteloupe Grape Kiwi Lemon
Lime Mango Orange
Strawberry Tomato Watermelon
Apple Avocado Banana Blueberry
Canteloupe Grape Kiwi Lemon
Lime Mango Orange
Strawberry Tomato Watermelon
44
Updates
Write key k
Sequence for key k
Routers
Message brokers
Write key k
Sequence for key k
SUCCESS
Write key k
44
45
ASYNCHRONOUS REPLICATION AND CONSISTENCY
45
46
Asynchronous Replication
46
47
Consistency Model

• Goal Make it easier for applications to reason
  about updates and cope with asynchrony
• What happens to a record with primary key
  Alice?

Record inserted
Delete
Update
Update
Update
Update
Update
Update
Update
v. 1
v. 2
v. 3
v. 4
v. 5
v. 7
v. 6
v. 8
Time
Time
Generation 1
As the record is updated, copies may get out of
sync.
47
48
Example Social Alice
East
Record Timeline
West
User Status
Alice ___
___
User Status
Alice Busy
Busy
User Status
Alice Busy
User Status
Alice Free
Free
User Status
Alice ???
User Status
Alice ???
Free
49
Consistency Model
Read
Current version
Stale version
Stale version
v. 1
v. 2
v. 3
v. 4
v. 5
v. 7
v. 6
v. 8
Time
Generation 1
In general, reads are served using a local copy
49
50
Consistency Model
Read up-to-date
Current version
Stale version
Stale version
v. 1
v. 2
v. 3
v. 4
v. 5
v. 7
v. 6
v. 8
Time
Generation 1
But application can request and get current
version
50
51
Consistency Model
Read v.6
Current version
Stale version
Stale version
v. 1
v. 2
v. 3
v. 4
v. 5
v. 7
v. 6
v. 8
Time
Generation 1
Or variations such as read forwardwhile copies
may lag the master record, every copy goes
through the same sequence of changes
51
52
Consistency Model
Write
Current version
Stale version
Stale version
v. 1
v. 2
v. 3
v. 4
v. 5
v. 7
v. 6
v. 8
Time
Generation 1
Achieved via per-record primary copy
protocol (To maximize availability, record
masterships automaticlly transferred if site
fails) Can be selectively weakened to eventual
consistency (local writes that are reconciled
using version vectors)
52
53
Consistency Model
Write if v.7
ERROR
Current version
Stale version
Stale version
v. 1
v. 2
v. 3
v. 4
v. 5
v. 7
v. 6
v. 8
Time
Generation 1
Test-and-set writes facilitate per-record
transactions
53
54
Consistency Techniques

• Per-record mastering
• Each record is assigned a master region
• May differ between records
• Updates to the record forwarded to the master
  region
• Ensures consistent ordering of updates
• Tablet-level mastering
• Each tablet is assigned a master region
• Inserts and deletes of records forwarded to the
  master region
• Master region decides tablet splits
• These details are hidden from the application
• Except for the latency impact!

55
Mastering
A 42342 E
B 42521 W
C 66354 W
D 12352 E
E 75656 C
F 15677 E
A 42342 E
B 42521 W
Tablet master
C 66354 W
D 12352 E
E 75656 C
F 15677 E
A 42342 E
B 42521 W
C 66354 W
D 12352 E
E 75656 C
F 15677 E
55
56
Bulk Insert/Update/Replace

• Client feeds records to bulk manager
• Bulk loader transfers records to SUs in batches
• Bypass routers and message brokers
• Efficient import into storage unit

Client
Bulk manager
Source Data
57
Bulk Load in YDOT

• YDOT bulk inserts can cause performance hotspots
• Solution preallocate tablets

58
Index Maintenance

• How to have lots of interesting indexes and
  views, without killing performance?
• Solution Asynchrony!
• Indexes/views updated asynchronously when base
  table updated

59
SHERPAIN CONTEXT
59
60
Types of Record Stores

• Query expressiveness

S3
PNUTS
Oracle
Simple
Feature rich
Object retrieval
Retrieval from single table of objects/records
SQL
61
Types of Record Stores

• Consistency model

S3
PNUTS
Oracle
Best effort
Strong guarantees
Eventual consistency
Timeline consistency
ACID
Program centric consistency
Object-centric consistency
62
Types of Record Stores

• Data model

PNUTS
CouchDB
Oracle
Flexibility, Schema evolution
Optimized for Fixed schemas
Object-centric consistency
Consistency spans objects
63
Types of Record Stores

• Elasticity (ability to add resources on demand)

PNUTS S3
Oracle
Inelastic
Elastic
Limited (via data distribution)
VLSD (Very Large Scale Distribution /Replication)
64
Data Stores Comparison

• Versus PNUTS
• More expressive queries
• Users must control partitioning
• Limited elasticity
• Highly optimized for complex workloads
• Limited flexibility to evolving applications
• Inherit limitations of underlying data management
  system
• Object storage versus record management

• User-partitioned SQL stores
• Microsoft Azure SDS
• Amazon SimpleDB
• Multi-tenant application databases
• Salesforce.com
• Oracle on Demand
• Mutable object stores
• Amazon S3

65
Application Design Space
Get a few things
Sherpa
MObStor
YMDB
MySQL
Oracle
Filer
BigTable
Scan everything
Hadoop
Everest
Files
Records
65
66
Alternatives Matrix
Consistency model
Structured access
Global low latency
SQL/ACID
Availability
Operability
Updates
Elastic
Sherpa
Y! UDB
MySQL
Oracle
HDFS
BigTable
Dynamo
Cassandra
66
67
Further Reading
Efficient Bulk Insertion into a Distributed
Ordered Table (SIGMOD 2008) Adam Silberstein,
Brian Cooper, Utkarsh Srivastava, Erik Vee,
Ramana Yerneni, Raghu Ramakrishnan PNUTS
Yahoo!'s Hosted Data Serving Platform (VLDB
2008) Brian Cooper, Raghu Ramakrishnan, Utkarsh
Srivastava, Adam Silberstein, Phil Bohannon,
Hans-Arno Jacobsen, Nick Puz, Daniel Weaver,
Ramana Yerneni Asynchronous View Maintenance for
VLSD Databases, Parag Agrawal, Adam Silberstein,
Brian F. Cooper, Utkarsh Srivastava and Raghu
Ramakrishnan SIGMOD 2009 (to appear) Cloud
Storage Design in a PNUTShell Brian F. Cooper,
Raghu Ramakrishnan, and Utkarsh
Srivastava Beautiful Data, OReilly Media, 2009
(to appear)
68
QUESTIONS?
68
