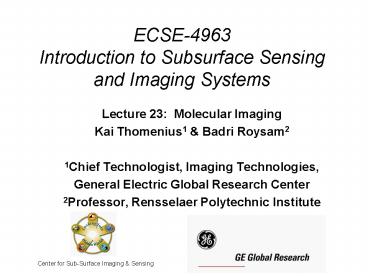

ECSE-4963 Introduction to Subsurface Sensing and Imaging Systems

1
ECSE-4963Introduction to Subsurface Sensing and
Imaging Systems

• Lecture 23 Molecular Imaging
• Kai Thomenius1 Badri Roysam2
• 1Chief Technologist, Imaging Technologies,
• General Electric Global Research Center
• 2Professor, Rensselaer Polytechnic Institute

Center for Sub-Surface Imaging Sensing
2
Recap

• Last time we discussed
• MRI coil designs
• Gradient
• RF
• Phased Array
• Image quality in MRI
• Different modes of MRI imaging
• fMRI or functional MRI
• MRA
• Brief history of work done at GEs Global
  Research
• Today
• Introduction to Molecular Imaging

3
What is Molecular Imaging?

• Molecular imaging (MI) is
• the remote sensing of cellular processes at the
  molecular level in vivo.
• So far, this has involved animals, typically
  mice, but humans are the longer term target.
• This remote sensing is being done with
• Conventional or modified imaging methods (e.g.
  MRI, PET scanners, optical methods)
• Exogenous agents (called probes) which interact
  with the cellular processes
• Except for nuclear medicine and PET, the focus
  today is on technique development on experimental
  animals

4
What is Molecular Imaging?

• Current increase in interest due to
• Recent marriage of imaging techniques with
  molecular biology.
• Expansion of MI to a variety of modalities.
• Advances in several key scientific disciplines
  germane to specific and sensitive imaging, e.g.
  human genome project nanotechnology.
• Molecular Imaging has the potential of changing
  imaging landscape dramatically.

5
Vision for Molecular Imaging
If successful, the following will be true

• a life-threatening disease is detected before
  symptoms appear
• therapeutic drugs are seen hitting their target,
  instantaneously
• therapeutic efficacy is measured in hours instead
  of months
• life saving drugs tailored to your genetic
  make-up and disease variant get to market years
  faster than possible today.

6
Molecular Imaging

• Rationale
• Changes at cellular level occur well before
  anatomic changes
• Hence promise of earlier diagnosis.
• Functional changes may occur as much as a decade
  before anatomical changes.
• Redefinition of diseases such as cancer
• from
• organ system-based diseases
• to
• aberrations in molecular structure function
  traceable to the genetic (DNA) level.

Breast Carcinoma
We may be able toidentify genetic
pre-disposition to a disease.
7
Big PicturePassive Molecular Imaging Systems
Processor
Detector(s)
Output
Surface
Molecule(s) of Interest
Background Molecule(s)
Detector(s)
8
Big PictureActive Molecular Imaging Systems
Probing Transducer(s)
Processor
Detector(s)
Output
Surface
Influence Field
Molecule(s) of Interest
Modulation Field
Background Molecule(s)
Detector(s)
9
Big PicturePassive/Active Molecular Imaging
With Contrast Agent
Probing Transducer(s)
Processor
Detector(s)
Output
Surface
Influence Field
Molecule(s) of Interest
Molecule-specific Contrast Agent
Modulation Field
Background Molecule(s)
Detector(s)
Role of the contrast agent is two-fold 1. Give
a stronger substance-specific contrast 2.
Enable use of existing modalities
10
Background Animal Cell

• Cell Membrane
• Encloses cell, allows selected substances to pass
  through, has huge surface area, but little
  volume, very important site of biochemical
  activity
• Nucleus
• Holds DNA
• RNA is transcribed here
• Nucleolus
• Part of the nucleus where ribosomes are formed
• RNA is translated to proteins in ribosomes
• ER Endoplasmic reticulum
• A pathway to transport materials to specific
  places, instead of floating freely in cytoplasm
• Rough ER has lots of ribosomes sticking to it

Energy Producers
11
Animal Cell

• Lysosome
• digests waste materials and food within the cell
  using enzymes
• Golgi Complex
• modifies molecules and packages them into small
  membrane bound sacs called vesicles. These sacs
  are targeted at various locations in the cell and
  even to its exterior
• Mitochondria
• The major energy production center
• Has its own DNA

• Chloroplasts
• Does photosynthesis in plant cells
• like mitochondria in many ways

12
Key Molecules in a Cell

• DNA
• De-oxy ribonucleic acid
• RNA
• Ribonucleic acid
• Proteins
• 90 of a cell is water
• 50 of whats left is proteins

13
Chromosomes

• A chromosome is formed from a single DNA
  molecule.
• Ploidy the number of sets of chromosomes an
  individual has
• A chromosomal DNA molecule contains three
  specific nucleotide sequences which are required
  for replication
• a DNA replication origin
• a centromere to attach the DNA to the mitotic
  spindle
• a telomere located at each end of the linear
  chromosome.

14
De-oxy Ribonucleic Acid (DNA)

• Chemical method for long-term information
  storage. Like all information storage devices,
• It can encode information using pattern of base
  pairs
• The information can be read
• The molecule is stable secure over millions of
  years.
• Famous double-helix structure.
• Structural Constraints
• A pairs with T only
• G pairs with C only
• Length measured in terms of base pairs
• The human haploid genome contains 3,000,000,000
  DNA pairs.

15
DNA Replication

• On any given rung, if you know one letter, you
  also know the other.
• Because of this property, DNA can replicate
  itself.
• First, it "unzips" down the middle. This leaves
  half-rungs exposed. Then A, C, G, and T chemicals
  float over and re-build a complete ladder.
• Errors in this process are rare, but do happen
• Called mutations
• Mutagens increase/cause mutations
• Ultraviolet light, nitrous acid,
• Cell kills itself if DNA is damaged too much
• Called apoptosis

16
Ribonucleic Acid (RNA)

• Single-stranded, unlike DNA
• The role of RNA is three-fold
• a structural molecule,
• an information transfer molecule,
• information decoding molecule

17
Genes

• A piece of DNA that includes all the code for a
  specific protein, as well as the code for when
  the protein is made
• Humans have about 30,000 genes
• A gene occupies a specific place, on a chromosome
  and is always found in the same chromosome in all
  persons.
• A gene expresses itself by making proteins by a
  two-stage process
• Transcription stage a particular enzyme
  recognizes the sequence of base pairs for a
  gene (a part called the promoter), and moving
  along the gene, makes a copy in the form of an
  RNA molecule.
• The messenger RNA is translated to a protein in a
  ribosome

18
Proteins

• Truly the physical basis of life
• Every function of cell depends on them
• They are polymers constructed from one or more
  unbranched chains of amino acids
• Amino acids are the 20 building blocks of
  proteins, each coded for by a specific 3
  base-pair codon on the DNA.
• A typical protein contains 200-300 amino acids
  but some are much smaller (the smallest are often
  called peptides)

http//users.rcn.com/jkimball.ma.ultranet/BiologyP
ages/P/Proteins.html
19
Molecular Imaging

• Practical Goals
• To image gene delivery expression
• MI identifies specific gene products
  intracellular processes
• To understand cellular processes in their intact
  microenvironments
• To develop new imaging technologies to realize
  such goals
• To facilitate new drug development and methods
  for therapeutic monitoring, and
• To promote an interdisciplinary approach to
  biomedical imaging issues.

Most of these goals involve action at the
cellular level.
20
Top Ten Terms in Molecular Genetics(what you
must know to survive at a pharmacogenetics
cocktail party)

• 10. Gene specific sequence of nucleotide bases
  that carries information for constructing
  proteins exons are the regions that actually
  encode for the protein
• 9. Chromosome one of the 24 distinct,
  physically separate microscopic units of DNA that
  comprise the genome
• 8. Genetics the study of the patterns of
  inheritance of specific traits
• 7. Genomics the study of an organisms entire
  complement of genetic material and its function
• 6. Proteomics the study of an organisms entire
  protein material, its structure and
  function

21
Top Ten Terms in Molecular Genetics

• 5. Amino acids the 20 building blocks of
  proteins, each coded for by a specific 3
  base-pair codon.
• 4. Allele one of the two copies of a specific
  gene
• 3. Polymorphism a gene that varies between
  individual members of the population in more than
  1 of the population. Most commonly, these are
  single nucleotide variations (SNPs).
• 2. Transcription the synthesis of an RNA copy
  from a sequence of DNA the first step in gene
  expression.
• 1. Translation the synthesis of proteins from
  mRNA and amino acids

2a. Gene Expression Formation of a protein
from a DNA sequence
22
Two More Terms

• Angiogenesis
• growth of new blood vessels on demand, e.g. to
  sustain or establish tumor growth.
• Occurs both in health and in disease.

• Desirable angiogenesis
• Restores blood flow after injuries
• Placenta growth
• Undesirable angiogenesis
• Tumor growth
• Macular degeneration
• Angiogenesis MI
• Can we image formation of new blood vessels?
• Can we image reduction in angiogenesis?

http//www.angio.org/understanding/understanding.h
tml
23
3D Imaging of Tumor Microvasculature
Normal
Multi-photon Microscope
Abnormal
Injected contrast agent
24
Two More Terms

• Apoptosis
• Programmed cell death
• Destruction cells by an organized plan
• Why should cells commit suicide?
• Resorption of the tadpole tail at the time of its
  metamorphosis into a frog
• Formation of the fingers and toes of the fetus
  requires the removal, by apoptosis, of the tissue
  between them.
• Sloughing off of the inner lining of the uterus
  (the endometrium) at the start of menstruation.
• Apoptosis MI
• Apoptosis occurs in response to certain drugs,
  e.g. chemotherapy agents.
• Can we image the onset of this process and
  thereby determine the utility of the therapy?

http//users.rcn.com/jkimball.ma.ultranet/BiologyP
ages/A/Apoptosis.html
25
Nuclear Medicine-based MI Example

• Apomate is a kit (Tc-99m) based probe specific
  for apoptosis.
• In apoptosis, an intracellular chemical, PS, can
  be translocated to the extracellular membrane
• Apomate has strong affinity to PS will attach
  to it.
• Nuclear medicine imagers are great at Tc-99m
  imaging
• Proposed Uses
• Apoptosis occurs in response to radio- or
  chemotherapy agents.
• Taxol effect.
• Apoptosis occurs in infarcted tissues.
• First clinical trials to assess utility of
  chemotherapy.
• Currently in Phase II clinical trials.

Apomate, product of North American Scientific,
Inc.
26
Molecular Imaging

• Key enablers
• Highly specific imaging probes (i.e. MI agents
  injected into a lab animal to study cellular
  processes).
• Suitable amplification strategies for signal
  starved modalities such as MR
• More sensitive imaging methods
• Imaging Probes
• probes can be single-stranded DNA or RNA
  molecules of specific base sequence.
• Must clear from all irrelevant sites within the
  time frame of an imaging study.
• Must traverse physiologic barriers to get to
  their target sites of action.

27
Gene Expression DNA to mRNA to Protein
28
Fluorescence in-situ Hybridization (FISH)
29

• FISH Imaging of Immediate Early Gene Arc
• (Quick Acting)

• Nuclear FISH Signal 2 15 min
• Cytoplasmic FISH Signal 20 60 min

Double labeling showing Arc (green) zif268
(red) foci
30
Design for a MRI Probe

• Yet some more new terminology
• Ligand Part of the MI probe that is target
  specific, i.e. has special affinity to a site on
  a cell.
• Moiety specific chemical component of a probe
• Key components of probe
• Targeting ligand
• Attachment of the ligand to the receptor site
  releases enzymes
• These enzymes activate contrast agent
• Polymer based backbone for signal amplification
• Enzyme (or pH) activatable contrast capability

http//www.science.uwaterloo.ca/course_notes/biolo
gy/biol473/lecture7.pdf
(Patents Pending)
31
Optical Imaging MI

• Optical Imaging is gaining popularity rapidly in
  MI.
• Various imaging methods
• Fluorescence
• Bioluminescence
• Absorption
• Diffuse optical tomography
• Confocal imaging
• Multi-photon imaging
• Almost all of these are limited to small animals.
• Translation to imaging of humans will be a
  challenge.

32
Two Views on SSI Modalities MI

• Top chart
• Pomper, Acad Rad. 81141
• Bottom
• Weissleder, Radiology 216 331
• Nuclear very strong on metabolic molecular
  stuff
• Optical imaging may be the up and coming modality.

33
Targeted Agent for Ultrasound

• Work by Wickline Lanza at Wash. U.
• Nanoparticle agent
• About 250 nm in diameter.
• Targeting a three-step process
• Antibody attached to clot
• Avidin attaches to the antibody
• Contrast agent attaches to avidin.
• Successful ultrasound images of fibrin have been
  made

34
Intravascular study w. u/s agent

• Pig carotid arteries were overstretched w.
  balloon catheters.
• Damage introduced to observe healing process.
• Tissue factor is a glycoprotein that initiates
  healing process.
• Arteries were imaged w. tissue factor targeted
  agent and control agent.
• Enhancement due to targeted agent is obvious.

35
Therapy Agents

• Thrombus-targeted agent, MRX-408
• Agent small white bubbles, IV injection
• Contains ligands which bind to platelets in clot.
• Agents make clots more visible
• Ultrasound can be used to destroy agent via
  cavitation
• Helps in dissolving clot
• Drug delivery
• Therapeutic microbubbles circulate
• They are selectively destroyed by ultrasound when
  passing through pathology.

36
Summary

• Molecular Imaging has tremendous potential.
• MI is the result from a tight coupling of biology
  subsurface imaging technologies.
• Pursuit of activities in this area will require a
  good grounding in cell biology, biochemistry.
• PET, nuclear will be most likely the first
  modalities esp. in human imaging.
• Optical imaging, MRI are receiving much attention
  in animal studies.
• There is a very exciting potential for a
  fundamental change in diagnostic therapeutic
  medicine.

37
Homework Lecture 20

• All the examples of molecular imaging dealt with
  medical applications.
• Propose a non-medical application of molecular
  imaging, i.e. an imaging situation where
• an external agent is introduced
• that agent alters the imaged site
• that alteration is imaged by an SSI probe.

38
Instructor Contact Information

• Badri Roysam
• Professor of Electrical, Computer, Systems
  Engineering
• Office JEC 7010
• Rensselaer Polytechnic Institute
• 110, 8th Street, Troy, New York 12180
• Phone [phone]
• Fax [phone]
• Email roysam_at_ecse.rpi.edu
• Website http//www.rpi.edu/roysab
• NetMeeting ID (for off-campus students)
  128.113.61.80
• Secretary Laraine Michaelides (michal_at_rpi.edu),
  518-276-8525

39
Instructor Contact Information

• Kai E Thomenius
• Chief Technologist, Ultrasound Biomedical
• Office KW-C300A
• GE Global Research
• Imaging Technologies
• Niskayuna, New York 12309
• Phone [phone]
• Fax [phone]
• Email thomeniu_at_crd.ge.com, thomenius_at_ecse.rpi.edu

• Secretary Laraine Michaelides (michal_at_rpi.edu),
  518-276-8525

40
Ultrasound and Molecular Imaging

• Possible Collaborators
• Sam Wickline Washington U. in St. Louis
• Nanoparticle based targeted agent
  (perfluorocarbon emulsion)
• Michael Sherar U. of Toronto
• Detection of rate of apoptosis efficacy of
  chemotherapy
• Evan Unger CEO of ImaRx Prof. _at_ U. of Arizona
• Numerous agents, drug delivery, gene transfection
• Katherine Ferrara U. of California at Davis
• Broad program on molecular imaging, GEMS interest

Microbubble w. DNA payload (ImaRx)
