BOBBIE PETTIT, DIRECTOR OF TECHNICAL SERVICES

1

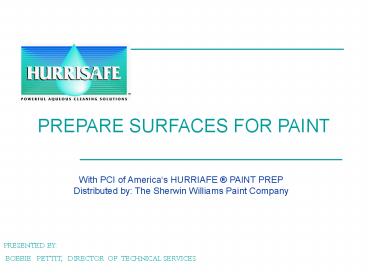

PREPARE SURFACES FOR PAINT
With PCI of Americas HURRIAFE PAINT
PREPDistributed by The Sherwin Williams Paint
Company
PRESENTED BY BOBBIE PETTIT, DIRECTOR OF
TECHNICAL SERVICES
2
HURRISAFE PAINT PREP

• Helps Achieve Environmental Compliance
• Provides a Superior Performance in a Residue-Free
  Cleaner
• Results in a Substantial and Meaningful Savings
  in Disposal, Environmental Compliance and
  Reduction in Chemical Inventory

3
Hurrisafe Paint Prep Environmental Benefits

• Non-Hazardous
• Non-Flammable / Non-Combustible
• Readily Biodegradable
• Oil-Water Separator Compatible
• Low VOCs (47 g/L in Concentrate), (15 g/L
  diluted 21) )
• SCAQMD Certified as a Clean Air Solvent.
• Improved Cleaning Performance Over Solvents
• User Friendly
• No Solvent Odor

4
VOCs Volatile Organic Compounds

• Certified Hurrisafe VOC
  Haps SARA (313) Clean Air Solvent
  Ingredients
• Hurrisafe Conc. Yes 47
  g/L No No
• Hurrisafe 21 Diluted Yes
  15 g/L No No
• Purple Power NO NI
  Yes NA
• IPA NO 785 g/L
  No Yes
• (Isopropyl Alcohol)
• NI Information Not Included on MSDS.

5
HURRISAFE PAINT PREP REPLACE HIGH VOC SOLVENTS

• PD-680 Type Solvents
• Mineral Spirits, and Naphtha
• Lacquer Thinner
• MEK, MIBK, IPA, and Acetone
• Sodium or Potassium Hydroxide
• Off-The-Shelf Un-Approved Products

6
HURRISAFE PAINT PREP

• Is an excellent degreaser and cleaner
• Provides excellent bonding for a variety of
  coating systems
• Is compatible with most common metals
• Leaves no residue
• Is compatible with most industrial paints
• Eliminates industrial shop rags as fire hazards
  and the hazardous waste that comes with them

7
MIL-DTL-53072C Outlines Four Critical Steps to
Successful Application of the CARC System

• (1) CLEANING
• (2) PRETREATING
• (3) PRIMING
• (4) TOP COAT

8
Combining the expertise of The Sherwin Williams
Paint Company and the Performance of Hurrisafe
Paint Prep to Achieve Success in Step (1)
CLEANING
9
CLEANING

• Ensure your efforts for High Quality Product
  Finishing by laying a good foundation with a
  universal pretreatment cleaner like
• Hurrisafe Paint Prep

Distributed by Sherwin-Williams Chemical Coating
Sales
10
HURRISAFE PAINT PREP APPLICATIONS

• Pressure Washer
• Steam Cleaners
• Wipe-On Wipe-Off
• Low Pressure Spray
• Immersion-Dip Tanks

11
For Pressure Washer or Steam Cleaner

• DILUTION CHART (Water To
  Hurrisafe)
• 100-500 PSI 81 Dilution
• 500-1000 PSI 101 Dilution
• 1000-1500 PSI 201 Dilution
• 1500-2500 PSI 251 Dilution
• 2500-Plus PSI 301 Dilution

12
Surface Preparation

• Improperly Cleaned Surfaces are Unacceptable
  because they limit or interfere with paint
  adhesion.
• Meticulous cleaning prior to pretreatment and
  painting is of prime importance in obtaining a
  satisfactory coating meeting MIL-DTL-53072C
  Specifications.
• SSPC-SP1 Must be Followed in order to obtain any
  SSPC Cleaning Specification in order to Pass QC
  Inspection

13
SSPC-SP1 No. 1 PRIOR TO BLAST CLEANING

• Cleaners must be used prior to abrasive blasting
  or mechanical cleaning as stated in TT-C-490
• Remove heavy oil or grease first by scraper.
• Spray the surface with Hurrisafe.
• Rinse thoroughly with water
• Allow the surface to dry completely
• Perform a Water Break Test as Specified in
  MIL-DTL-53072C, Section 4.2.3.1.

14
SSPC-SP1 No. 1 PRIOR TO BLAST CLEANING
Areas Not Reached During Blast Cleaning

• Dilute Hurrisafe 21 with Water in a Trigger
  Spray Bottle.
• Spray Area to be Cleaned
• Wipe Sprayed Area Dry with a Clean Dry Cloth to
  Remove the Dissolved Contaminants and Dry the
  Surface.
• For Areas Where A Dry Cloth Can Not Reach. Use
  Compressed Air to Remove the Dissolved
  Contaminants and Dry the Surface.

15
Pretreatment Should Begin Within Four (4) Hours
After Cleaning OrA Water Break Test Must Be
Performed to Determine if The Cleaning Process
Must Be Repeated
16
Surface Preparation Specification SSPC-SP 5,
6, 7, etc. After Blast Cleaning
Use Hurrisafe in a Wipe-On Wipe-Off Process

• After Blast-Cleaning to Remove Any Remnants of
  the Blast Media or Dust from the Surface.
• After Treatment to Remove Rust, Weld Spatter
  and Other Inorganic Contaminants
• After the Cleaned Surface has Sat For Four (4) or
  more Hours and Accumulated Air Dust and
  Contaminants.

17
Surface Preparation Specification SSPC-SP 5,
6, 7, etc. After Blast Cleaning

Wipe-On Wipe-Off Process Prior to Pretreatment.

• Dip a clean, lint free cloth into Hurrisafe
  diluted 21 with water.
• Wring the cloth out so that it is saturated, but
  not dripping.
• Wipe a small area at a time to remove dust and
  air
• contaminants
• Wipe the same area dry with a clean dry cloth to
  remove all the Contaminants and insure the
  surface is dry and ready for pretreatment.

18
PARTIAL LIST OF MILITARY FACILITY USING
HURRISAFE

• US AIR FORCE
• Hunter AFB GA
• Robins AFB GA
• Tinker AFB OK
• Hill AFB Utah
• Speicher,Tirkrit Iraq
• Eglin AFB, Fl
• KADENA AB, Japan
• AAASF,Johnstown,Pa
• U S NAVY
• SIMA, San Diego, CA
• Naval Sub Base Groton Ct
• Naval Sub Base, Portsmouth, NH
• USS Ronald Regan
• Norfolk NS, Norfolk, VA.
• Naval Air, Lemoore, CA
• Pearl Harbor NS, Pear Harbor HI
• San Diego NS, San Diego CA.

• US ARMY
• Camp Anaconda, Balad Iraq
• Mosul AB Mosul , Iraq
• Fort Rucker, Al
• Fort Drum, NY.
• Fort Stewart, GA.
• Pyongtaek, South Korea
• Red River , TX
• Fort Polk, LA
• Fort Lewis, WA
• AMCOM TASM Germany
• Fort Campbell KY
• US MARNINE CORPS
• MAL New River NC
• Al Asad AB, Baghdad, Iraq
• MAL Cherry Point, NC
• MCAS Yuma, Yuma AZ
• MAL, Miramar, Ca

19
PCI of AMERICA, Inc. MAKERS OF HURRISAFE PAINT
PREPCage Code 0ZCB7Veteran Owned, Small
Business
PROUDLY SERVING THE MILITARY FOR OVER 25 YEARS
Phone [phone], Fax [phone],
EmailBobbiepettit_at_hurrisafe.comwww.hurrisafe
.comManufacturing Facility Manassas Virginia,
USA
