Computer Security: Principles and Practice

1

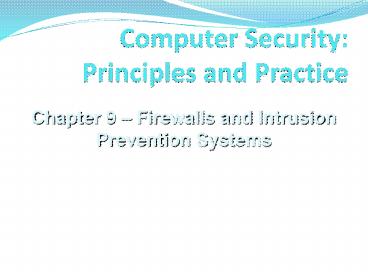

Computer Security Principles and Practice
Chapter 9 Firewalls and Intrusion Prevention
Systems

• Second Edition
• by William Stallings and Lawrie Brown
• Lecture slides by Susan Lincke Lawrie Brown

2
Chapter Objectives

• Objectives
• The student should be able to
• Describe the different types of firewalls
  Circuit, Application Proxy, Packet, Stateful,
  Personal including how they differ in an example
  attack that each can fend off.
• Describe 3 firewall vulnerabilities
• Draw configurations for network types double
  inline, T, multihomed, distributed, load
  balanced.
• Describe what a firewall policy is, give an
  example policy, and indicate how a policy may be
  used
• Describe each of the following border router,
  static and dynamic NAT and PAT.

3
Security Defense in Depth
Border Router Perimeter firewall Internal
firewall Intrusion Detection System Policies
Procedures Audits Authentication Access Controls
4
Firewall Required Functions

• Required Functions
• Serve as an entry point into a network
• Screens all packets entering the network
• Service control
• Direction control
• User control
• Behavior control (access only part of Web
  service)
• Log and alarm events
• Perform Network Address Translation functions
  (optional)
• Perform Virtual Private Network functions
  (optional)
• Support no other functions (that can be
  compromised)

5
Firewall Locations
6
Network Defense ConfigurationDouble Inline
Firewalls
Internet
ScreeningRouter
IDS
Firewall A
External DNS
IDS
Web Server
E-Commerce
VPN Server
Firewall B
IDS
Protected Internal Network
Database/File Servers
7
Network Defense ConfigurationLoad Balanced
Firewalls
Internet
Router
ScreeningRouter
Firewall B
Firewall A
External DNS
IDS
Web Server
E-Commerce
VPN Server
Protected Internal Network
IDS
Database/File Servers
8
Network Defense ConfigurationSingle T or
Multihomed (Separate Zones)
Internet
Router
ScreeningRouter
Firewall
Demilitarized Zone
External DNS
IPS
Web Server
E-Commerce
VPN Server
Protected Internal Network Zone
IPS
Database/File Servers
9
Network Defense ConfigurationDistributed
Firewall
Internet
ScreeningRouter
IDS
Firewall A
Firewall
Firewall
Firewall
Firewall
External DNS
IDS
Web Server
E-Commerce
VPN Server
Firewall B
IDS
Protected Internal Network
Database/File Servers
Firewall
10
Bastion Hosts

• critical strongpoint in network
• hosts application/circuit-level gateways
• common characteristics
• runs secure O/S, only essential services
• may require user auth to access proxy or host
• each proxy can restrict services hosts accessed
• each proxy small, simple, checked for security
• each proxy is independent, non-privileged
• proxy disk use is boot only hence read-only code

11
Firewall Topologies

• host-resident firewall
• screening router
• single bastion inline One firewall
• single bastion T with 3 zones
• double bastion inline Serial firewalls
• double bastion T with 3 zones
• distributed firewall configuration double with
  host firewalls

12
Network Defenses with Logs
Internet
Router
Security Mgmt
Syslog
IDS
Firewall Vendor A
External DNS
IPS
Web Server
E-Commerce
VPN Server
Firewall Vendor B
IPS
Protected Internal Network
Database/File Servers
13
Types of Firewalls
14
FirewallConfigurations
terminal
host
Router Packet Filtering Packet header is
inspected Single packet attacks caught Very
little overhead in firewall very quick High
volume filter
firewall
A
A
terminal
host
Stateful Inspection State retained in firewall
memory Most multi-packet attacks caught More
fields in packet header inspected Little overhead
in firewall quick
firewall
A
A
A
15
Packet Filtering Firewall

• applies rules to packets in/out of firewall
• based on information in packet header
• src/dest IP addr port, IP protocol, interface
• typically a list of rules of matches on fields
• if match rule says if forward or discard packet
• two default policies
• discard - prohibit unless expressly permitted
• forward - permit unless expressly prohibited

16
Packet Filter Problems

• In heavy load may forward all packets without
  logging
• Cannot catch application-level errors
• ICMP can have invalid contents
• FTP, RPC use ports gt 1023, dynamically allocated
• Cannot recognized spoofed IP or port addresses
• Do not support advanced user authentication
• Tiny fragments can hide attacks
• Improper configuration can lead to breaches
• Routers can do packet filtering, most firewalls
  do more

17
Stateful Inspection Firewall

• reviews packet header information but also keeps
  info on TCP connections
• typically have low, known port no for server
• and high, dynamically assigned client port no
• simple packet filter must allow all return high
  port numbered packets back in
• stateful inspection packet firewall tightens
  rules for TCP traffic using a directory of TCP
  connections
• only allow incoming traffic to high-numbered
  ports for packets matching an entry in this
  directory
• may also track TCP seq numbers as well

18
Packet Filter Rules
19
Stateful Packet Filters

• Tracks TCP/UDP connection status
• Can configure outbound-only connections
• Packets are allowed in if connection is
  established
• Records source/destination IP and port addresses,
  protocol (TCP/UDP), timer expiration
• TCP Also supports TCP state, Sequence numbers
• UDP Supports expiration timer, pseudo state
• May prevent fragmentation attacks
• Advantage Supports higher loads than
  Circuit-Level Firewalls at same memory/processor
  speed levels
• Problems
• ICMP Messages may come from intermediate node,
  not destination. Must accept/reject all ICMP
  messages of type N
• DOS Attack Establish connections to fill table
• Applications change ports or use multiple ports
  e.g., ftp
• Application attacks not detected since
  application protocols not scanned
• Some routers support Stateful packet filtering
  nearly all firewalls do

20
Stateful Firewall Connection State Table
Source Address Source Port Destination Address Destination Port Connection State
215.34.55.143 2011 188.55.43.59 80 Established
84.22.428.143 1027 188.55.43.59 80 Established
188.55.42.34 1022 89.42.33.143 23 Established
184.56.23.123 88 188.55.43.49 80 Established
21
FirewallConfigurations
terminal
host
Circuit-Level Firewall Packet session terminated
and recreated via a Proxy Server All
multi-packet attacks caught Packet header
completely inspected High overhead in firewall
slow
firewall
A
B
A
B
terminal
host
Application-Proxy Firewall Packet session
terminated and recreated via a Proxy
Server Packet header completely inspected Most or
all of application inspected Highest overhead
slow low volume
firewall
A
B
A
B
22
Firewall Router Protection Levels
Packet Filter
IP Header TCP Header
Application Header Data
Prot Src Addr Dest Addr Src Port Dest Port
Stateful Packet Filter Circuit Level Filter
Proxy Server
IP Header TCP Header
Application Header Data
Prot Src Addr Dest Addr Src Port Dest Port Flag Seq No
Application Proxy Firewall
IP Header TCP Header
Application Header Data
Appl Hdr
Prot Src Addr Dest Addr Src Port Dest Port Flag Seq No
Guard Firewall Sophisticated Application Proxy
Firewall IDS/IPS
IP Header TCP Header
Application Header Data
Prot Src Addr Dest Addr Src Port Dest Port Flag Seq No
Appl Hdr
Appl Data
Fields shown are monitored by these types of
Firewalls
23
Circuit-Level Firewalls or Proxy Server

• Establishes a TCP connection with remote end
  before passing information through.
• Creates two sessions one with sender one with
  receiver
• Does not filter based on packet contents (other
  than state)
• Also known as Pass-Through Proxy or Generic Proxy
• Advantages If firewall failure, no packets are
  forwarded through firewall
• Catches fragmentation errors
• Problems
• Does not detect invalid application data
• Moves security issues from service to firewall
  e.g., DOS attacks
• Less able to handle high loads since each
  connection becomes two
• Requires much greater memory and processor at
  application level (Web page is gt 1 connection)
• Slower interfaces can result in poor performance
  for streaming applications

24
Application Proxy Firewall

• Examines packets and their contents at the
  Application Layer
• Can cause delay due to additional processing
• May strip info on internal servers, server
  version on outgoing messages (e.g., email)
• May allow only certain types of sessions through
• FTP May permit receives, no sends. Or sends of
  specific files only.
• Email Encrypts email between all of companys
  offices
• HTTP May filter PUT commands, URL names. Can
  cache replies.
• Authentication Perform extra authentication for
  external access (via dialup or internet)

25
Application-Level Gateway

• acts as a relay of application-level traffic
• user contacts gateway with remote host name
• authenticates themselves
• gateway contacts application on remote host and
  relays TCP segments between server and user
• must have proxy code for each application
• may restrict application features supported
• more secure than packet filters
• but have higher overheads

26
SOCKS Circuit-Level Gateway

• SOCKS v5 defined as RFC1928 to allow TCP/UDP
  client-server applications to use firewall
• components
• SOCKS server on firewall
• SOCKS client library on all internal hosts
• SOCKS-ified client applications
• client app contacts SOCKS server, authenticates,
  sends relay request
• server evaluates establishes relay connection
• UDP handled with parallel TCP control channel

27
Distributed Firewalls
28
Host-Based Firewalls

• often used on servers
• used to secure individual host
• available in/add-on for many O/S
• filter packet flows
• advantages
• taylored filter rules for specific host needs
• protection from both internal / external attacks
• additional layer of protection to org firewall

29
Personal Firewall

• controls traffic flow to/from PC/workstation
• for both home or corporate use
• may be software module on PC
• or in home cable/DSL router/gateway
• typically much less complex
• primary role to deny unauthorized access
• may also monitor outgoing traffic to detect/block
  worm/malware activity

30
Virtual Private Networks
31
Network Address Translation
External Organization IP 201.25.44.0/24
Internal Addresses 10.0.0.0/8
32
Network Address Translation

• Static NAT One external IP address translates
  into one fixed internal IP address
• Dynamic NAT Internal IP addresses are assigned
  an external IP address on a FCFS basis.
• Port Address Translation (PAT) or Hide NAT
  Translates one incoming IP address/port into an
  internal IP address/port. Multiple internal IP
  addresses can map to one external IP address

33
Firewall Capabilities Limits

• capabilities
• defines a single choke point
• provides a location for monitoring security
  events
• convenient platform for some Internet functions
  such as NAT, usage monitoring, IPSEC VPNs
• limitations
• cannot protect against attacks bypassing firewall
• may not protect fully against internal threats
• improperly secure wireless LAN
• laptop, PDA, portable storage device infected
  outside then used inside

34
Firewall Vulnerabilities

• Firewalls can be bypassed via other means (e.g.,
  modem, CDs)
• Data transmitted to the outside may be vulnerable
• Firewalls may lie in heavy loads attack packets
  may get through without logging.
• Extra software on the firewall device increase
  vulnerability
• Firewalls are vulnerable if installed above a
  general-purpose OS
• Firewalls do not prevent malicious acts within
  the network
• Layers of defense are safer than a single
  firewall
• Auditing Scan weekly or at every change
• Retain a baseline of perimeter device
  configurations

35
Designing Firewalls/Routers

• Before creating a firewall configuration, create
  firewall policies.
• Firewall policy An Access Control List (ACL)
  item in English
• Policies can be reviewed, turned into ACLs, and
  tested
• Example Policy IP addresses with internal
  source addresses shall not be allowed into the
  internal network from the outside.
• Often ports gt 1000 cannot be closed due to
  applications like FTP
• Other policies may deal with failover protection,
  detecting malicious code,
•

36
Configuring Firewalls/Routers

• Put specific rules first, then general rules
• When a rule matches, no further testing is done.
• Minimize tests speed processing by placing
  common rules first

37
Auditing Firewalls

• If there is no security policy, speak with mgmt
  about their expectations of the firewall
• After configuring the firewall, test the firewall
  by launching an attack
• Use a sniffer to determine which attack packets
  get through
• Other required operations include
• Log Monitoring and Notification
• User Mgmt and Password policy
• Patch Update and Backup
• Change Control
• Secure build for firewall platforms

38
Audit Testing

• Scan all TCP and UDP ports 0-65,535 on the
  firewall
• Ping devices to see if Echo Requests pass
• Scan using TCP Connect Scan (Full SYN-ACK)
• Do a slow SYN scan (with 15 second delay) to se
  if port scans are detected (by IDS)
• Scan with FINs, ACKs, and fragmented ACKs , Xmas
  Tree scans (URG, PUSH, FIN flags) to see how all
  perform
• Scan the subnet using UDP ports to look for open
  applications
• Check routing capability, including NAT
• Test other blocked source IP addresses Spoofed,
  private, loopback, undefined
• Test other protocols ICMP, IP fragmentation, all
  policies, all directions.
• Verify logging occurs for illegal probes
• Always get signed-off permission first!!!

39
Intrusion Prevention Systems (IPS)

• enhanced security product which
• inline net/host-based IDS that can block traffic
• functional addition to firewall that adds IDS
  capabilities
• can block traffic like a firewall
• alternatively send commands to firewall
• uses IDS algorithms
• may be network or host based

40
Host-Based IPS

• addresses
• modification of system resources
• privilege-escalation exploits
• buffer overflow exploits
• access to email contact list
• directory traversal
• identifies attacks using
• sandbox applets to monitor behavior
• signature techniques
• anomaly detection techniques
• can be tailored to the specific platform
• e.g. general purpose, web/database
• may protect file access, system registry, I/O,
  system calls

41
Network-Based IPS

• inline NIDS that can discard packets or terminate
  TCP connections
• can provide flow data protection
• reassembling whole packets
• monitoring full application flow content
• can identify malicious packets using
• pattern matching, stateful matching, protocol
  anomaly, traffic anomaly, statistical anomaly
• cf. SNORT inline can drop/modify packets

42
Unified Threat Management Products
43
Summary

• Firewall filters packets
• Types of networks
• double inline, T or multihomed, distributed, load
  balanced, screening router
• Types of firewalls
• packet filter, stateful inspection, application
  and circuit gateways
• Other capabilities
• Virtual Private Network (VPN), Network Address
  Translation (NAT)
• Advanced configurations
• IPS, Unified Threat Management
