Alan M. Nathan,University of Illinois

1

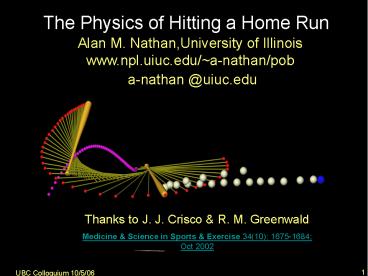

The Physics of Hitting a Home Run

• Alan M. Nathan,University of Illinois
• www.npl.uiuc.edu/a-nathan/pob
• a-nathan _at_uiuc.edu

2
Baseball and Physics
3
Adairs Book An Excellent Reference
Our goal is not to reform the game but to
understand it. The physicists model of the
game must fit the game.
4
The Physics of Hitting a Home Run

• How does a baseball bat work?
• Aerodynamics flight of a baseball
• Leaving the no-spin zone
• Putting it all together

5
You can observe a lot by watching
--Yogi Berra
Easton Sports
CE Composites
6
Brief Description of Ball-Bat Collision

• forces large, time short
• gt8000 lbs, lt1 ms
• ball compresses, stops, expands
• KE?PE?KE
• bat recoils
• lots of energy dissipated (COR)
• distortion of ball
• vibrations in bat
• to hit home run.
• large hit ball speed (100 mph?400 ft)
• optimum take-off angle (300-350)
• lots of backspin

7
Kinematics of Ball-Bat Collision
vf q vball (1q) vbat

• q ? Collision Efficiency
• Joint property of ball bat
• independent of reference frame
• independent of end conditionsmore later
• weakly dependent on vrel
• Superball-wall q ? 1
• Ball-Bat near sweet spot q ? 0.2
• ? vf ? 0.2 vball 1.2 vbat

Conclusion vbat matters much more than vball
8
Kinematics of Ball-Bat Collision
r mball /Mbat,eff bat recoil factor ?
0.25 (momentum and angular momentum
conservation) ---heavier is better but e
coefficient of restitution ? 0.50
(energy dissipationmainly in ball,
some in bat)
9
Collision Efficiency q Can Be Measured

• Air cannon to fire ball onto stationary bat
• q vout/vin
• Used by NCAA, ASA, to regulate/limit
  performance of bats

Sports Sciences Lab _at_ WSU
10
Accounting for COR Dynamic Model for Ball-Bat
Collision AMN, Am. J. Phys, 68, 979 (2000)

• Collision excites bending vibrations in bat
• hurts! breaks bats
• dissipates energy
• lower COR, vf
• Dynamic model of collision
• Treat bat as nonuniform beam
• Treat ball as damped spring

11
Modal Analysis of a Baseball Bat www.kettering.edu
/drussell/bats.html
12
Vibrations, COR, and the Sweet Spot
Strike bat here
Measure response here
13
Independence of End Conditions

• handle moves only after 0.6 ms delay
• collision nearly over by then
• nothing on knob end matters
• size, shape
• boundary conditions
• hands!
• confirmed experimentally

14
q independent of end conditions experimental
proof
Conclusion mass added in knob has no effect on
collision efficiency (q)
15
Why Does Aluminum Outperform Wood?

• Aluminum has thin shell
• Hoop modes give trampoline effect
• larger COR, vf

16
The Trampoline Effect A Simple Physical

• Two springs mutually compress each other
• KE ? PE ? KE
• PE shared between ball spring and bat spring
• PE in ball mostly dissipated (80!)
• PE in bat mostly restored
• Net effect less overall energy dissipated
• ...and therefore higher ball-bat COR
• more bounce
• Also seen in golf, tennis,

17
The Trampoline Effect A Closer Look

• hoop modes cos(2?)

Thanks to Dan Russell
ping
18
Wood vs. Aluminum Where Does the Energy Go?
19
The Trampoline Effect A Closer Look
to optimize. kbat//kball small and fhoop? gt 1
20
Softball Data and Model
essential physics understood
21
Aerodynamics of a Baseball
(in direction leading edge is turning)
CD 0.2-0.5 CL R?/v
22
Effect of Drag and Lift on Trajectories

• drag effect is huge
• lift effect is smaller but significant

23
Some Effects of Drag

• Reduced distance on fly ball
• Reduction of pitched ball speed by 10
• Asymmetric trajectory
• Total Distance ? 1.7 x distance at apex
• Optimum home run angle 30o-35o

24
Some Effects of Lift

• Backspin makes ball rise
• hop of fastball
• undercut balls increased distance, reduced
  optimum angle of home run
• Topspin makes ball drop
• 12-6 curveball
• topped balls nose-dive
• Breaking pitches due to spin
• Cutters, sliders, etc.

25
New Experiment at Illinois

• Fire baseball horizontally from pitching machine
• Use motion capture to track ball over 5m of
  flight and determine x0,y0,vx,vy,?,ay
• Use ay to determine Magnus force as function of
  v, ?

26
Motion Capture ExperimentJoe Hopkins, Lance
Chong, Hank Kaczmarski, AMN
27
Typical Motion Capture Datameasure spin, CM
trajectory
CM trajectory
Note topspin ? ay gt g
28
Results for Lift Coefficient CL
FL 1/2?ACLv2 Sr?/v 100 mph, 2000
rpm ?S0.17
Conclusion data qualitatively consistent (20)

29
Baseball AerodynamicsThings I would like to
know better

• Better data on drag
• drag crisis?
• Spin-dependent drag?
• Drag for vgt100 mph
• Dependence of drag/lift on seam orientation
• Is the spin constant?

30
Oblique CollisionsLeaving the No-Spin Zone

• Oblique ? friction ? spin
• transverse velocity reduced
• spin increased
• Familiar Results
• Balls hit to left/right break toward foul line
• Topspin gives tricky bounces in infield
• Backspin keeps fly ball in air longer
• Tricky popups to infield

demo
31
Undercutting the ball ? backspin
trajectories
vertical sweet spot
32
Putting it all TogetherCan curveball be hit
farther than fastball?

• Bat-Ball Collision Dynamics
• A fastball will be hit faster
• A curveball will be hit with more backspin

33
curveball can be hit with more backspin WHY?
Fastball spin must reverse
Net effect backspin larger for curveball
34
Can Curveball Travel Farther than Fastball?

• Bat-Ball Collision Dynamics
• A fastball will be hit faster
• A curveball will be hit with more backspin
• Aerodynamics
• A ball hit faster will travel farther
• Backspin increases distance
• Which effect wins?
• Curveball, by a hair!

35
Work in Progress

• Collision experiments calculations to elucidate
  trampoline effect
• New studies of aerodynamics
• Experiments on oblique collisions
• No data!

36
Final Summary

• Physics of baseball is a fun application of basic
  (and not-so-basic) physics
• Check out my web site if you want to know more
• www.npl.uiuc.edu/a-nathan/pob
• a-nathan_at_uiuc.edu
• Go Red Sox!
