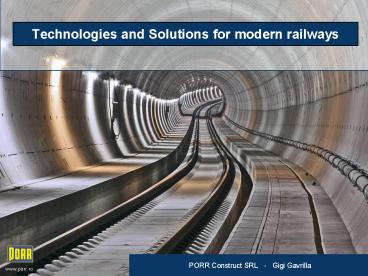

Technologies and Solutions for modern railways

1
Technologies and Solutions for modern railways

PORR Construct SRL - Gigi Gavrilla
www.porr.ro
2
Technologies and Solutions for modern railways
Overview

• Introduction of PORR Group
• Slab track system
• Anchored High Performance Netting

2
3
Technologies and Solutions for modern railways

• PORR - Group

• Leading Austrian construction company
• 140 years of tradition
• 11,880 staff and skilled workers in 16 countries
• 2,9 Billion Euro gross revenue per year
• All-in-one Investor, Planner, Constructor,
  Operator

4
Technologies and Solutions for modern railways
PORR in Europe
5
Technologies and Solutions for modern railways
Structure of PORR Group
) Industrial leadership
6

Technologies and Solutions for modern railways
PORR Tunnel Construction
7

Technologies and Solutions for modern railways
PORR Bridge Construction
8

Technologies and Solutions for modern railways
PORR Rail Construction
9

Technologies and Solutions for modern railways
PORR Construct SRL - Romania

• current projects in progress
• JV Arad Bypass highway construction
• Campina-Predeal Section railway construction
• JV Petrobrazi railway construction
• Alpha Windpark Casimcea - civil construction
• Bioremediation Plants - environmental
  construction
• Landfills - environmental construction
• Gura Humorolui Ski Slope - earth / civil
  construction
• Vatra Dornei Ski Slope - earth / civil
  construction
• Rachitele turistic access - road construction
• etc.

10
Technologies and Solutions for modern railways
PORR Slab Track Systems
11
Slab track system Why ???
Technologies and Solutions for modern railways

• Construction (space requirements,...)
• Method (sensitivity of laying,...)
• Quality (track set, acoustics,...)
• Economy

12
Technologies and Solutions for modern railways
Slab track system - Track Alignment Quality
Slab Track
13
Technologies and Solutions for modern railways
Slab track projects

• Austria Tauern Tunnel

• 10 km of slab track
• In tunnel
• Reduction of track gradient
• Increased tunnel clearance
• Construction during single-track operation

14
Technologies and Solutions for modern railways
Slab track projects

• Austria Arlberg Tunnel

• 20.8 km of slab track
• Double track old tunnel
• 3.5m between track centerlines
• Widening tunnel clearance
• Installation water supply line
• Track accessible for emergency road vehicles

15
Technologies and Solutions for modern railways
Slab track system - Experience

• Slab track system provider since 1989

• 30 slab track projects at over 270 km total
  length

• 18 projects at approx. 70 km mass-spring systems

• 50 track interface constructions at bridge joints

• Approx. 120 turnouts in slab tracks

• 6 rail expansion joints in slab track

• Slab track for heavy rail / urban railway /
  subway

• Slab track in tunnels / on bridges / on open land

16
Technologies and Solutions for modern railways
Slab track system - Advantages
Low maintenance
Settlement adjustments possible
Structural-born noise and vibration control
Repair and replacement plan
High track precision
Fast installation
Large openings possible Even surfaced concrete
quality Little reworking High added value

• High degree of prefabrication
• High early strength of SCC
• Great driving comfort
• Small construction dimensions

16
17
Technologies and Solutions for modern railways
Slope protection Anchored Netting
17
18
Technologies and Solutions for modern railways
Slope protection Anchored Netting

• Elastic-plastic Deformation
• Requires FE-Analysis
• Requires Certifications
• Future with pretensioned
• anchor systems

18
19
Technologies and Solutions for modern railways
Slope protection Anchored Netting
19
20
Technologies and Solutions for modern railways
Anchored Netting - Advantages
Flexible System
Environmental Protection
Structural-born low construction costs
Fast installation
Seeding and plants structure Low rate of work
sequences
No limitation on slope surfaces No limitation
an anchor systems Low weight of material
20
21
Technologies and Solutions for modern railways

• Thank you for your attention!
