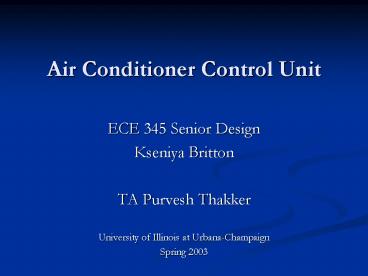

Air Conditioner Control Unit

1
Air Conditioner Control Unit

• ECE 345 Senior Design
• Kseniya Britton
• TA Purvesh Thakker
• University of Illinois at Urbana-Champaign
• Spring 2003

2
Presentation Overview

• Motivation and Objectives
• Original Design Review
• Final Design and Functional Testing
• Combined Module Testing
• Successes and Challenges
• Cost Analysis
• Future Enhancements
• Conclusion

3
Motivation

• The motivation for this design project was to
  create a logical control for wall or window air
  conditioner units. This design could be used in
  building a device that would be an external
  thermostat for a manually controlled air
  conditioner.

4
Objectives

• Benefits
• Automated control versus manual control
• Saves energy
• Economically efficient
• Features
• User-friendly interface
• Can be used as a thermometer
• Insensitive to minor temperature fluctuations
• Compact design software versus hardware

5
Original Design Review
6
Original Design Review

• Power Converter
• The component receives 120 or 220 AC volt signal
  from a wall outlet. Converts AC signal to stable
  DC voltage used to power digital circuitry.
• Digital Circuitry
• This component is the brain of the system. It
  receives inputs from the keypad and the sensor
  circuit and makes a decision whether to turn on
  or off an air conditioner. Output is provided at
  LCD.
• Switch
• Digital circuitry controls whether the switch
  passes AC current to an air conditioner.

7
Original Plan

• Design of temperature sensor differential
  amplifier circuit
• Design of AC/DC power converter circuit
• Program BX-24 microcontroller to substitute
  digital circuit module
• Integrate all the modules into a working project
• Package

8
Final Design
9
Temperature Sensor MTS 102

• VBE(T) 0.595 - 0.002265(T - 25), Temperature
  in ºC
• R1 44kO, RMTS102 6kO gt IC 0.1 mA

10
Differential Amplifier Circuit

• Vout -(R2/R1)(V2 V1), Gain R2/R1 22
• Gain was determined based on 0V lt Vout lt 5V for
  A/D
• input of BX-24

11
Test of Differential Amplifier

• Deviation from theoretical curves is due to the
  error in Rs
• Sensor_Temperature (21.84 Vout 2) for AC
  Control task

12
Keypad Circuit Design

• BitX CInt(GetPin())
• Value Bit38 Bit24 Bit12 Bit0
• DA determines when Value is ready for reading and
  when a key is released

13
Error Checking and Debouncing

• User enters the desired temperature, followed by
  the key
• Numbers lt 50ºF or gt 90ºF are not allowed gt error
  message Too Low/Hi and previous value
• Keys A, B, C, D are not allowed
• gt error message Bad Char and previous value
• Capacitor 1µF is inserted into Keybounce Mask
• Testing was done by correcting error checking
  lines to make the interface more user-friendly

14
LCD to BX-24

• Uses
• - LCD2x16API.bas
• - LCDSerialPort.bas
• Displays
• - Ambient temperature
• - User keypad input
• - Error alert
• - Message explaining error

15
LCD Testing

• The program using a separate LCDTask never worked
• The most obvious explanation was that the LCD and
  serial communications with the computer both used
  COM1
• Changing LCD output to Com2 did not fix the
  problem
• SOLUTION Since LCD collects and outputs all the
  variables from other tasks, it was better to move
  LCD code into Main. Correct temperature, keypad
  entry, and error messages were displayed

16
Air Conditioner Control
OFF
ON
Low Temp
High Temp
TK
TK 2
TK 2
(TS TK 2) AND (TSL TK 2)
(TS TK 2) AND (TSL TK 2)
NO CHANGE

• Read only every 60 seconds
• If (TS TK 2) AND (TSL TK 2) Then
• Call PutPin(OutputPin, 1)
• ElseIf (TS TK 2) AND (TSL TK 2) Then
• Call PutPin(OutputPin, 0)

17
Air Conditioner Control Testing

• TK temperature entered with the keypad (in ºF)
• TS temperature read by the sensor (in ºF)
• TLS temp. read by the sensor 120 sec ago (in
  ºF)
• Test 1
• TK 75, TS 77, TSL 76 gt OutputPin 0
• Test 2
• TK 75, TS 78, TSL 77 gt OutputPin 1
• Test 3
• TK 75, TS 73, TSL 78 gt OutputPin 1
• Test 4
• TK 75, TS 72, TSL 73 gt OutputPin 0

18
Combined Module Debugging

• During Mock-up Demo all 3 individual tasks were
  demonstrated separately and worked
• LCD task was moved to Main()
• The problem was integrating all the individual
  tasks to run together
• The main problem arose when trying to integrate
  GetSensor and GetKeypad tasks
• Two tasks worked individually however, when
  GetKeypad was introduced, the program failed

19
Solutions

• Introduced Semaphores
• Difficult to implement
• Introduced Queues
• Advantages
• Easy to implement
• Ideal for transmitting data between tasks
  (unbreakable)
• Several Queues could be use for different tasks

20
Final Result

• During the Demonstration Review my project worked
  and performed as expected
• Final Solutions
• Used Queues to manage data between tasks
• Due to unknown data sharing problem in
  multitasking GetSensor and GetKeypad tasks never
  worked together
• GetSensor task had to be moved to Main. This did
  not interrupt the design logic
• Queues were managed by checking StatusQueue

21
Successes

• Designed a differential amplifier circuit that
  had a linear output that differed from the
  theoretical output only by the error in resistors
• Created a modular design and successfully
  integrated all four modules
• Solved a problem with multitasking using Queues
  and moving two tasks inside the Main
• Demonstrated that the design performed as expected

22
Challenges

• Output of the differential circuit was too noisy
• Choice of an operational amplifier
• Debugging was difficult because it was impossible
  to output to the screen due to multitasking.
  Output was sent directly to LCD
• Integrating the four modules
• Data sharing problem with multitasking
• Communicating to the my partner

23
Cost Analysis
Estimated Actual
Labor 2.5 40/hr 120 hrs 12,000 Parts Keypad/LED 15.00 Temp Sensor 2.00 Protoboard 15.00 Misc. Chips 20.00 Total ..................52.00 Labor 2.5 40/hr 150 hrs 15,000 Parts Keypad/LCD 52.82 Temp Sensor 0.50 Protoboard 15.00 Misc. Chips 13.00BasicX Chip 49.95 Total ....................131.27
24
Future Enhancements

• Design AC/DC power converter and add a switch for
  a complete design of Air Conditioner Control
  Device
• Package to make the device marketable
• Revise optimization of cost and area, i.e.
  possibly use digital components instead of
  BasicX-24 chip
• Use more sophisticated temperature sensor
• Adapt the device for users of temperature in ºC
• Add programmable interface

25
Conclusion

• Things I have learned in ECE345
• Creative thinking for design ideas
• Programming a microcontroller
• Testing to analyze the performance
• Debugging
• Creating new solutions
• Modular design is the key!!!

26
