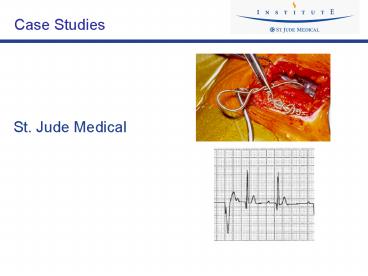

St. Jude Medical

1
Case Studies
St. Jude Medical
2
Single Chamber ECG Analysis
ECG 1
Programmed Parameters Mode..
VVI Base Rate.. 70 ppm Magnet
Response.. Battery Test Hysteresis
Rate Off ppm
T Temporary programmed value
1.0 Second
7 Mar 2000 2320
3
Single Chamber ECG Analysis
Answer ECG 1

• VVI
• Normal Capture and Sensing

4
Single Chamber ECG Analysis
ECG 2
5
Single Chamber ECG Analysis
Answer ECG 2

• VVI
• Normal Capture and Sensing with initiation of
  Hysteresis

6
Single Chamber ECG Analysis
ECG 3
7
Single Chamber ECG Analysis
Answer ECG 3

• VVI
• Loss of Ventricular Sensing

8
Single Chamber ECG Analysis
ECG 4
1.0 Second
9
Single Chamber ECG Analysis
ECG 4
10
Single Chamber ECG Analysis
Answer ECG 4

• VVI
• Normal Capture and Sensing

11
Single Chamber ECG Analysis
ECG 5
12
Single Chamber ECG Analysis
ECG 5
13
Single Chamber ECG Analysis
Answer ECG 5

• VVI
• Normal Capture
• Ventricular Undersensing

14
Single Chamber ECG Analysis
ECG 6

15
Single Chamber ECG Analysis
ECG 6

16
Single Chamber ECG Analysis
Answer ECG 6

• VVI
• Loss of Ventricular Capture
• Normal Sensing

17
Dual Chamber ECG Analysis
ECG 1
Base Rate 60 ppm MTR 120 ppm AVD 200
ms PVARP 250 ms
18
Dual Chamber ECG Analysis
Answer ECG 1

• Loss of Atrial Capture
• Normal Atrial Sensing
• Normal Ventricular Capture
• Ventricular Sensing Unknown

19
Dual Chamber ECG Analysis
ECG 2
Base Rate 60 ppm MTR 120 ppm AV 200
ms PV 150 ms Min. PV 75 ms PVARP 250 ms
20
Dual Chamber ECG Analysis
Answer ECG 2

• Normal Atrial Capture
• Normal Atrial Sensing
• Normal Ventricular Capture
• Ventricular Sensing Unknown

21
Dual Chamber ECG Analysis
ECG 3
Base Rate 60 ppm MTR 120 ppm AV 200
ms PV 150 ms PVARP 250 ms
22
Dual Chamber ECG Analysis
Answer ECG 3

• Normal Atrial Capture
• Possible Psuedofusion on 4th atrial output
• Atrial Sensing Unknown
• Loss of Ventricular Capture
• Normal Ventricular Sensing
• Functional Loss of Ventricular Sensing

23
Dual Chamber ECG Analysis
ECG 4
Base Rate 60 ppm MTR 120 ppm AV 200
ms PV 200 ms PVARP 250 ms
24
Dual Chamber ECG Analysis
Answer ECG 4

• Normal Atrial Capture
• Atrial fusion on 3rd atrial output
• Normal Atrial Sensing
• Normal Ventricular Capture
• Normal Ventricular Sensing

25
Dual Chamber ECG Analysis
ECG 5
Base Rate 60 ppm MTR 120 ppm AV 200
ms PV 200 ms PVARP 250 ms
26
Dual Chamber ECG Analysis
Answer ECG 5

• Normal Atrial Capture
• Atrial Sensing Unknown
• Normal Ventricular Capture
• Fusion on 2nd ventricular output
• Normal Ventricular Sensing

27
Dual Chamber ECG Analysis
ECG 6
Base Rate 60 ppm MTR 120 ppm AV 200
ms PV 200 ms PVARP 250 ms
28
Dual Chamber ECG Analysis
Answer ECG 6

• Normal Atrial Capture
• Atrial Sensing Unknown
• Normal Ventricular Capture
• Fusion on 2nd ventricular output
• Ventricular Sensing Unknown

29
Dual Chamber ECG Analysis
ECG 7
Base Rate 60 ppm MTR 120 ppm AV 200
ms PV 200 ms PVARP 250 ms
30
Dual Chamber ECG Analysis
Answer ECG 7

• Normal Atrial Capture
• Normal Atrial Sensing
• Normal Ventricular Capture
• Normal Ventricular Sensing

31
Dual Chamber ECG Analysis
ECG 8
Base Rate 60 ppm MTR 120 ppm AV 200
ms PV 200 ms PVARP 250 ms
32
Dual Chamber ECG Analysis
Answer ECG 8

• Normal Atrial Capture with one beat showing
  functional loss of atrial capture
• Atrial Undersensing
• Normal Ventricular Capture
• Ventricular Sensing Unknown

33
Dual Chamber ECG Analysis
ECG 9
Base Rate 60 ppm MTR 120 ppm AV 200
ms PV 200 ms PVARP 250 ms
34
Dual Chamber ECG Analysis
Answer ECG 9

• Normal Atrial Capture
• Normal Atrial Sensing
• Normal Ventricular Capture
• Normal Ventricular Sensing

35
Dual Chamber ECG Analysis
ECG 10
Base Rate 60 ppm MTR 120 ppm AV 200
ms PV 200 ms PVARP 250 ms
36
Dual Chamber ECG Analysis
Answer ECG 10

• Normal Atrial Capture
• Normal Atrial Sensing
• Normal Ventricular Capture with two beats of
  functional loss of capture
• Ventricular Undersensing

37
Dual Chamber ECG Analysis
ECG 11
Base Rate 60 ppm MTR 120 ppm AV 150
ms PV 150 ms PVARP 250 ms
38
Dual Chamber ECG Analysis
Answer ECG 11

• Atrial Capture Unknown
• Normal Atrial Sensing
• Normal Ventricular Capture
• Ventricular Sensing Unknown

39
Dual Chamber ECG Analysis
ECG 12
Base Rate 60 ppm MTR 120 ppm AV 200
ms PV 150 ms Min. PV 88 ms PVARP 250 ms
40
Dual Chamber ECG Analysis
Answer ECG 12

• Normal Atrial Capture
• Normal Atrial Sensing
• Normal Ventricular Capture
• Ventricular Sensing Unknown
• Initiation of a Pacemaker Mediated Tachycardia
  (PMT) with following a PVC

41
Dual Chamber ECG Analysis
ECG 13
Base Rate 60 ppm MTR 120 ppm AV 200
ms PV 150 ms Min. PV 88 ms PVARP 250 ms
42
Dual Chamber ECG Analysis
Answer ECG 13

• Loss of Atrial Capture initiating a Pacemaker
  Mediated Tachycardia (PMT)
• Normal Atrial Sensing
• Normal Ventricular Capture
• Ventricular Sensing Unknown

43
Dual Chamber ECG Analysis
ECG 14
Base Rate 60 ppm MTR 120 ppm AV 200
ms PV 150 ms Min. PV 88 ms PVARP 250 ms
44
Dual Chamber ECG Analysis
Answer ECG 14

• Normal Atrial Capture
• Atrial Sensing Unknown
• Normal Ventricular Capture
• Normal Ventricular Sensing
• The retrograde P-wave after the PVC is not seen
  because it falls in PVARP just like it should

45
ICD ECG Analysis
ECG 1
46
ICD ECG Analysis
ECG 1
47
ICD ECG Analysis
Answer ECG 1

• T-Wave sensing
• longer decay delay
• Threshold start higher

48
Twiddlers Syndrome
Presented with left hemi-diaphragmatic
stimulation from atrial lead
49
Twiddlers Syndrome
Courtesy of Dr. F. Venditti, Lahey Clinic, MA
50
Rib-Clavicle Crush
51
Rib-Clavicle Crush
52
Rib-Clavicle Crush
Original lead damaged by rib-clavicle crush. New
lead placed via cephalic vein cutdown
53
Myopotential Oversensing
54
Evaluation of Oversensing

• Reproduce while monitoring EGM / Event Markers
• Try to eliminate with reduced sensitivity
• Provocative maneuvers

55
Ventricular Fusion
56
Ventricular Pseudofusion
57
Loss of Capture due to Intrinsic Rise in Capture
Threshold

• Metabolic abnormalities
• Hyperkalemia ( K )
• Congestive Heart Failure
• Changes in time of day
• sleep gtgt wake
• Exercise and heart rate
• Pharmacologic agents
• Flecainide

Bipolar VVI with 2nd degree Wenckebach exit-block
due to hyperkalemia (serum K 7.3 mEq/L). Upon
correction of elevated potassium level, capture
threshold was 1.3 V _at_ 0.8 ms
58
Hysteresis

• Slower rate and pauses ONLY follow native beats
• First escape cycle followed by pacing at higher
  rate
• Management
• Education
• Disable if causing problems

Programming Base Rate 115 ppm Hysteresis
Rate 65 ppm
