Title: ETA Systems


1

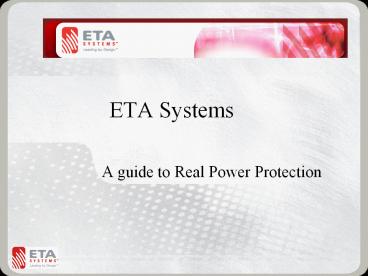

ETA Systems
  • A guide to Real Power Protection

2
Why Buy Power Protection?
  • Because AC Power is the most unpredictable part
    of you system design
  • Without AC, you system wont work
  • Unregulated AC can subject your system to voltage
    bursts (spikes and surges)
  • These can damage your system or cause it to
    operate incorrectly
  • Incoming AC voltage can vary.
  • This causes your electronics to be starved from
    the voltage they need to operate correctly

3
Why Buy Power Distribution? Continued
  • AC noise will cause irritating buzz in your
    system
  • EMI (Electro-Mechanical Interference) is caused
    when another device on the same circuit
    introduces noise.
  • Refrigerators, Air conditioners, etc.
  • The noise could even be coming from the operation
    of your neighbors electronics.
  • RFI (Radio Frequency Interference)
  • Initial Powering up of our equipment can cause a
    on rush of power can cause a breaker or fuse to
    trip or damage your electronics.

4
How Do Problems Enter a System?
Normal Mode Phase (hot) to Neutral Should be lt10
volts
Common Mode Neutral to Ground Should be lt ½ volt
5
What Devices Are Used To Solve Power Problems.
Which Device Is The Appropriate One To Use?
6
SIMPLE AS A-B-C
7
AC The Surge Diverter/Filter
Example of surge diverter/noise filter
function. Diverters and filters convert normal
mode to common mode.
8
Remember
Normal Mode Phase (hot) to Neutral Should be lt10
volts
Common Mode Neutral to Ground Should be lt ½ volt
9
B Isolation Transformer
H N/G
H N G
Isolation transformers eliminated common mode
voltage. Transformers provide a code legal way of
bonding neutral to ground.
10
Balanced Power Transformer
H N G
H G N
60 volts
60 volts
Balanced power transformers have their ground
separated from phase and neutral by 60 volts.
Neutral and ground cannot be bonded and common
mode voltage is not eliminated. Balanced power
transformers are primarily designed to eliminate
60 Hz. hum. They are not intended for
microprocessor based electronics.
11
ABC ETA Power Conditioner
H N/G
H N G
When used with a true isolation transformer with
a neutral to ground bond, surge diverters and
noise filters can do their job without creating a
common mode disturbance. The number of surge
diversion and filter elements is also greatly
reduced.
12
So What Does This Mean to Digital Equipment?
  • Digital Equipment is very sensitive
  • Digital communication is a sequence of 1s and
    0s
  • The slightest variance could cause a Errors,
    causing No Fault Found service calls
  • Digital Takes a Reference Point from Ground
  • If Noise is present on Ground, the reference is
    corrupted and errors result.

13
Remember
Normal Mode Phase (hot) to Neutral Should be lt10
volts
Common Mode Neutral to Ground Should be lt ½ volt
14
An Example of Power Line Noise
Normal Mode Noise - 1.5 volts
Common Mode Noise - 2 volts
15
Remember
Normal Mode Phase (hot) to Neutral Should be lt10
volts
Common Mode Neutral to Ground Should be lt ½ volt
16
Power Line Noise Reference
Power Quality Performance of a Furman
Sound PL8
17
Power Line Noise Reference
Power Quality Performance of a Surgex
SA966
18
Power Line Noise Reference
Power Quality Performance of an ETA
Systems PD8
19
Power Line Noise Reference
Power Quality Performance of a Furman
Sound IT1220
20
Power Line Noise Reference
Power Quality Performance of an ETA
Systems PCI-2000NA
21
Power Conditioning Products
  • PCI Series
  • Front panel LEDs for power on and no safety
    ground indications
  • Front panel power switch/circuit breaker
    (PCI-400NA and larger)
  • NEMA plug/receptacles on North American models
  • IEC320 plug/receptacles on International models
  • Optional wall mount plate for models up to
    PCI-700NA
  • Optional rack tray for PCI-400NA and larger
  • UL listed
  • Limited five-year warranty against defects in
    materials and workmanship

22
Quick Model Rundown
  • Small PCI-065NA
  • .65 Amps
  • Plenty in between
  • Large PCI-2000NA
  • 20 Amps

23
UPSNo Not the Delivery Service
  • But the UPM Series Delivers Continuous Power
  • Low-distortion sine wave inverter
  • Front-panel LED indicators for load level,
    battery charge level, voltage manager mode, on
    battery, low battery, replace battery, overload,
    and rear panel receptacle status
  • Front-panel test button
  • USB and Serial Communication Interfaces
  • RS232 port and optional Communications Manager
    software package
  • User hot swappable batteries
  • Runtime full load/half load 6 min./20 min.

24
UPM Series
Small UPM-420NA 280 Watts
Large UPM-1440NA 936 Watts
25
Dont Forget The Legacy
26
Quick RundownStandard Series Continued
  • PD8
  • 8 Outlets
  • PD8L
  • 8 Outlets and Retractable Lights
  • PD9L
  • 8 Wall Wart Sized Outlets with Retractable Lights
  • 1 Additional Outlet on the Front
  • PD11LV
  • 10 Outlets on the Back (2 Always On), 1 on the
    Front
  • Voltage Meter
  • Retractable Lights
  • PD11SS
  • 10 Outlets on the Back, 1 on the Front
  • Four-Stage Power Sequencing

27
Quick RundownStandard Series
  • Basic Features
  • Spike and Surge Protection
  • EMI/RFI Filtration
  • 15 AMP, 1800 Volt Capacity
  • Overload Protection
  • One Rack Space

28
Quick RundownProfessional Series
  • Basic Features
  • Spike and Surge Protection
  • 20 AMP, 2400 Watt Capacity
  • EMI/RFI Filtration
  • Overload Protection
  • 10 Power Cord
  • One Rack Space

29
Quick RundownProfessional Series
  • PD11P
  • 11 Outlets (10 on Back (2 Always On), 1 on Front)
  • PD11LP
  • Same As PD11P with Retractable Lights
  • PD11VP
  • Same As PD11P with Voltage Meter
  • PD11LVP
  • Same as PD11VP with Retractable Lights
  • PD11LVSP
  • Same as PD11VP with Four-Stage Sequencing
  • PD11SP
  • 9 Outlets (8 on Back, 1 on Front)

30
Quick Rundown Special Application Series
  • PD66 and PD602
  • 140 AMP Total
  • Eight 20 AMP outlets
  • Six Circuit Breaker Switches
  • Two 30 AMP Hardwire Terminal Blocks
  • Single or Three Phase Power Up
  • PD10VRS
  • 10 Outlets (2 Always On)
  • Regulates Voltage to 117 Volts
  • Voltage Meter
  • Four Stage Sequencing
  • 15 AMP, 1800 Volt Capacity
  • PD420VS
  • Three Stage Power Sequencing
  • Voltage Meter
  • Unlimited Linking of Multiple Units
  • Four 20 AMP Circuits with Front Panel Resets
  • 80 AMP, 9600 Watt Capacity
  • Volt Meter

31
ETAProfessional Power Protection
  • REAL Power Protection!

32
Questions ?
