Evaluation of Biometric Identification Systems

1

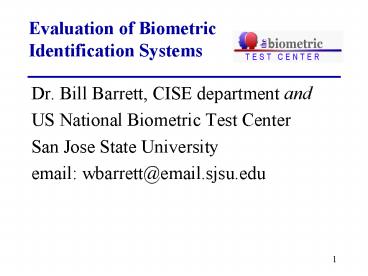

Evaluation of Biometric Identification Systems

• Dr. Bill Barrett, CISE department and
• US National Biometric Test Center
• San Jose State University
• email wbarrett_at_email.sjsu.edu

2
The Biometric Test Center

• Funded by several federal agencies
• Centered in a disinterested university setting
• Provide objective evaluations of commercial
  biometric instruments
• Provide consulting services to sponsors regarding
  the most effective application of biometric
  instruments
• No funds accepted from vendors
• No independent competing research

3
Summary of Presentation

• Three Basic Biometric Operations
• Measures of effectiveness - the ROC curve
• Comparison Rate Measures
• Collection Variables
• Evaluation strategies
• Testing issues
• Some results
• Conclusion

4
Three Basic Biometric Operations
5
The Three Biometric Operations

• Enrollment first time in.
• Verification does this credit card belong to
  this person?
• Identification who is this person, anyway?

6
Enrollment
7
Verification
8
Identification
9
COMPARE operation

• Yields a DISTANCE measure between candidate C and
  template T
• d distance(C, T)
• d LARGE C probably is NOT T
• d SMALL C probably IS T
• NOTE is reversed for fingerprints

10
Distance Measures

• Euclidean
• Hamming
• Mahalonobis

11
Variations on the basic measurement plan

• 3 strikes and youre out
• Multiple templates of same person
• Template replacement over time
• Template averaging
• Binning

12
Binning

• Find some way to segment the templates, e.g.
• male/female
• particular finger
• loop vs. whorl vs. arch
• May have to include the same template in
  different bins
• Improves search performance, may reduce search
  accuracy (more false non-matches)

13
Measures of Effectiveness
14
Distributions of Large Ensemble of Candidates
15
Integrated Distributions
16
Cross-over Threshold

• tc cross-over threshold
• where probability of false match I
  probability of false rejection A

17
Changing the Device Threshold

• td gt tc reduces false rejection A
  increases false match I (bank ATM choice)
• td lt tc increases false rejection
  A reduces false match I (prison guard choice)

18
The d-prime Measure

• Measures the overall quality of a biometric
  instrument.
• d usually in the range of 2 to 10, logarithmic,
  like the Richter Scale.
• Assumes normal distribution.

19
Comparison Rate Measures
20
Penetration Rate

• Percentage of templates that must be individually
  compared to a candidate, given some binning.
• Search problem usually exhaustive search, with
  some comparison algorithm, no reliable tree or
  hash classification.
• Low penetration rate implies faster searching

21
Example fingerprints

• AFIS (FBI automated classification system)
  classifies by
• Left loop/ right loop
• Arch/whorl
• Unknown
• Then
• Exhaustive search of the subset of prints

22
Jain, Hong, Pankanti Bolle, An
Identity-Authentication System Using
Fingerprints, Proc. IEEE vol. 85, No. 9, Sept.
1997
23
Bin Error Rate

• Probability that a search for a matching template
  will fail owing to an incorrect bin placement
• Related to confidence in the binning strategy
• AFIS Bin error typically lt 1

24
Collection Variables
25
Collection Variables

• Physical variations during biometric collection
  that may change the measurement
• Translation/scaling/rotation usually compensated
  in software
• Tend to increase the width of the authentics
  distribution, and thus
• ...make it easier to get a false rejection
• ...cause a smaller d

26
Liveness Issue

• Can the device detect that the subject is live?
• Fake face recognition with a photograph?
• ...or a rubber print image (fingerprint)?
• ...or a glass eye (iris encoding)?

27
Collection Variables -- Fingerprints

• Pressure
• Angle of contact
• Stray fluids, film buildup
• Liveness

28
Collection Variables - Hand Geometry

• Finger positioning (usually constrained by pins)
• Rings
• Aging
• Liveness

29
Collection Variables -Iris Identification

• Lateral angle of head
• Focus quality
• Some people have very dark irises hard to
  distinguish from pupil
• Outer diameter of iris difficult to establish
• Eyelids, lashes may interfere
• NO sunglasses
• Liveness can be established from live video

30
Collection Variables -Palm Print

• Pressure
• Stray fluids, film buildup
• Liveness

31
Collection Variables -Face Recognition

• 3D angles
• Lighting
• Background
• Expression
• Hairline
• Artifacts (beard, glasses)
• Aging
• Liveness smiling, blinking

32
Collection Variables -Voice Recognition

• Speed of delivery
• Articulation
• Nervousness
• Aging
• Laryngitis
• Liveness choose speech segments for the user to
  repeat, i.e. Say 8. Say Q. Say X

33
Example - Miros Face Recognition System

• Lighting is specified
• Static background, subtracted from candidate
  image to segment face
• Camera mounted to a wall - standing candidate
• Height of eyes above floor used as an auxiliary
  measure
• Verification only recommended
• Liveness - can be fooled with a color photograph

34
Example - FaceitTM Face Recognition System

• No particular lighting specified it expects
  similar lighting expression of candidate and
  template
• Face segmented from background using live video
• Face lateral angles not well tolerated
• Liveness blinking, smiling test

35
Evaluation Strategies
36
Common Factors

• Bio capture easy to capture the full image
• Bio encoding algorithm often proprietary
• Bio encoding usually proprietary
• Database distance may be proprietary

37
Convenience Factors

• Many are concerned about intrusiveness
• Some are concerned about touching
• What is the candidates learning curve?
• ...device may require some training

38
Collecting a Template Database for Testing

• Precise identity code registration
• Getting plenty of variety gender, age, race
• Getting many images of same identity
• Getting many different images
• Significant time frame

39
Practical Databases

• Many large template databases with unique
  identities single images available
• Many large databases with inaccurate identity
  correlation
• Many databases with limited diversity
• Difficult to collect data over time

40
Some Results
41
Hand Geometry for INSPASS

• INSPASS INS Passenger Accelerated Service System
• Collected 3,000 raw transaction records
• Unique individuals in database (separate magnetic
  identity card)
• ...from three international airports
• Statistical modelling is suspect for this data
• Experimental d is 2.1 equal error rate 2.5

42
J. L. Wayman, Evaluation of the Inspass Hand
Geometry Data, 1997
43
FaceitTM General Comments

• Supported by a flexible Software Development Kit
  (SDK), using Microsoft Visual CTM
• Several example applications
• Well documented
• Can use any video camera
• Segments a face with motion video
• Liveness smile or eye blink

44
FaceitTM Face Recognition

• No lighting conditions specified
• No background conditions specified
• Multiple faces can be segmented
• The database includes full images, with default
  limit of 100 templates
• Image conversion and code comparison is
  separated, therefore is testable

45
FaceitTM Face Recognition
46
FaceitTM Study Summary

• Done by senior computer engineering students
• Not a fully diversified, controlled experiment
• 50 different persons, 10 images each
• Overall time frame 2 months
• Equal error rate crossover point 5.5

47
MirosTM Face Recognition

• Designed for verification
• Lighting conditions specified
• Static background - system takes snapshot of
  background, uses it to segment a face
• Keyboard code plus two images
• Double image helps liveness
• Software Development Kit similar to Faceit
• Equal crossover error rate 5

48
IriscanTM Recognition System

• Based on a patent by John Daugman, US 5,291,560,
  Mar. 1, 1994
• Uses iris patterns laid down a few months after
  birth. Claims no significant aging over
  lifespan.
• Claims high d, yielding cross-over error rate lt
  1 in 1.2 million
• Claims high rate of code comparison. Hamming
  distance. 100,000 IrisCodes/second on a PC.

49
IrisScanTM Performance
Face Recognition, Spring-Verlag 1998
50
IriscanTM Observations

• Capture equipment more expensive
• zoom / telephoto / swivel robotics / autofocus
• Question of conversion and code standardization
  most of the system is proprietary
• Liveness
• Promises to have the highest discrimination of all

51
Conclusions

• Need for independent evaluation of biometric
  devices is clear
• Adequate testing usually requires a special
  version of the software
• Acquiring a suitable database is difficult
• Proprietary software means black-box testing,
  therefore less conclusive

52
Web Sites

• Author
• http//www.engr.sjsu.edu/wbarrett/
• Biometrics Test Center
• http//www.engr.sjsu.edu/biometrics/
