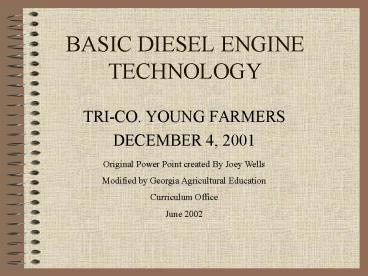

BASIC DIESEL ENGINE TECHNOLOGY

1
BASIC DIESEL ENGINE TECHNOLOGY

• TRI-CO. YOUNG FARMERS
• DECEMBER 4, 2001

Original Power Point created By Joey Wells
Modified by Georgia Agricultural
Education Curriculum Office June 2002
2
INTRODUCTION

• THE DIESEL ENGINE IS USED AS A SOURCE OF POWER
  FOR THOUSANDS OF APPLICATIONS.

3
WHO INVENTED THE DIESEL ENGINE?

• 1895 RUDOLPH DIESEL SUCCESSFULLY INVENTED AN
  ENGINE THAT BURNED COAL DUST INJECTED BY
  PRESSURIZED AIR. THE DIESEL ENGINE WAS BORN.

4
WHO DEVELOPED THE FIRST MASS PRODUCED INJECTION
PUMP?

• ROBERT BOSCH IN 1927

5
USES OF DIESEL ENGINES

• TODAY, DIESEL ENGINES ARE USED TO PROVIDE POWER
  IN A VARIETY OF APPLICATIONS IN MANY INDUSTRIES

6
THERE ARE SIX MAJOR USES OF DIESEL ENGINES
7
AGRICULTURE/FARM
8
TRANSPORTATION
9
CONSTRUCTION
10
FORESTRY
11
MARINE
12
ELECTRICAL GENERATION PLANTS
13
SEVEN ADVANTAGES OF DIESEL ENGINES

• MORE EFFICIENT AND ECONOMICAL TO USE
• FUEL VAPOR IS NOT EXPLOSIVE
• EXHAUST GASES ARE LESS POISONOUS LESS CARBON
  MONOXIDE
• GREATER LUGGING POWER AND TORQUE

14
ADVANTAGES CONTINUED

• ENGINES ARE DURABLE AND IF PROPERLY CARED FOR
  WILL MAINTAIN THEIR ECONOMY
• FUEL IS LESS VOLATILE NO VAPOR LOCK PROBLEMS
• CAN USE A VARIETY OF FUELS AND MIXTURES

15
FIVE DISADVANTAGES OF DIESEL ENGINES

• ENGINES MUST BE STONGER AND HEAVIER BECAUSE OF
  HIGHER COMPRESSION RATES
• INITIALLY MORE EXPENSIVE
• FUEL COULD GEL IN COLDER CLIMATES
• GENERALLY NOISER OPERATION
• VERY PUNGENT EXHAUST ODOR

16
INTERNAL COMBUSTION ENGINE

• AN ENGINE THAT PRODUCES POWER BY BURNING FUEL
  INSIDE A COMBUSTION CHAMBER WITHIN THE ENGINE

17
TWO TYPES OF INTERNAL COMBUSTION ENGINES
18
SPARK IGNITION ENGINE
19
COMPRESSION IGNITION ENGINE
20
TRUE OR FALSE SPARK PLUGS SHOULD BE CHANGED
MORE OFTEN IN DIESEL ENGINES THAN IN GASOLINE
ENGINES?

• FALSE

21
BASICALLY, HOW DOES A SPARK-IGNITION ENGINE WORK?

• LIQUID FUEL BROKEN DOWN INTO A FINE SPRAY AND
  MIXED WITH AIR IN THE CARBURETOR.
• FUEL-AIR MIXTURE PIPED TO THE CYLINDER WHERE IT
  IS IGNITED BY AN ELECTRIC SPARK FROM THE SPARK
  PLUG.

22
HOW DOES A COMPRESSION-IGNITION ENGINE WORK?

• NO SPARK IS NEEDED
• LIQUID FUEL UNDER VERY HIGH PRESSURE IS INJECTED
  DIRECTLY INTO THE CYLINDER WHICH IS FILLED WITH
  HIGHLY COMPRESSED AIR.
• IGNITION BEGINS WHEN THE FUEL HITS THE AIR THAT
  IS AT A TEMPERATURE OF 777 DEGREES F.

23
WHAT DOES A COMPRESSION RATIO OF 161 MEAN?

• THE AIR IN A CYLINDER IS COMPRESSED INTO 1/16 THE
  SPACE AT THE TOP OF THE STROKE AS COMPARED TO THE
  BOTTOM OF THE STROKE

24
TRUE OR FALSE DIESEL ENGINES USE GREATER
COMPRESSION RATIOS THAN GASOLINE ENGINES?

• TRUE
• DIESEL ENGINES 161 TO 221
• GASOLINE ENGINES 81

25
TRUE OR FALSE DIESEL ENGINES REQUIRE MORE AIR
THAN GASOLINE ENGINES

• TRUE

26
TRUE OR FALSE DIESEL ENGINES HAVE NO IGNITION
SYSTEM COMPONENTS

• TRUE
• NO SPARK PLUGS, COIL, MAGNETO, DISTRIBUTOR, OR
  WIRING

27
TRUE OR FALSE DIESEL ENGINES, LIKE GASOLINE
ENGINES, DRAW IN FUEL AND AIR ON THE INTAKE
STROKE?

• FALSE
• ONLY AIR IN A DIESEL ENGINE

28
WHAT IS THE PURPOSE OF A TURBOCHARGER ON A DIESEL
ENGINE?

• TO INCREASE THE AIR INTAKE INTO THE CYLINDERS

29
TRUE OR FALSE DIESEL ENGINES REQUIRE A HIGH
PRESSURE PUMP TO INJECT THE FUEL INTO THE
COMPRESSED AIR IN THE CYLINDER?

• TRUE

30
WHAT IS THE NAME OF THE ENGINE PART THAT SPRAYS
FUEL INTO THE CYLINDER OF A DIESEL ENGINE?

• INJECTOR NOZZEL

31
WHAT TYPE MATERIAL ARE FUEL LINES MADE OF IN A
DIESEL ENGINE? WHY?

• STEEL
• PRESSURES FROM 5,000 TO 20,000 PSI ARE INVOLVED

32
TRUE OR FALSE GASOLINE IS LESS VOLATILE THAN
DIESEL FUELS

• FALSE
• GASOLINE EVAPORATES READILY AND IS VERY EXPLOSIVE

33
TRUE OR FALSE GASOLINE ENGINES ARE HEAVIER THAN
DIESEL ENGINES OF THE SAME HORSEPOWER?

• FALSE
• HIGH DIESEL CYLINDER PRESSURES REQUIRE HEAVIER
  MATERIALS

34
HOW IS ENGINE SPEED CONTROLLED IN A DIESEL
ENGINE?

• THE THROTTLE CONTROL REGULATES ONLY THE AMOUNT OF
  FUEL INJECTED INTO THE CYLINDER
• THE THROTTLE CONTROL IN A GASOLINE ENGINE
  REGULATES THE AMOUNT OF AIR/FUEL MIXTURE ALLOWED
  INTO THE CYLINDER

35
HOW ARE DIESEL ENGINES STOPPED?

• BY SHUTTING OFF THE FUEL TO THE CYLINDERS BY A
  MANUAL CONTROL OR SOLENOID SWITCH
• GASOLINE ENGINES ARE STOPPED BY CUTTING OFF THE
  SPARK FROM THE SPARK PLUGS TO THE CYLINDERS

36
HOW AN ENGINE WORKS
37
WHAT ARE THE FIVE BASIC PARTS OF ANY ENGINE?
38
NAME THE TWO BASIC TYPES OF ENGINES

• FOUR STROKE CYCLE ENGINE
• TWO STROKE CYCLE ENGINE

39
WHAT SEQUENCE OF EVENTS MAKE UP A CYCLE?

• INTAKE
• COMPRESSION
• POWER
• EXHAUST
• WHAT IS A STROKE?
• ONE MOVEMENT OF THE PISTON

40
FOUR STROKES OF AN ENGINE
41
HOW MANY TIMES DOES THE CRANKSHAFT REVOLVE DURING
A CYCLE IN A FOUR STROKE CYCLE ENGINE?

• TWO

42
WHAT ARE THE MAJOR DIFFERENCES IN EACH
STROKE WHEN COMPARING A DIESEL ENGINE WITH A
GASOLINE ENGINE?

• INTAKE
• AIR VS. AIR/FUEL MIXTURE

43
DIFFERENCES CONTINUED

• COMPRESSION STROKE
• COMPRESSION RATIO
• POWER STROKE
• SPARK PLUG VS. HEAT OF COMPRESSION
• EXHAUST STROKE
• SAME FOR BOTH

44
TWO-STROKE CYCLE ENGINES
45
HOW MANY STROKES OF THE PISTON ARE REQUIRED FOR A
CYCLE TO BE COMPLETED IN A TWO STROKE CYCLE
ENGINE?

• TWO

46
WHAT HAPPENS DURING STROKE 1 IN A TWO STROKE
CYCLE GASOLINE ENGINE?

• THE UPSTROKE OF THE PISTON COMPRESSES THE
  AIR/FUEL MIXTURE. (COMPRESSION STROKE)
• AT THE SAME TIME, A NEW AIR-FUEL MIXTURE IS DRAWN
  INTO THE CRANKCASE. (INTAKE STROKE)

47
WHAT HAPPENS DURING STROKE 2 OF A TWO STROKE
CYCLE GASOLINE ENGINE?

• THE DOWNWARD STROKE (POWER STROKE) OF THE PISTON
  CAUSES THE BURNED GASES TO ESCAPE THROUGH THE
  EXHAUST PORT. (EXHAUST STROKE)
• NEW FUEL-AIR IS FORCED INTO THE CYLINDER

48
TWO-STROKE CYCLE GASOLINE ENGINES
49
WHAT ARE THE DIFFERENCES BETWEEN A DIESEL AND
GASOLINE TWO-STROKE CYCLE ENGINE?

• DIESEL ENGINES INJECT FUEL INTO THE CYLINDER
  THROUGH A FUEL INJECTOR
• A BLOWER IS OFTEN USED TO FORCE AIR INTO THE
  CYLINDER
• DIESEL ENGINES HAVE EXHAUST VALVES, GAS ENGINES
  HAVE A PORT

50
TWO-STROKE DIESEL ENGINE
51
THE DIESEL AIR SYSTEM
52
BASIC PARTS OF THE DIESEL AIR SYSTEM
53
WHAT IS A TURBOCHARGER ON A DIESEL ENGINE?

• A CENTRIFUGAL BLOWER THAT IS DRIVEN BY EXHAUST
  GASES WHICH FORCES MORE AIR INTO THE CYLINDER.
  INCREASES POWER

54
HOW IMPORTANT IS KEEPING AIR FILTERS CLEAN?

• VERY IMPORTANT
• A DIESEL ENGINE USES 12-15,000 GALLONS OF AIR TO
  EACH GALLON OF FUEL

55
NAME THREE TYPES OF AIR CLEANERS

• OIL-BATH TYPE CLEANER
• PRE-CLEANER
• DRY-TYPE AIR CLEANER

56
THE DIESEL FUEL SYSTEM
57
WHAT ARE THE FIVE BASIC PARTS OF A DIESEL FUEL
SYSTEM?

• INJECTION NOZZLES
• INJECTION PUMP
• FILTERS
• TRANSFER PUMP
• FUEL TANK

58
THE DIESEL FUEL SYSTEM
59
DIESEL FUEL, LIKE GASOLINE IS A PRODUCT OF THE
DISTILLATION OF-

• CRUDE OIL

60
100 GALLONS OF CRUDE OIL WILL YIELD WHAT
PRODUCTS?

• GASOLINE 44 GALLONS
• DIESEL FUEL 36 GALLONS
• MISC. 9 GALLONS
• KEROSENE 6 GALLONS
• LUBRICANTS 3 GALLONS
• LOSS 3 GALLONS

61
WHAT ARE THE THREE GRADES OF DIESEL FUEL?

• NUMBER 1 DIESEL FUEL (NO. 1-D)
• RECOMMENDED FOR COLD WEATHER. REMAINS FLUID FOR
  EASIER STARTING
• BUSES, CARS, TRUCKS, FARM TRACTORS
• NUMBER 2 DIESEL FUEL (NO. 2-D)
• HEAVY WORK LOADS. BUSES, TRUCKS, FARM EQUIPMENT
• NUMBER 4 DIESEL FUEL (NO. 4-D)
• OCEAN GOING VESSELS WITH LOW-MEDIUM SPEED ENGINES

62
THE DIESEL COOLING SYSTEM
63
WHAT ARE TWO PRIMARY TYPES OF COOLING SYSTEMS FOR
DIESEL ENGINES?

• LIQUID COOLING
• AIR-COOLING

64
LIQUID COOLING ENGINE
65
AIR-COOLED DIESEL ENGINE
66
WHAT IS THE IDEAL OPERATING TEMPERATURE FOR
MOST DIESEL ENGINES?

• 165 185 DEGREES F.

67
WHAT ARE SOME EFFECTS OF ENGINE OVERHEATING?

• CYLINDER HEAD AND BLOCK CAN CRACK OR WARP
• RINGS AND VALVES MAY SEIZE OR STICK DUE TO GUMS,
  LAQUERS, AND VARNISHES FORMING FROM OVERHEATED
  OIL AND CARBON FORMATION
• BEARINGS MAY BE DAMAGED CAUSING EXCESSIVE WEAR

68
WHAT ARE SOME EFFECTS OF OVERCOOLING?

• INCREASED ENGINE WEAR
• IMPROPER LUBRICATION
• INCREASED FUEL CONSUMPTION
• INCREASED SLUDGE FORMATION
• INCREASED ENGINE CORROSION
• MOISTURE CONDENSES IF BELOW 140 DEGREES IN THE
  ENGINE CRANKCASE

69
WHAT ARE SOME ADVANTAGES OF AIR-COOLED ENGINES

• LESS WEIGHT
• LESS MAINTENANCE
• LESS DOWN-TIME
• NO CAVITATION EROSION
• NO COOLANT CONCERNS
• MORE EFFICIENT USE OF POWER
• LESS VULNERABLE TO DAMAGE
• LESS BULK
• QUICKER WARM-UP

70
WHAT ARE SOME DISADVANTAGES TO AIR-COOLED
ENGINES?

• LENGTH OF THE ENGINE
• LESS TEMPERATURE CONTROL
• HIGHER OPERATING TEMPERATURES
• GREATER NOISE
• MORE FREQUENT CLEANING

71
THE DIESEL LUBRICATION SYSTEM
72
WHAT ARE THE FUNCTIONS FOR THE LUBRICATION
SYSTEM?

• REDUCES SHOCK, WEAR, AND FRICTION
• SEALS COMPRESSION
• PROVIDES SOME CLEANING
• HELPS COOL THE ENGINE
• QUIETS THE ENGINE OPERATION

73
TRUE OR FALSE MOST OF THE LUBRICANTS USED IN
DIESEL ENGINES COME FROM PETROLEUM?

• TRUE

74
WHAT ARE LUBRICANTS DERIVED FROM ANIMAL OR
VEGETABLE OILS CALLED?

• SYNTHETIC OILS

75
WHAT TWO CHARACTERISTICS ARE MOST IMPORTANT IN
CHOOSING PROPER OIL?

• VISCOSITY
• SERVICE CLASSIFICATION

76
WHAT IS VISCOSITY?

• A MEASURE OF A LIQUIDS RESISTANCE TO FLOW
• HIGHER TEMPERATURE DECREASE IN VISCOSITY
• SOCIETY OF AUTOMOTIVE ENGINEERS (SAE) DEVELOPED
  NUMBERING SYSTEM

77
WHAT ARE THE VISCOSITY GRADES?
78
API ENGINE OIL SERVICE CATEGORIES

• AMERICAN PETROLEUM INSTITUTE
• TABLE 1 (HANDOUT)

79
WHAT ARE THE THREE MOST COMMON OIL ADDITIVES?

• OXIDATION INHIBITORS
• CORROSION AND RUST INHIBITORS
• DETERGENT DISPERSANTS

80
HOW DO DETERGENT ADDITIVES WORK?
81
PRINCIPLES OF FLUID HYDRAULICS
82
HYDRAULIC SYSTEMS ON A TRACTOR
83
WHAT IS PASCALS LAW OF HYDRAULICS?

• PRESSURE ON A LIQUID IN A CONTAINER IS
  TRANSFERRED EQUALLY TO ALL SURFACES

84
PASCALS LAW
85
PRESSURE TRANSFER IN HYDRAULIC BRAKES
86
CHANGING THE PRESSURE IN A HYDRAULIC SYSTEM
