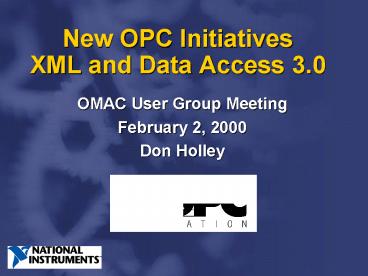

New OPC InitiativesXML and Data Access 3.0

• OMAC User Group Meeting
• February 2, 2000
• Don Holley

2
OPC Leverages Commercial Technology to Provide
Industry-Standard Connectivity

• OPC is based on Microsoft technology
• Windows DNA for Manufacturing
• COM DCOM
• ActiveX
• Most successful COM based industry initiative
• Addresses discrete and process manufacturing
  applications
• Worldwide industry-standard
• Supported by 250 companies
• 450 OPC products shipping

3
Why Do We Need OPC?
Display Application
Trend Application
Report Application
Software Driver
Software Driver
Software Driver
Software Driver
4
OPC Interface Solves the Problem
OPC
OPC
OPC
OPC
Software Driver
Software Driver
Software Driver
Software Driver
5
OPC Current Technology

• Todays OPC Specifications
• Data Access 2.0
• Alarm and Events 1.0
• Historical Data Access 1.0
• OPC Work in Progress
• Batch
• Security
• Compliance
• Windows CE
• Java
• White paper

6
OPC Foundation New Initiatives

• OPC XML Working Group
• Chair is Al Chisholm Intellution
• OPC Data Access 3.0 Working Group
• Chair is Don Holley National Instruments

7
Data Access 3.0 Versus XMLApplication Focus
X M L
Loosely Coupled Systems
D A 3 0
Tightly Coupled Systems
8
OPC XML Working Group

• Al Chisholm

9
A Logical Progression

• COM works extremely well between applications on
  a local node.
• DCOM works well between nodes on a LAN
• XML works well on Intranets, Internets and non NT
  platforms as well as with middle upper level
  applications (SAP, ORACLE, etc)

Application
OPC-XML
OPC-XML
Application
OPC-COM
OPC-COM
Measurement Control Devices
10
The OPC XML Mission

• To develop flexible, consistent rules and formats
  for exposing plant floor data using XML
• To continue to enable interoperability of
  applications and data sharing between automation
  and enterprise systems
• To leverage the work done by Microsoft and others
  on Biztalk.
• To provide samples and examples as needed to help
  vendors understand and leverage this technology.

11
OPC XML Working Group Status
The first OPC XML working group meeting will be
held in the Boston area on March 28 and 29,
2000. Contact Al Chisholm achisholm_at_intellution.co
m
12
OPC Data Access 3.0 Working Group

• Don Holley

13
The OPC Data Access 3.0 Mission

• The OPC TSC established the Data Access 3.0
  Working Group with a goal to achieve the
  following objectives
• Extend Data Access 2.0 to address
• Reading and Writing Complex Data Types
• Invoking Commands
• OPC Data Access 2.0 Enhancements
• Evaluate Proposal to Address SoftPLC
  Application Requirements with Data Access 3.0
• Small Footprint
• No Memory Allocation
• Very High Performance
• Simple to Implement

14
OPC Complex Data Problem
How to support advanced measurement devices,
industrial networks and factory automation
equipment whose data is not well represented by
standard OPC data types?
15
Applications Requiring Complex Data Type Support

• DCS, PLCs Fieldbuses
• CNC and Robotics
• Continuous Gauging
• Vibration Monitoring
• Machine Vision

16
OPC DA 3.0 Working Group Status

• Action Items from Initial Meeting
• Develop User Scenarios
• Review Existing and Emerging Specifications for
  Information

The next OPC DA 3.0 working group meeting will be
held in Austin, TX on April 4 and 5,
2000. Contact Don Holley don.holley_at_ni.com
17
For more information...

• www.opcfoundation.org
