Title: UNIT: Oxy-Acetylene; Welding, Brazing, Cutting and Heating

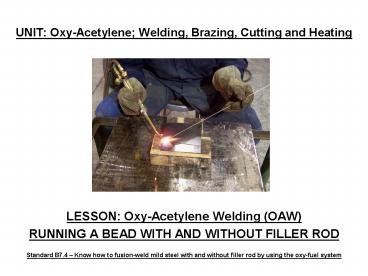

1
UNIT Oxy-Acetylene Welding, Brazing, Cutting
and Heating
  • LESSON Oxy-Acetylene Welding (OAW)
  • RUNNING A BEAD WITH AND WITHOUT FILLER ROD
  • Standard B7.4 Know how to fusion-weld mild
    steel with and without filler rod by using the
    oxy-fuel system

2
The Welding Flame
  • A chief advantage of the oxy-acetylene flame is
    its high operating temperatures.
  • This oxy-acetylene flame can easily melt all
    common metals.
  • The proper mixture of oxygen and acetylene burns
    at 5,589 degrees Fahrenheit, which makes it the
    hottest oxy-fuel gas flame.

3
Types of Flames
  • Three types of flames can be produced with the
    oxy-acetylene torch carburizing, neutral, and
    oxidizing.
  • The operator must be able to recognize each type
    of flame by its size, shape, and color.
  • The operator must also master the adjustment of
    the oxygen and acetylene hand valves on the
    welding torch to produce the desired flame.

4
Carburizing Flame
  • Flame contains more acetylene than oxygen.
  • This flame is easy to recognize by the outer
    flame, which has a slim bluish taper with an
    orange tip.
  • Inside this outer flame is a shorter, blue flame
    called the acetylene feather.
  • Flame has a lower temperature than the neutral
    flame.
  • Flames are sometimes used for silver brazing,
    braze welding, and soldering.

5
Neutral Flame
  • The neutral flame is produced by a proper balance
    of oxygen and acetylene.
  • It is approximately 5,589 degrees Fahrenheit and
    is the most widely used of the three types of
    flames.
  • As the flame is adjusted from a carburizing flame
    to neutral flame by adding more oxygen, the light
    blue acetylene feather disappears.
  • At the same time, the brilliant inner cone
    becomes slightly shorter and more sharply
    defined.

6
Neutral Flame - Cont.
  • When a neutral flame is directed upon a steel
    surface, the metal melts slowly.
  • The molten metal does not boil and few sparks
    appear.
  • The neutral flame protects the molten steel from
    oxidation, and the weld joint is not burned.
  • Extremely strong welds are produced from this
    flame.

7
Oxidizing Flame
  • Flame contains more oxygen than acetylene.
  • Is similar to the shape of the neutral flame,
    however the inner cone of the oxidizing flame is
    more pointed, shorter, and purple.
  • The flame can also be distinguished from the
    neutral flame by a loud hissing sound caused by
    the excess rush of oxygen.

8
Oxidizing Flame Cont.
  • This flame has very little practical use in
    welding.
  • Its temperature may reach 6,300 degrees
    Fahrenheit, but the oxides that form when the
    excess oxygen combines with the molten metal
    cause problems with the weld.
  • Such problems include brittleness, weakness, and
    hardening around the weld.

9
Characteristics of the Three Welding Flames
10
Holding the Torch
  • A torch may be held in either one of two ways,
    depending on which is the more comfortable for
    you.
  • When welding light-gauge metal (under 14 gauge),
    most operators prefer to grasp the handle of the
    torch with the hose over the outside of the
    wrist, in the same manner a pencil ordinarily is
    held.
  • In the other grip, the torch is held like a
    hammer, with the fingers lightly curled
    underneath.
  • In either case the torch should balance easily in
    the hand to avoid fatigue.

Pencil Grip Method
Hammer Grip Method
11
Pushing a Puddle
  • Hold the torch so the flame points in the
    direction you are going to weld and at an angle
    of about 45 degrees with the completed part of
    the weld.
  • If you are right handed, start the weld at the
    right edge of the metal and bring the inner cone
    of the neutral flame to within 1/8 of the
    surface of the plate.
  • The left-handed person reverses this direction.
  • Hold the torch still until a pool of molten metal
    forms.
  • Then move (push) the puddle across the plate.

12
Pushing a Puddle Cont.
  • As the puddle travels forward, rotate the torch
    to form a series of overlapping ovals or circles
    (forming a bead)
  • Do not move the torch ahead of the puddle, but
    slowly work forward, giving the heat a chance to
    melt the metal.
  • If the flame is moved forward too rapidly, the
    heat fails to penetrate far enough and the metal
    does not melt properly.
  • If the torch is kept in one spot too long, the
    flame will burn a hole through the metal.

13
Laying a bead with filler rod
  • On some types of joints (outside corner welds) it
    is possible to weld the two pieces of metal
    without adding metal from a filler rod.
  • The use of a filler rod requires coordination of
    the two hands.
  • One hand must manipulate the torch to carry a
    puddle across the plate, while the other hand
    must add the correct amount of filler rod.
  • In most instances the use of a filler rod is
    advisable because it builds up the weld, thereby
    adding strength to the joint.
  • The strength of a weld depends largely on the
    skill with which the rod is blended, or
    interfused, with the edges of the base metal.

14
Selecting the filler rod
  • Filler rods come in a variety of sizes ranging
    from 1/16 to 3/8 in diameter.
  • The size of rod to use will depend largely upon
    the thickness of the metal being welded.
  • The general rule is to use a rod with a diameter
    equal to the thickness of the base metal.
  • In other words, if a 1/16 metal is being welded,
    a 1/16 diameter rod should be used.

15
Laying a bead with filler rod Cont.
  • The torch is held at an angle of approximately 45
    degrees to the base metal, hold the rod at
    approximately the same angle as the torch but
    slant it away from the torch.
  • Move the torch tip over the starting edge and
    rotate the flame near the metal in a circular or
    semicircular motion until the base metal melts
    into a small puddle.
  • Once a small pool of the base metal is
    established, dip the tip of the rod in the molten
    pool.
  • ALWAYS DIP THE ROD IN THE CENTER OF THE MOLTEN
    POOL.

16
Laying a bead with filler rod Cont.
  • The molten puddle will melt the rod and add to
    the puddle, as the rod melts in the pool, advance
    the torch forward.
  • Concentrate the flame on the base metal and not
    on the rod.
  • Do not hold the rod above the pool. If you do
    this the molten metal will fall through the air
    to the puddle.
  • When this happens it combines with the oxygen in
    the air and part of it burns up, causing a weak,
    porous weld.

17
Common Difficulties with Laying a Bead with
Filler Rod .
  • The beginner often experiences difficulty in
    holding the welding rod steady which can cause
    the rod to stick to the base metal
  • Instead of inserting the rod in the middle of the
    puddle where the heat is sufficient to melt it
    readily, a beginner generally inserts the rod
    near the edge of the pool where the temperature
    is lower. The heat at the edge is not enough to
    melt the rod and the rod will likely stick to the
    base metal.
  • If the rod sticks to the base metal, do not try
    to jerk it loose.
  • Simply place the flame directly over the tip of
    the rod and the rod will be freed immediately.

18
Laying a bead with filler rod Cont.
  • The circular or semicircular motion should be
    advanced approximately 1/16 per motion until the
    end of the joint is reached.
  • Since the angle of the tip flame is preheating
    the metals ahead of the weld, the last ½ of weld
    is critical.
  • Slightly raise the welding tip and increase the
    addition of filler rod to insure a full smooth
    weld.

19
Bead with filler rod
  • Bead with Filler Rod
  • Push a Puddle (No filler rod)
