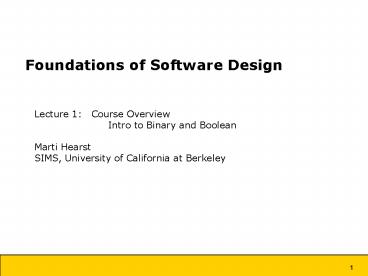

Foundations of Software Design

1
Foundations of Software Design
Lecture 1 Course Overview Intro to Binary
and Boolean  Marti Hearst SIMS, University of
California at Berkeley
2
Course Objectives

• Learn key computer science concepts.
• Catch up on missing math background.
• Become able to work on larger programming
  projects.
• Prepare you for IS206 in Spring.

3
Course Structure

• Lectures
• Do readings in advance
• Discussion encouraged
• Labs
• Lead by the TAs
• Practice concepts from lecture
• Answer questions
• Homework
• Something due almost every week
• Often will be doing pair programming
• Grading
• Not assigning letter grade, but giving feedback
• To pass the class, you must attend all lectures
  and labs, and turn in all homeworks on time
• Exams
• I reserve the right to have exams if people dont
  work hard

4
Instructors

• Professor Marti Hearst
• TAs
• John Fritch
• Kaichi Sung
• Leah Zagreus
• Office hours TBA
• Lab
• Wed 1230-200

5
TextBooks
Computer Science An Overview, 7th EditionGlenn
Brookshear
REQUIRED
Data Structures Other Objects Using Javaby
Michael Main
REQUIRED
Programming for Corpus Linguistics--How to do
Text Analysis in Java By Oliver Mason
STRONGLY RECOMMENDED
6
Course Outline

1. How Computers Work
2. Object-Oriented Design
3. Analysis of Algorithms
4. Data Structures
5. Collections, Stacks and Queues
6. Trees and Graphs
7. Hash Tables
8. Disk-based data structures
9. Search Algorithms
10. Sorting Algorithms
11. Formal Languages
12. Computability

7
Useful Topics we are NOT covering

• (These should be covered in IS206)
• Distributed systems
• Threads
• Client-server architectures
• Networking
• Security
• Probability Theory
• Coding theory (Huffman codes, etc))
• Encryption
• Scripting

8
Lab Tomorrow

• Either take the placement exam in room 202
• Or build a home page in the lab in room 210

9
Upcoming Reading Assignments

• For hyperlinks, see course website
• For Today
• Brookshear, Ch. 1.1-1.6
• For Thursday
• Brookshear 2.4, Online demo of logic gates and
  circuits
• For Tuesday Sept 3
• Brookshear 2.1-2.5, Online demo of a CPU
• For Thursday Sept 5
• Brookshear 3.1-3.5, 8.1-8.2

10
How Do Computers Work?
11
What happens when

• Your program creates a variable?
• You program runs a loop?
• What really happens?

12
Binary Digits (Bits)

• Yes or No
• On or Off
• One or Zero
• 10010010

13
Bytes

• A sequence of bits
• 8 bits 1 byte
• 2 bytes 1 word (sometimes 4 or 8 bytes)
• How do binary numbers work?

14
Number Systems
For more info on number systems,
see http//courses.cs.vt.edu/csonline/NumberSyste
ms/Lessons/index.html
Images from http//courses.cs.vt.edu/csonline/Mac
hineArchitecture/Lessons/Circuits/index.html
15
Powers of Two
Decimal Binary Power of 2
1 1
2 10
4 100
8 1000
16 10000
32 100000
64 1000000
128 10000000
16
Famous Powers of Two
Images from http//courses.cs.vt.edu/csonline/Mac
hineArchitecture/Lessons/Circuits/index.html
17
Orders of Magnitude

• Each increase in the power of 10 is an increase
  in order of magnitude
• http//micro.magnet.fsu.edu/primer/java/scienceopt
  icsu/powersof10/index.html

18
Other Number Systems
Images from http//courses.cs.vt.edu/csonline/Mac
hineArchitecture/Lessons/Circuits/index.html
19
Binary Addition
Also 1 1 1 1 with a carry of 1
Images from http//courses.cs.vt.edu/csonline/Mac
hineArchitecture/Lessons/Circuits/index.html
20
Boolean Logic

• AND, OR, NOT, NOR, NAND, XOR
• Each operator has a set of rules for combining
  two binary inputs
• These rules are defined in a Truth Table
• (This term is from the field of Logic)
• Each implemented in an electronic device called a
  gate
• Gates operate on inputs of 0s and 1s
• These are more basic than operations like
  addition
• Gates are used to build up circuits that
• Compute addition, subtraction, etc
• Store values to be used later
• Translate values from one format to another

21
Truth Tables
Images from http//courses.cs.vt.edu/csonline/Mac
hineArchitecture/Lessons/Circuits/index.html
22
Interactive demo of Boolean logic

• http//courses.cs.vt.edu/csonline/MachineArchitec
  ture/Lessons/Gates/index.html
