Title: The Telephone


1

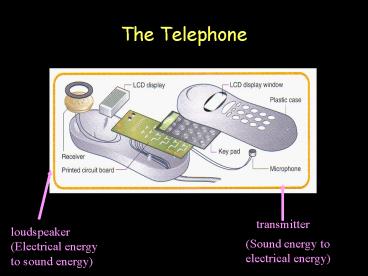

The Telephone
transmitter
loudspeaker
(Sound energy to electrical energy)
(Electrical energy to sound energy)
2
Printed circuit board of the telephone
3
An Older Telephone
4
Using an oscilloscope
1) Quiet sound, low frequency
2) Quiet sound, high frequency
3) Loud sound, low frequency
4) Loud sound, high frequency
5
Telecommunication Optical Fibres
  • The law of reflection.
  • When a ray of light bounces off a mirror , the
    angle going in equals the angle coming out.
  • The line at right angles to the mirror is called
    the normal.

6
Optical Fibres
  • When light is incident on a glass surface,
    refraction or bending of the light takes place.
  • The light comes out of the glass.
  • This however is dependent on the angle i.

7
Finding the Critical Angle
1) Ray gets refracted
2) Ray still gets refracted
4) Ray gets internally reflected
3) Ray still gets refracted (just!)
8
Optical Fibres
  • Optical fibres are made of thin flexible glass
    threads.
  • They are about the size of a human hair.
  • The fibres have a protective coating which keeps
    the light inside the fibre.

9
Satellites
  • Interactive summary.
  • Satellites which orbit the earth every 24____
    are called ________ satellites.
  • They are above the _____ point on the _____ .
  • Satellites use ______ dishes to _______ the
    microwave signals.
  • The microwave signals travel in _______ lines.

10
