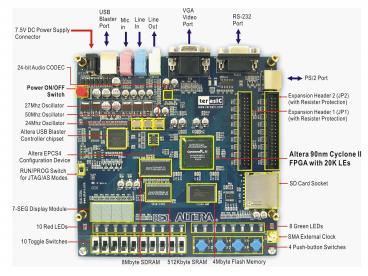

Altera Cyclone II (484 Pin BGA)
22 Pins
22 Pins
3
DE1 Pin Assignments
SW9L2
SW7M2
SW5U12
SW3V12
SW1L21
KEY3T21
KEY2T22
KEY1R21
KEY0R22
SW8M1
SW6U11
SW4W12
SW2M22
SW0L22
LEDR9R17
LEDR7U18
LEDR5V19
LEDR3Y19
LEDR1R19
LEDG7Y21
LEDG5W21
LEDG3V21
LEDG1U21
LEDR8R18
LEDR6Y18
LEDR4T18
LEDR2U19
LEDR0R20
LEDG6Y22
LEDG4W22
LEDG2V22
LEDG0U22
4
DE1 Pin Assignments
HEX3
HEX1
HEX2
HEX0
HEX00 PIN_J2 HEX01 PIN_J1 HEX02 PIN_H2 HEX0
3 PIN_H1 HEX04 PIN_F2 HEX05 PIN_F1 HEX06 PI
N_E2
HEX10 PIN_E1 HEX11 PIN_H6 HEX12 PIN_H5 HEX1
3 PIN_H4 HEX14 PIN_G3 HEX15 PIN_D2 HEX16 PI
N_D1
HEX20 PIN_G5 HEX21 PIN_G6 HEX22 PIN_C2 HEX2
3 PIN_C1 HEX24 PIN_E3 HEX25 PIN_E4 HEX26 PI
N_D3
HEX30 PIN_F4 HEX31 PIN_D5 HEX32 PIN_D6 HEX3
3 PIN_J4 HEX34 PIN_L8 HEX35 PIN_F3 HEX36 PI
N_D4
5
Steps in designing with Quartus II

• Select target device
• Design
• Use VHDL, Schematics, etc.
• Synthesize
• Build (compile chip)
• Simulate and verify
• Timing simulation
• Check input/output pin assignments
• Change any that need to be moved
• Program chip

6
Device Selection

• Assignments Device
• Cyclone II
• EP2C20F484C7

7
Designing/Compiling/Simulating

• Use any of the following methods to make your
  design
• Schematics (Block Diagram File .BDF)
• VHDL (.VHD)
• Verilog (.V)
• Leave the default settings for the compiler
  just press Play
• Use the Simulator to check your work
• See tutorials (Homework 3) for a guide

8
Pin Assignment

• Assign pins to input/output symbols
• For now inputs come from switches and buttons
• For now outputs go to LEDs
• Use the tables from the previous slides to figure
  out which pins are connected to the parts you
  need
• Select Assignments Pins
• Use the table at the bottom ignore the rest
• Enter the pin number for each I/O

9
Programming

• First, Re-Compile after selecting Pins

• Select Tools Programmer
• Power up the board (red button)
• Make sure RUN/PROG is in RUN mode
• Make sure USB-Blaster is specified if not use
  the Hardware setup
• Click Start
