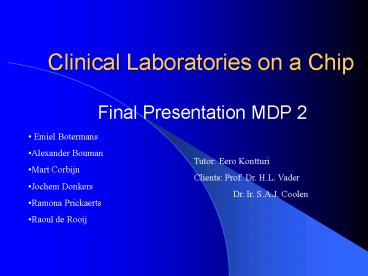

Clinical Laboratories on a Chip

1
Clinical Laboratories on a Chip

• Final Presentation MDP 2

• Emiel Botermans
• Alexander Bouman
• Mart Corbijn
• Jochem Donkers
• Ramona Prickaerts
• Raoul de Rooij

Tutor Eero Kontturi Clients Prof. Dr. H.L.
Vader Dr. Ir. S.A.J. Coolen
2
Outline Presentation

• Goal Project
• Introduction ?TAS
• Point of Care testing
• Single task applications
• DNA and proteins
• Glucose
• Other
• Conclusion
• Questions
• Finance

3
Goal project

• Feasibility study on how present available
  microchip technology can practically be applied
  for clinical purposes.

Approach

• Literature study
• Investigated a broad range of possible
  applications.
• Excursion Philips, Maxima Medical centre and
  MESA institute

4
Introduction to ?TAS
Definition

• ?TAS Micro Total Analysis System
• An integrated, miniaturized chemical analysis
  system
• Includes sample preparation, separation and
  detection system on a small, single chip.

5
Introduction to ?TAS
Example ?TAS

• MAFIAS (Micro Ammonia Flow Injection Analysis
  System)
• Micro pumps
• Micro flow sensors
• Micro mixers
• Filters
• Optical detectors

6
Introduction to ?TAS
?TAS types

• Microfluidic, fluids flow through a network of
  microchannels
• Micro arrays, fluids are flushed over a surface
  of micro arrays

7
Introduction to ?TAS
Microfluidic chip
Microarray
8
Introduction to ?TAS
Advantages

• Portability
• Automation
• Reduction of sample and reagent volume
• Costs
• Time
• New techniques can become available

9
Introduction to ?TAS
Disadvantages

• Blockades by particles and/or gas bubbles
• Contamination should be avoided
• Detection becomes difficult
• Mixing of fluids is limited (laminar flow)
• Difficulties in handling the devices

10
Point of Care testing
Advantages

• - Speed
• - Convenient for the physician
• - Convenient for the patient

11
Point of Care testing
Disadvantages

• Incorrect use or inaccurate calibration can lead
  to erroneous results
• Laboratory specialists can no longer comment on
  results
• Premature interpretation of a result can lead to
  an incorrect diagnosis

12
Single Task applications

• Separation techniques
• Capillary electrophoresis
• Capillary electrochromatography
• Liquid chromatography
• Detection techniques
• Fluorescence
• Colorimetry/Absorbance
• Mass spectrometry
• Microneedles

13
Single Task applications
Microneedles

• Blood sampling

14
DNA and Proteins

• Genes and their products (e.g. proteins) define
  the behaviour of a specific cell
• A lot of information can be obtained from the
  analysis of DNA and Proteins

15
DNA and proteins
Analysis

• Microfluidic
• Multichannel microfluidic devices provide high
  throughput separation possibilities for the
  purpose of sequencing
• Microarray
• Massive parallel experiments can be conducted to
  identify sequences and determine expression levels

16
DNA and proteins
Microfluidic

• Capillary Array Electrophoresis (CAE)
• 100 capillaries high throughputs
• However
• Introducing large numbers of samples and physical
  manipulation form problems
• e.g. automated sample loading takes care of
  these problems

17
DNA and proteins
Microfluidic

• Availability
• only some commercial applications available, but
  widely (successfully) adapted in leading genomic
  centres
• Performance
• 96 lanes, in each of which 500 separations
• Accuracy gt 99
• 543 bases called in 20 min. (16 channel exp.)

18
DNA and proteins
Microfluidic

• Clinical use
• Because of rapid analysis times and relatively
  simple operation applicable in a clinical lab
• Feasibility
• No pricings found microchip technology should
  make low cost production possible.

19
DNA and proteins
Microarray

• Rapid, cost effective methods for gene-expression
  and genotyping
• Detection of wide variety of genetic based
  diseases

20
DNA and proteins
Microarray

• Array constructed of oligonucleotide or cDNA
  probes onto solid substrate
• Samples applied to chip hybridisation occurs to
  complementary profiles on array
• Radioactive or fluorescence tagging makes
  automatic detection possible
• Genotyping or gene expression from output

21
DNA and proteins
Microarray

• Availability
• Off-the-shelf arrays widely commercially
  available.
• Custom chips array design and printing services
  available
• Equipment wide variety of hard and software
  available
• µTAS entire devices seem to be in the
  development stage

22
DNA and proteins
Microarray

• Clinical use
• Oncology
• Toxicogenomics
• Pharmacogenomics
• Cardiogenomics
• ELISA protein array
• Metabolites screening

23
DNA and proteins
Microarray

• Performance
• Densities up to 106/cm2 possible commercially
  20.000 to 45.000 probes on 1.28 cm2 chip
• Typical analysis times hard to find 30 minutes
• Feasibility
• Precise pricings hard to give, strongly depending
  on the density of the array ranging from 2 to
  200 per analyses

24
DNA and proteins
Prospects

• Genetic testing market grows rapidly (20 a year)
• More lower density, lower price arrays come
  available
• Regulatory requirements (FDA) become less of an
  obstacle.
• Important hurdle is reimbursement development of
  arrays costs a lot of money

25
Glucose
Introduction

• Glucose tests
• Clinical laboratories
• At home for diabetic patients
• Today finger pricks for blood
• Painful
• Inconvenient
• Daily analysis for diabetics

26
Glucose
Demands

• Research for
• Small
• Fast, for beter regulation of glucose level the
  test have to be fast.
• Painless, physical and psychological pain due to
  finger sticks with lancets for taking a blood
  sample.
• Convenient

27
Glucose
Applications

• Two types of applications in this report
• Applications in research phase
• Commercial applications
• Different types of sample
• Measurement from blood
• Measurement through skin

28
Glucose
Applications in research phase (example)

• Measurement from blood
• Intelligent mosquito
• Disposable micro analysis system
• Blood sample taken without physical pain (inner
  diameter needle of 50µm)
• More research needed (to solve problem with
  making samples through the small needle)

29
Glucose
Applications in research phase (example)

• Measurement through skin
• SpectRx, Inc.
• glucose measurement form interstitial fluid (ISF)
• No implanted components
• Tiny pores for ISF
• Disposable biosensor

30
Glucose
Commercial applications (example)

• Measurement from blood and measurement through
  skin.
• GlucoWatch
• Collects glucose from skin, no finger pricks
• Every 20 minutes a glucose reading

31
Biofluids components analysis
Applications in research phase (example)

• Opti Critical analyzer

• Determines electrolytes, hemoglobin, bloodgases,
  pH, pO2.
• Disposable multi-analyte cassette

32
Biofluids components analysis
Commercial applications (example)

• I-Stat
• Blood analysis (bloodgases, pH, pCO2, pO2, Na, K,
  Ca2, Cl-, glucose, hemoglobin, hematocrit, etc)
• Cartridges
• Electrochemical detection methods

33
Bodyfluids components analysis
Cells

• Microcytometry Flowcytometer

• Rapid analysis of multiple characteristics of
  single cells

34
Conclusion

• General conclusion
• Microchip technology holds great promise of
  cost-effective mass-production. Preserving
  quality and integrity.
• ? suitable for application in clinical analysis.

35
Conclusion

• Remarks
• The new microchip devices should
• Equal the specifications of currently used
  devices
• Be cheaper
• Be commercially interesting
• Also
• Some applications are not entirely developed yet
• FDA approval needed

36
Conclusion
Single task applications

• Single task applications
• Micro needles is a really promising application ?
  painless and convenient

37
Conclusion
DNA and proteins

• DNA and Protein analysis
• Very promising field of applications
• Widely implemented
• Microarrays for gene expression and genotyping
  commercially available
• Still very expensive and extensive

38
Conclusion
Glucose

• Glucose
• Numerous Point of care applications already
  available
• Microneedles make their advancement
• Measuring glucose from tissue is very promising

39
Conclusion
Other Biofluids components

• Biofluids and count cells
• Addition to current market
• Easy operation
• Precise analysis

40
Questions??
41
Finance
Budget (in euros) Realisation (in euros)
Virtual money
Working hours MDP members 129600 110700
Working hours MDP tutor 3750 2550
Secretarial work 7200 4920
Real money
Print/copying 50 163.99
Representation 65 51.84
External source of literature 25 0
Travel expenses 15 19
Production cost of report 45 52.60
