Title: Power and Refrigeration Cycles


1

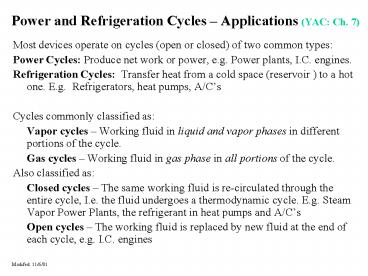

Power and Refrigeration Cycles Applications
(YAC Ch. 7)
  • Most devices operate on cycles (open or closed)
    of two common types
  • Power Cycles Produce net work or power, e.g.
    Power plants, I.C. engines.
  • Refrigeration Cycles Transfer heat from a cold
    space (reservoir ) to a hot one. E.g.
    Refrigerators, heat pumps, A/Cs
  • Cycles commonly classified as
  • Vapor cycles Working fluid in liquid and
    vapor phases in different portions of the cycle.
  • Gas cycles Working fluid in gas phase in all
    portions of the cycle.
  • Also classified as
  • Closed cycles The same working fluid is
    re-circulated through the entire cycle, I.e. the
    fluid undergoes a thermodynamic cycle. E.g. Steam
    Vapor Power Plants, the refrigerant in heat pumps
    and A/Cs
  • Open cycles The working fluid is replaced by
    new fluid at the end of each cycle, e.g. I.C.
    engines

Modifed 11/6/01
2
Power and Refrigeration Cycles Idealizations
  • Most real devices operate on cycles which are
    usually very complex.
  • We analyze such real devices by making
    simplifying assumptions, which lead to idealized
    cycles
  • Some common simplifying assumptions
  • All compression and expansion processes are
    reversible (quasi-equilibrium)
  • Friction is negligible, i.e. no pressure losses
    in pipes, heat exchangers, etc.
  • Perfect insulation, i.e. no heat losses in pipes
    or other components. (Note this does not mean
    that there is no heat transfer transfer between
    the working fluid and thermal reservoirs)
  • Changes in Kinetic energy and Potential energy
    usually neglected.
  • (Q Any exceptions ?)
  • What is the use of studying such idealized cycles
    ?
  • They allow us to study the influence of major
    parameters on the behavior of real cycles.
  • E.g. Increasing TH or decreasing TL will increase
    the efficiency of idealized and real cycles.

Modifed 11/6/01
3
Simple Steam Vapor Power Plant
Modifed 11/6/01
