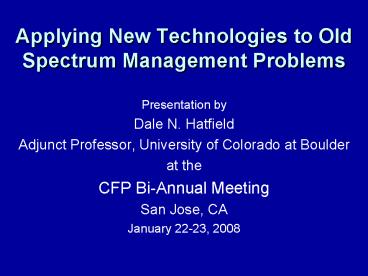

Applying New Technologies to Old Spectrum Management Problems

1
Applying New Technologies to Old Spectrum
Management Problems

• Presentation by
• Dale N. Hatfield
• Adjunct Professor, University of Colorado at
  Boulder
• at the
• CFP Bi-Annual Meeting
• San Jose, CA
• January 22-23, 2008

2
Introduction

• Purpose
• Outline
• Quick Review of Spectrum Management
  Terms/Processes
• Constraints and Criticisms of the Traditional
  Approach to Spectrum Management
• Proposals for Reforming the Traditional Approach
• Advances in Wireless Technology
• Tracing One Thread of a Reform Initiative
• Why So Little Market Progress on This
  Alternative?
• Concluding Thoughts

3
Quick Review

• Major Steps in Spectrum Management
• Allocation, Service Rules, Assignment and
  Enforcement Primary and Secondary Status
• Agencies Responsible for Spectrum Management
• Traditional Centralized Command and Control
  Approach to Management

4
Quick Review

• Pressures on the Resource
• More users, more uses, greater bandwidths
• Traditional solutions to spectrum congestion
• Reallocation
• Move higher in frequency
• Increased sharing
• Improved technology
• More spectrally efficient technologies
  (bits/second/Hertz)
• More frequency reuse
• Compression
• Focus Here on Increased Sharing (Types)

5
Constraints and Criticisms of the Traditional
Approach

• Criticisms of the Command And Control System of
  Spectrum Management
• Excessive rigidity
• Stifles technical and service innovation
• Lacks incentives for efficient use of the
  resource
• Creates barriers to sharing
• Erects barriers to other beneficial agreements
  and transactions
• Invites rent seeking behavior

6
Constraints and Criticisms of the Traditional
Approach

• Rigidities in the Allocation, Allotment, and
  Assignment of Spectrum
• Static spectrum management results in spectrum
  going unused in the frequency, time and/space
  dimensions administrative scarcity
• More dynamic/decentralized approaches to managing
  the resource were often hampered by equipment
  limitations
• Under-utilization due to administrative scarcity
  and equipment constraints has been verified by
  recent spectrum occupancy measurements

7
Constraints and Criticisms of the Traditional
Approach

• Rigidities in the Allocation, Allotment, and
  Assignment of Spectrum
• As stated by SPTF
• In many bands, spectrum access is a more
  significant problem than physical scarcity of
  spectrum, in large part due to legacy
  command-and-control regulation that limits the
  ability of potential users to obtain such
  access.
• Above suggests that substantial amounts of
  spectrum capacity could be freed up by more
  dynamic and opportunistic approaches to the
  management of the resource

8
Proposals for Reforming the Traditional Approach

• Challenges
• Reducing rigidities in current system
• Taking advantages of advanced technologies
• Vision of a more flexible future
• Competing Approaches/Models
• Property rights/market incentive model
• Commons or unlicensed access or license
  exempt model
• Command and control/engineering model

9
Advances in Wireless Technology

• Technological Advances for Reducing Past
  Constraints
• Software Defined Radios
• Cognitive Radios
• Policy Based Radios
• Intelligence at the Edge and Its Implications

10
Tracing One Thread of a Reform Initiative

• Two Inter-related Proposals Directed at Increased
  Sharing Thru Market Forces
• Modifying/adopting rules to allow market
  transactions a Secondary Market in spectrum
  especially lease transactions
• Modifying/adopting equipment authorization rules
  to facilitate the regulatory approval of
  SDRs/CRs/PBRs

11
Tracing One Thread of a Reform Initiative

• Allows Marketplace Forces to Reduce Scarcity Thru
  Increased Sharing
• Licensed holder (lessor) of unused/lightly-used
  spectrum has legal ability and financial
  incentive to lease under-utilized spectrum
• Entity seeking spectrum access (lessee) has
  ability to gain access to under-utilized spectrum
  by leasing needed spectrum
• Sophisticated equipment (SDR/CR) supports such
  voluntary, market-based transactions by
  reducing/minimizing possibility of interference
  between the lessees and lessors systems

12
Tracing One Thread of a Reform Initiative

• Notes on This Thread or Alternative
• Sharing is voluntary and potentially cooperative
  in response to marketplace forces
• Three aspects of the alternative
• Legal ability (e.g. through the secondary market)
  to gain more dynamic/opportunistic access to
  under-utilized spectrum
• Availability of approved equipment to gain more
  dynamic/opportunistic access to such spectrum
• Actual ability to gain access to under-utilized
  spectrum using such equipment without causing
  excessive interference to existing licensee(s)

13
Tracing One Thread of a Reform Initiative

• Status of the Initiative
• In a series of decisions the FCC has made the
  necessary changes to its rules to permit the
  creation of a secondary market
• It is now perfectly legal to lease under-utilized
  spectrum in many bands
• A limited market now exists (e.g., see
  http//www.cantor.com/brokerage_services/spectrum_
  and_tower/).
• Likewise, the FCC has modified its rules and
  processes to allow the approval of equipment that
  has the characteristics of Software Defined
  Radios/Cognitive Radios/Policy Based Radios

14
Tracing One Thread of a Reform Initiative

• Status on the Initiative (Contd)
• Understandably, there have been some challenging
  issues associated with involuntary or
  non-cooperative sharing (e.g., TV White Space)
  but those are largely different issues
• For voluntary/cooperative sharing there are no
  longer regulatory barriers to such transactions
  but few secondary market lease transactions have
  actually occurred Why is that the case?

15
Why So Little Progress?

• Possible Explanations
• Remaining Transaction Costs
• Convergence Fear of Creating New Competitor
  (Versus Traditional Silos)
• Insufficient Number of Sellers/Lessors
• Exacerbated by incentives for hoarding and the
  elimination of the spectrum cap
• Exclusion of Government Spectrum
• Fear of Permanent Reallocation
• Economies of Scale/Scope and First Mover
  Advantages Make It Difficult for Any New Entrant
• Immature Technology

16
Final Thoughts

• Software Defined Radios/Cognitive Radios/Policy
  Based Radios have tremendous potential to solve
  the problems associated with the traditional
  command and control, centralized approach to
  spectrum management
• Despite the lack of legal/regulatory barriers to
  the creation of a vibrant secondary market in
  spectrum to facilitate the introduction of
  SDR/CR/PBR technology and reduce the amount of
  under-utilized spectrum, the current wireless
  industry structure does not appear to create
  strong enough economic incentives for the
  voluntary introduction of such advanced systems
• Given this lack of economic incentives,
  policy-makers may want to consider a no harm, no
  foul rule or perhaps a compulsory license
  policy to allow new entry in situations where the
  incumbents have failed to use their assigned
  spectrum efficiently
