Title: Asahi/America New Technology


1

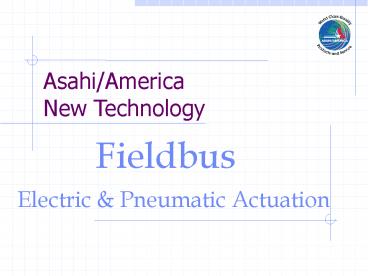

Asahi/AmericaNew Technology
Fieldbus
Electric Pneumatic Actuation
2
Fieldbus Foundation Members
3
Fieldbus Foundation Members
  • ABB Industrial Systems Inc.
  • Accutech
  • Advanced Distillatiom Technology
  • Applied Information Scienncr
  • Asahi/America
  • Automation Research Institute of Ministry
  • of Metallurgical Industry
  • Automax/Accord Controls
  • Bailey Japan Co., Ltd.
  • Baker Hughes INTEQ
  • Bentley Nevada Corporation
  • Boing
  • BB Oil-Alliance Refinery
  • Bray International, Inc.
  • Chevron Research Technology
  • Chinese Fieldbus Professional Commission
  • Chiyoda Corporation
  • Chubu Electric Power Company
  • City of Columbus Wastewater Treatment
  • Control System Integrators Association
  • Crouse hindes/CEAG-digi table
  • Delta t
  • DKK Corporation
  • Dresser Industries

4
Fieldbus Foundation Members
  • Duke/Fluor Daniel
  • du Pont Engineering Co.
  • EL-O-MATIC BV
  • Elsag Baily Process Automation
  • Endress Hauser GmbH Co.
  • Exxon Research Engineering
  • Co.
  • Fieldbus Inc.
  • FINT
  • Fisher Controls International,
  • Inc.
  • Fisher-Rosemount Systems Inc.
  • Fraunhofer Institute
  • Fuji Electric Co., Ltd.
  • GAXT Terminals Corp.
  • Groupe Schneider
  • Hartmann Braun AG
  • Hitachi, Ltd.
  • Honeywell Inc.
  • HuaKong Technology Co., Ltd.
  • ICT, Inc.
  • ifak
  • Instrument Control Service, Inc.
  • IPCEA
  • Intellution, Inc
  • InterlinkBT
  • Jet Propulsion Laboratory
  • JGC Corp.
  • K-Patents Oy

5
Fieldbus Foundation Members
  • Keneka Engineering Corp.
  • Kinetics Technology
  • International
  • Knick Elektronische
  • Meßgeräte GmbH Co.
  • Konsberg Simrad AS
  • Koso Service Co., Ltd.
  • KROHNE Messtechnik GmbH
  • Co.
  • Kurihara Kogyo Co., Ltd
  • Magnetrol International
  • Measurement Technology Ltd.
  • Micro Motion, Inc.
  • Mitsubishi Electric
  • Corporation
  • Mobile Technology C
  • Monsanto Company
  • Moore Products Co.
  • National Instruments Corp.
  • NEC Corporation
  • Neles-Jamesbury Oy
  • NEMA
  • Niigata Masoneilan Co., Ltd.
  • Nippon Gear Co., Ltd.
  • Norsk Hydro a.s.
  • Ohkura Electric Co., Inc.
  • Omni Flow Computers
  • Oval Engineering Co., Ltd.

6
Fieldbus Foundation Members
  • Rockwell Automation
  • Rosemount Analytical, Inc.
  • Rosemount Inc.
  • Saudi Arabian Oil Company
  • Shanoc, Inc.
  • Shenyang Institue of Automation
  • Shell Oil Company
  • Shimadzu Corporation
  • SHIP STAR Associates Inc.
  • Siemens Energy automation, Inc.
  • Sira Test Certification, Ltd.
  • SMAR
  • Smar Research
  • PCE
  • PDVSA-Servicois Automatizagion
  • PepperlFuchs
  • PMV,Palmstiernas Instruments
  • POHTO
  • Praxair, Inc.
  • Presys Instrumentos e Sistemas Ltda.
  • R. Stahl Schaltgeräte GmbH
  • Relcom Inc.
  • Research Reacto Institute of Kioto University
  • Richard Hirschmann Of America, Inc.

7
Fieldbus Foundation Members
  • Wonderware Corporation
  • WorldFIP Europe
  • Yamaha Corporation
  • Yamatake-Honeywell Co., Ltd.
  • Yokogawa Electric Corporation
  • Yokogawa Electronics Co., Ltd
  • Softing GmbH
  • SRC NIITEPLOPRIBOR
  • SRI International
  • Stone Webster Engineering Corp.
  • StoneL Corporation
  • The Foxboro
  • Tokyo Keiso Co., Ltd.
  • Toshiba Corporation
  • VALTEK International
  • VEGA Grieshaber KG
  • Walsh Automation Inc.
  • Westinghouse Electric
  • Westlock Controls

8
Intellis

Network Monitors
9
Typical Hardwired System
IO/Cabinet
PLC
Tank
Automated Valves
Level Sensors
10
INTELLIS Network System
PLC
Tank
Level Sensors
Automated Valves
11
INTELLIS Network System
12
  • Intellis System

PLC
Network Monitor
Field Network
Field Network
13
Network Communications
14
The Economic Advantages of Field
Networks
Labor Costs The utilization of a serial
communications field network will greatly
contribute to the overall reduction of labor
costs as compared to the conventional hardwired
scheme where individual wires must be pulled
through a protected conduit that is hundreds of
feet long. Hardwired 180 valve system
223,905 Networked 180 valve system 102,129
15
Material Costs The amount of conduit, fittings,
wire, and junction housings is greatly
reduced. When compared with conventional systems,
field networks eliminate a substantial amount of
field wiring and the labor necessary to install
it. Hardwired 180 valve system
228,404 Networked 180 valve system 182,355
16
Maintenance Costs Field networks create the
foundation for a plant wide valve management
system that takes full responsibility for
monitoring and diagnosing valve performance
from installation to predictive/ preventive
maintenance scheduling.
17
The Network Monitor
18
INTRODUCING THE ICoT PROXIMITY POSITIONER
19
ICoT
  • The ICoT positioner has been designed with
    ease of maintenance as a primary consideration.
  • There are only two main components Sealed
    Electronic Canister and
  • IP Transducer.
  • Minimum spare parts required and ease of future
    upgrades.

20
ICoT The First Proximity Positioner
  • The Advantages Offered By Proximity Sensors
    Switches Can Now Be Introduced To The Smart
    Positioner With The Hall Effect Sensor Offering
    Non-Contact Feedback Data.

21
NON-CONTACT FEEDBACK ROTARY
  • No Linkage To Wear, Damage Or Miss-Align, So
    Increasing Accuracy And Reliability Of Feedback

22
NON-CONTACT FEEDBACK LINEAR
  • Availability Of Various Length Triggers Systems
    0.300 to 48.0 inch Strokes.
  • No Troublesome Rotary / Linear Conversion Linkage
    Kits.

23
REMOTE MOUNTING OF ICOT POSITIONER
  • With Feedback Signals Now Being Electrical Rather
    Than Mechanical, The Positioner Is No Longer
    Required To Be Mounted On The Valve.
  • Advantageous For Extreme Vibration and
    Temperature

24
ICoT JR. Integrated Position Transmitter
  • The ICoT 4100 is standardly equipped with an
    integrated 4 to 20mA position feedback
    transmitter.

25
ICoTStandard Features
  • 4 to 20mA Position Transmitter
  • Same unit for linear or rotary applications.
  • 20 micron inlet filter
  • Three pressure gauges
  • Single acting, double acting or air assisting
    actuation.
  • Optional Integrated Components
  • Position Sensors
  • Emissions Monitor
  • Solenoid Valve

26
ICoTA Full Range of Proximity Positioners
  • Current Available Ranges
  • ICoT 4100 Series Electro-Pneumatic Positioner
  • ICoT 4200 Series Intelligent Positioner w/
    Keypad
  • ICoT 4300 Series Intelligent Positioner w/ HART
  • Future Available Ranges
  • ICoT 4400 Series Intelligent Positioner w/
    Fieldbus
  • ICoT 4500 Series Intelligent Positioner w/
    Profibus

27
ICoTPROCESS BENEFITS
  • Increase In Accuracy and Sensitivity (Minimal
    Hysteresis)
  • Speed Of Response, Speed Control.
  • Tighter Control Of Process Loop.
  • Quality Of Process Output Increased.
  • More Aggressive Control Maybe Employed.
  • Reliability Increase.
  • Lower Down Time For Maintenance Re-Calibration.

28
HANDHELD CALIBRATION
  • Connection For 275 Handheld
  • Full Calibration Of Positioner From Any Point On
    The Loop, At The Instrument Or I/O Card.

29
CONNECTION TO HART SOFTWARE
30
In SummaryICoT Benefits
  • Non-Contact Positioning.
  • Remote Mounting Ability.
  • Valve Optimization Through PID Control.
  • Accuracy Improvement Due To Integrator.
  • Electronic Speed Control.
  • Push Button Calibration For Speed Accuracy.
  • Linear Rotary Applications From One Positioner
    Package.
