Open Channel Flow

1

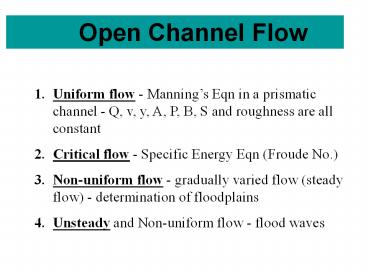

Open Channel Flow

1. Uniform flow - Mannings Eqn in a prismatic
   channel - Q, v, y, A, P, B, S and roughness are
   all constant
2. Critical flow - Specific Energy Eqn (Froude No.)
3. Non-uniform flow - gradually varied flow (steady
   flow) - determination of floodplains
4. Unsteady and Non-uniform flow - flood waves

2
Uniform Open Channel Flow
Mannings Eqn for velocity or flow
where n Mannings roughness coefficient R
hydraulic radius A/P S channel slope
Q flow rate (cfs) v A
3
Uniform Open Channel Flow Brays B.
Brays Bayou
Concrete Channel
4
Normal depth is function of flow rate, and
geometry and slope. One usually solves for
normal depth or width given flow rate and slope
information
B
b
5
Normal depth implies that flow rate, velocity,
depth, bottom slope, area, top width, and
roughness remain constant within a prismatic
channel as shown below
UNIFORM FLOW
Q C V C y C S0 C A C B C n
C
6
1
a
z
Common Geometric Properties
Cot a z/1
7
Optimal Channels - Max R and Min P
8
H z y ?v2/2g Total Energy E y ?v2/2g
Specific Energy ? often near 1.0 for most
channels
Energy Coeff.
a S vi2 Qi V2 QT
H
Uniform Flow Energy slope Bed slope or dH/dx
dz/dx Water surface slope Bed slope
dy/dz dz/dx Velocity and depth remain
constant with x
9
My son Eric
Critical Depth and Flow
10
Critical depth is used to characterize channel
flows -- based on addressing specific energy E
y v2/2g E y Q2/2gA2 where Q/A q/y
and q Q/b Take dE/dy (1 q2/gy3) and
set 0. q const E y q2/2gy2
y
Min E Condition, q C
E
11

• Solving dE/dy (1 q2/gy3) and set 0.
• For a rectangular channel bottom width b,
• 1. Emin 3/2Yc for critical depth y yc
• yc/2 Vc2/2g
• yc (Q2/gb2)1/3
• Froude No. v/(gy)1/2
• We use the Froude No. to characterize critical
  flows

12
Y vs E
E y q2/2gy2 q const
13
(No Transcript)
14
In general for any channel shape, B top
width (Q2/g) (A3/B) at y yc Finally Fr
v/(gy)1/2 Froude No. Fr 1 for critical
flow Fr lt 1 for subcritical flow Fr gt 1 for
supercritical flow
Critical Flow in Open Channels
15
(No Transcript)
16
Non-Uniform Open Channel Flow
With natural or man-made channels, the shape,
size, and slope may vary along the stream length,
x. In addition, velocity and flow rate may also
vary with x. Non-uniform flow can be best
approximated using a numerical method called the
Standard Step Method.
17
Non-Uniform Computations

• Typically start at downstream end with known
  water level - yo.
• Proceed upstream with calculations using new
  water levels as they
• are computed.
• The limits of calculation range between normal
  and critical depths.
• In the case of mild slopes, calculations start
  downstream.
• In the case of steep slopes, calculations start
  upstream.

Calc.
Q
Mild Slope
18
Non-Uniform Open Channel Flow
Lets evaluate H, total energy, as a function of
x.
Take derivative,
Where H total energy head z elevation
head, ?v2/2g velocity head
19
Replace terms for various values of S and So. Let
v q/y flow/unit width - solve for dy/dx, the
slope of the water surface
20
Given the Froude number, we can simplify and
solve for dy/dx as a fcn of measurable parameters
Note that the eqn blows up when Fr 1 and goes
to    zero if So S, the case of uniform OCF.
where S total energy slope So bed slope,
dy/dx water surface slope
21
(No Transcript)
22
Yn gt Yc
Uniform Depth
Mild Slopes where - Yn gt Yc
23
Now apply Energy Eqn. for a reach of length L
This Eqn is the basis for the Standard Step
Method Solve for L Dx to compute water surface
profiles as function of y1 and y2, v1 and v2, and
S and S0
24
Backwater Profiles - Mild Slope Cases
?x
25
Backwater Profiles - Compute Numerically
Compute y3 y2 y1
26
Routine Backwater Calculations

1. Select Y1 (starting depth)
2. Calculate A1 (cross sectional area)
3. Calculate P1 (wetted perimeter)
4. Calculate R1 A1/P1
5. Calculate V1 Q1/A1
6. Select Y2 (ending depth)
7. Calculate A2
8. Calculate P2
9. Calculate R2 A2/P2
10. Calculate V2 Q2/A2

27
Backwater Calculations (contd)

1. Prepare a table of values
2. Calculate Vm (V1 V2) / 2
3. Calculate Rm (R1 R2) / 2
4. Calculate Mannings
5. Calculate L ?X from first equation
6. X ??Xi for each stream reach (SEE
   SPREADSHEETS)

Energy Slope Approx.
28
100 Year Floodplain
Bridge
D
QD
Tributary
Floodplain
C
QC
Main Stream
Bridge Section
B
QB
A
QA
Cross Sections
Cross Sections
29
The Floodplain
Top Width
30
Floodplain Determination
31
The Woodlands

• The Woodlands planners wanted to design the
  community to withstand a 100-year storm.
• In doing this, they would attempt to minimize any
  changes to the existing, undeveloped floodplain
  as development proceeded through time.

32
HEC RAS (River Analysis System, 1995)
HEC RAS or (HEC-2)is a computer model designed
for natural cross sections in natural rivers. It
solves the governing equations for the standard
step method, generally in a downstream to
upstream direction. It can Also handle the
presence of bridges, culverts, and variable
roughness, flow rate, depth, and velocity.
33
HEC - 2
Orientation - looking downstream
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
River
Multiple Cross Sections
39
HEC RAS (River Analysis System, 1995)
40
HEC RAS Bridge CS
41
HEC RAS Input Window
42
HEC RAS Profile Plots
43
3-D Floodplain
44
HEC RAS Cross Section Output Table
45
Brays Bayou-Typical Urban System

• Bridges cause unique problems in hydraulics
• Piers, low chords, and top of road is
  considered
• Expansion/contraction can cause hydraulic
  losses
• Several cross sections are needed for a bridge
• 288 Bridge causes a 2 ft
• Backup at TMC and is being replaced by TXDOT

288 Crossing
