Title: Mixed SpaceWire - SpaceFibre Networks

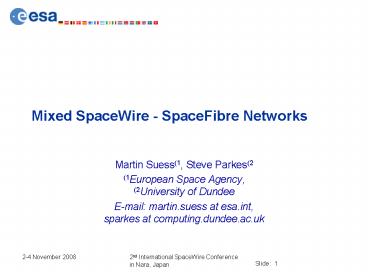

1
Mixed SpaceWire - SpaceFibre Networks
  • Martin Suess(1, Steve Parkes(2
  • (1European Space Agency, (2University of Dundee
  • E-mail martin.suess at esa.int, sparkes at
    computing.dundee.ac.uk

2
Overview
  • Introduction
  • SpaceWire SpaceFibre comparison
  • SpaceFibre Virtual Channels
  • Priorities and Group Adaptive Routing
  • Mixed Network Examples
  • SpaceFibre Outlook
  • Conclusion

3
Introduction
  • SpaceWire supports bi-directional traffic of up
    to 200Mbit/sec over a distance up to 10m.
  • SpaceFibre shall be capable to improve to both
    figures by at least a factor of 10
  • Data rates 2.5Gbit/sec
  • Distance 100m
  • Provide additional features like galvanic
    isolation
  • This requires a number of modifications at
    different levels of the protocol stack.
  • The aim is to maintain compatibility between
    SpaceWire and SpaceFibre on Packet and Network
    level.
  • In the following the solutions implemented in the
    SpaceFibre breadboard are presented

4
Physical Signal Level - Optical
  • SpaceWire uses cables with 4 twisted pairs with
    nine-pin micro miniature D-type connectors.
  • SpaceFibre uses two optical fibres as medium
  • The Draka MaxCap 300 radhard graded-index
    multimode fibre has been selected after testing
  • A cable protecting the fibre was designed based
    on expanded polytetrafluoethylene
  • Diamond AVIM connectors where already qualified
    for space
  • Electro optical transceivers produce 850-nm laser
    light with a power of 3dBm peak

5
  • Diamond AVIM connectors and electro optical
    transceiver breadboard

6
Physical Signal Level - Electrical
  • In addition an electrical version for short
    distances forseen.
  • Prototype used 4 coaxial cables with SMA
    connectors.
  • The electrical interface of the transceivers use
    Current Mode Logic (CML).
  • CML is directly used as signal level in the
    electrical version.
  • Tolerance to common mode voltage differences can
    be improved by blocking capacitors.
  • More investigations are needed before physical
    signal level definition of electrical SpaceFibre.

AC coupling of a CML transmitter and receiver
7
Character Level - 8B10B Encoding
  • SpaceWire defines data and 4 control characters
  • FCT, EOP, EEP, ESC
  • The combination of ESC with FCT and Data
    Characters defines the Null control code and the
    Time-Codes
  • SpaceFibre characters are based on 8B10B encoding
  • DC balanced data signal plus 12 special
    characters for control functions
  • Three of these special characters are comma
    characters
  • Comma characters contain a unique sequence of
    ones and zeroes that are used for character
    alignment

8
Character Level - Ordered Sets
  • Ordered Sets are a sequence of 4 characters
    starting with a comma character (K28.5)
  • The second character defines the type of ordered
    set
  • The last two characters can carry additional
    information
  • Ordered Sets greatly extend the possibility to
    embed control information in the data steam
  • Several types of ordered sets are defined for
    SpaceFibre
  • Link-level, power management, reset, flow
    control, faming and user ordered sets
  • User ordered sets are used to propagate time
    codes and interrupts though the network

9
Exchange Level - Flow Control Framing
  • SpaceWire uses flow control to prevent receive
    buffer over flow.
  • Each FCT indicates 8 Bytes of free buffer space.
  • SpaceFibre maintains the concept of flow control.
  • Granularity of flow control is increased due to
    higher bandwidth.
  • Each FCT ordered set controls the flow of one
    frame of maximum 255 data words.
  • A frame starts with a Start of Frame ordered set
    and ends with an End of Frame ordered set.
  • The End of Frame ordered set contains the 16 bit
    CRC of the frame for error detection.
  • SpaceWire packets are segmented into frames and
    reassembled at link level.

10
Virtual Channels in SpaceFibre
  • Flow control and start of frame ordered sets
    contain the virtual channel number.
  • With separate frame buffers the virtual channel
    data flow is logically separated while using the
    same medium.
  • Congestion in one virtual channel does not
    influence the traffic in the other virtual
    channels.
  • A SpaceWire packet in one virtual channel can
    pass a packet in another virtual channel.
  • Priorities can be used to control the access of a
    virtual channel to the physical medium so that
    the higher priority channel has always direct
    access.

11
Virtual Channels in SpaceFibre
12
Number of Virtual Channels in a SpaceFibre Link
  • Maximum number of virtual channels is 256.
  • In practice less will be used to limit the number
    of buffers needed.
  • The individual virtual channels must be
    accessible without blockage or bottle neck.
  • In a SpaceWire router the total number of ports
    for path addressing is limited to 31.
  • The SpaceWire standard allows to use two
    consecutive address bytes for path addressing in
    large routers.
  • The first path address byte indicates the
    SpaceFibre link.
  • The second path address byte indicates the
    virtual channel number.
  • Beyond this some of the virtual channels could be
    accessed by logical addressing only.

13
SpaceWire - SpaceFibre Router
  • Router example with
  • 3 SpaceFibre links with 6 virtual channels each
  • 7 SpaceWire links
  • 2 External ports
  • Non blocking crossbar switch provides direct
    access to every virtual channel

14
Virtual Channel Priorities Group Adaptive
Routing
  • Each virtual channel can provide the full
    bandwidth of the SpaceFibre link.
  • If two or more virtual channels request a
    bandwidth higher than the full bandwidth of the
    link some arbitration is required.
  • Priorities can be assigned to virtual channels
  • The virtual channel with higher priority is
    allowed to send the next frame.
  • Round robin arbitration is performed between
    virtual channels of the same priority.
  • User ordered sets for time-code and interrupt
    distribution have priority and are sent in the
    middle of the frame currently transmitted.
  • SpaceWire-RT protocol should be used to provide
    Quality of Service beyond priorities.

15
Group Adaptive Routing
  • If packets are routed through the same virtual
    channel the access is arbitrated by the router.
  • Routers can provide group adaptive routing among
    virtual channels with the same priority
  • Two packets to the same logical address can use
    parallel virtual channels.
  • The receiving side can then decide which should
    be processed first.
  • Available overall bandwidth is not increased.
  • Routers can provide group adaptive routing among
    several SpaceFibre links.
  • This can be used to increase the available
    bandwidth.

16
Network Example Single SpaceFibre Link
17
SpaceFibre as Backbone
18
Mixed Networks
19
SpaceFibre Breadboarding
20
SpaceFibre Breadboarding
21
SpaceFibre Outlook
  • A first SpaceFibre prototype covering all levels
    has been implemented and tested.
  • A first outline specification has been published
    and discussed in the frame of the SpaceFibre
    working group.
  • The experience gained will be consolidated and
    used for the development of a SpaceFibre
    demonstrator.
  • The SpaceFibre Demonstrator activity will target
  • Development of a SpaceFibre IP core,
  • Test and validation of IP core using existing
    prototype,
  • SpaceFibre Demonstrator implementation based on
    Actel FPGA and Wizard Link SerDes,
  • Preparation of a SpaceFibre specification as
    input for the standardisation process.

22
Conclusion
  • The different levels of SpaceFibre have been
    compared with SpaceWire.
  • SpaceWire and SpaceFibre is intended to be fully
    compatible on Packet and Network level.
  • This allows the easy implementation of mixed
    SpaceWire SpaceFibre networks.
  • Some examples of those networks have been
    presented.
  • This compatibility is seen as essential feature
    of SpaceFibre.
  • Experience has been gained with a prototype
    implementation.
  • As next step a demonstrator will be developed
    based on space qualified components.
  • Standardisation in ECSS is envisioned in
    corporation with the other space agencies.
