Metro Transit Hiawatha LRT

1

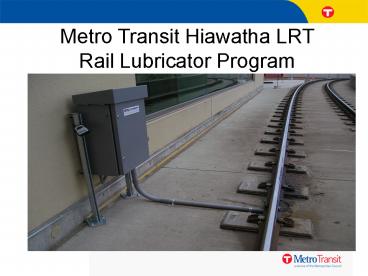

Metro Transit Hiawatha LRT Rail Lubricator
Program
2
Demonstration of Rail Lubricator Noise Reduction
3
Picture of curve worn T-Rail

Worn rail contact surface in a curve where the
wear takes place.
4
Wheel tracking in a right handed curve FRICTION
RAIL WHEEL WEAR
5

• Benefit of Rail Lubrication
•
• LRV wheel resistance around curves is reduced by
  lubrication.
• 48 less energy is required by the traction power
  motors.
• Lubricant film between the rail and wheel
  increase useable rail and wheel life.

6
Operational Advantages

• Reductions in noise ranging from 6.3 to 22.8 dB,
• with an average reduction of 12 dB

• Smoother, quieter ride for our passengers

• Greatly reduces the possibility of the wheel
  flange
• climbing the gauge face of the rail (derailment)

• Reduces ground-borne vibration

7
Installation status

• Six Track Lubricators installed to date in tight
  radius curves along the LRT alignment.
• Twelve remaining to be installed to eliminate
  remaining high rail wear areas.

8
100 Radius Curve MOA
9
Metro Transit Rail Lubricator Controller MOA
10
Metro Transit Rail Lubricator MOA
11
GOALS

• Install remaining (12) lubricators

• Improve ride quality

• Improve system reliability

• Increase infrastructure service life

• Improve system safety

• Maintain rail lubrication standards
• for future expansion
