MIMOSA and Open Maintenance Systems Integration in the Military

1

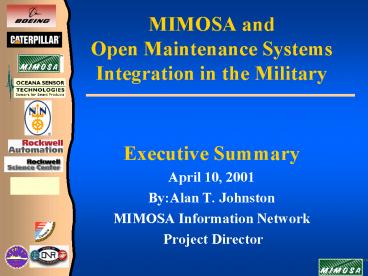

MIMOSA andOpen Maintenance Systems Integration
in the Military

• Executive Summary
• April 10, 2001
• ByAlan T. Johnston
• MIMOSA Information Network
• Project Director

2
MIMOSA Maintenance Systems IntegrationPresentat
ion Contents

• Introduction
• What is the Machinery Information Management Open
  Systems Alliance?
• Current Government Related MIMOSA Activities
• The Problem The Complexity of MRO Integration
• The MIMOSA Solutions
• MIMOSA Methods Tools
• MIMOSA Formal Standards
• The Applicability of MIMOSA to the MILITARY
• A Summary MIMOSA Military Application Schema
• A Demonstration of the power of the MIMOSA
  Specifications

This presentation assumes the viewer already
understands the need for MRO information
integration. Also see the white paper entitled
MIMOSA in the Military at the mimosa.org web
site.
3
What Is The Machinery Information ManagementOpen
Systems Alliance (MIMOSA)?

• A Maintain, Repair, Operate (MRO) Industry Trade
  Association that is organized as a non-profit
  corporation
• 50 Sponsors Members (9 Countries)
• MRO Solution Technology Vendors
• Condition Based Maintenance (CBM) Solution
  Vendors
• Computerized Maintenance Management System
  (CMMS)/Enterprise Asset Management (EAM) Vendors
  - (Maintenance Logistics System Vendors)
• Capital Equipment OEMs
• Systems Integrators
• Equipment Operators Maintainers
• MRO Solutions Consultants

4
Current MIMOSA Government RelatedMRO Initiatives

• Partnership with the OSA-CBM Program
• Relationship with Army PM-TMDE
• NAVSEA-TOSA Program-2001 MIMOSA Member
• Dialog with Army Digital Aviation Logistics
  Prototype Program (DAL-P)
• DAL-P proposed MIMOSA as key enabling technology
• Dialog with GCSS-A
• Dialog with Army CECOM
• Telemaintenance Architecture
• Concept Prototype
• Demonstration Project Proposal
• Dialog with National Institute of Building
  Sciences

5
The ProblemThe Complexity of MRO Integration
If you accept the need to integrate MRO related
technologies in order to properly manage your
complex assets, the immediate problem is the
complexity and expense associated with doing it
in a useful and comprehensive way.

• The range of MRO related technologies to be
  integrated
• What are the basic MRO integration options?

6
MRO Technology Integration Summary
Availability to Promise Order Guarantees
Optimise Supply Chain Optimise TCO/ROA
Decisions
Process Control Process Mgmt
Maint. Work Parts Mgmt
Asset Advisory Management
Control System
CMMS System
CBM System
PLANT MEASUREMENTS / INSPECTIONS
7
What Options Do Organizations Have When
Integrating Their MRO Asset Data?

• Custom Point-To-Point Integration
• Cost Complexity Often Prohibitive
• One-off Integration
• Constant Maintenance Required (est. 30 annual)
• Wait for somebody else to figure it all out
• Work with MIMOSA Use Industry-Driven, Open
  Systems Approach for Integration Specifications
• Use existing MIMOSA specifications for current
  work
• Help develop MIMOSA specifications for future
  requirements
• Work with us as a path toward open, consensus
  based standards

8
The MIMOSA Solutions

• MIMOSA Methods Tools
• MIMOSA Formal Standards

9
End-To-End MIMOSA EnabledMRO Systems Schema
INFORMATION SYSTEMS
EMBEDDED SYSTEMS
At Platform Diagnostics Portable Diagnostic Tools
CBM Systems
Maintenance Logistics EAM, CMMS
Tightly Coupled Systems
Loosely Coupled Systems
10
Open Systems Architecture forCondition-Based
Maintenance
Development Laboratory Demonstration of OSA/CBM
11
A Simplified Mimosa Process Timeline
OSA-CBM / MIMOSA "Leapfrog" Team
6 Years
CORBA COM XML Transactions SQL
Transactions File Transfers
XML Transactions SQL Transactions File Transfers
SQL Transactions File Transfers
April 2001
Oct 2001
12
MIMOSA XML Based Application Program Interface
(API) Conventions
MIMOSA 2.1 XML Server Specifications
MIMOSA 2.1 XML Client Specifications
Information Integration APIs
Supported Technologies REG (Asset Register
Management) TREND (Static Trends/Alarms) DYN
(Dynamic Vibration/Sound) BLOB/THERM
(Thermography) SAMPLE (Oil/Fluid/Gas/Solid
Tests) REL (Reliability / Data) DIAG (Diagnostics
/ Recommend) WORK (Request For Work)
Any MIMOSA 2.1 XML Server can support a
functional dialog with any MIMOSA 2.1 XML Client
if they support the same technologies (See
Descriptions at right).
13
Open Industrial Standards in Asset Management
MRO Information Systems
Enterprise Resource Planning (ERP) Systems
Control Systems Control Data Historians
Engineering Data Systems
OAG
OPC
STEP
Equipment Asset Information Bus
MIMOSA
MIMOSA
MIMOSA
OSA / CBM
Condition Monitoring System (CBM/PdM)
Maintenance Management Systems (MMS)
Plant Asset Management (PAM) Systems
ISO Technical Committee 108 / Subcommittee 5
14
MIMOSA As A Standards Safe Harbor

• MIMOSA Technical Director (Ken Bever) Is The
  Convener of ISO TC018/SC5/WG6
• TC108--Shock Vibration)
• Subcommittee 5 (SC5--Machinery Condition
  Monitoring Analysis)
• Working Group 6 (Data Processing Requirements,
  Communication Format Requirements, and
  Presentation Requirements of Machinery Condition
  Monitoring Analysis Data).
• ANSI S2.10 will write the draft for ISO.
• ANSI S2.10 meetings will usually be held in
  conjunction with MIMOSA developers meetings.
• MIMOSA Specifications will be a normative
  reference.

15
The Applicability of MIMOSA to the Military
MIMOSAs MRO Information Integration
Specifications are enablers for open,
multi-platform, multi-vendor maintenance oriented
application integration. They facilitate the
military use of Commercial Off The Shelf (COTS)
maintenance application solutions enable
horizontal vertical information integration.

• A summary MIMOSA Military Application Schema
• The MIMOSA Information Network (MIN) technology
  demonstration platform in a military context
  (demo in conjunction with OSA-CBM)
• This demonstration was done with multiple vendors
  integrating MRO information on servers in 4
  cities.
• The entire demonstration was conceptualized,
  organized and developed in less than 4 months
  with a mostly volunteer, staff showing the power
  of the MIMOSA open specifications

16
Military Industrial Supply ChainMRO Extranet
Macro Schema-Draft
MIMOSA Compliant XML Interfaces provide a basis
for Open MRO Collaboration
MFG Supply Chain
XML Platform Interface
STD MRO Information Flows
17
MIMOSA Information Network (MIN)
Java 2 Client
Other Client Technologies
MIN-Client XML API
MIN-Client XML API
MIN Participant Value Added Applications
18
The OSA-CBM MINDemonstration Concept
19
MIN-Viewer Initiation
20
MIN-Viewer Demo Database Selection
21
MIN-Viewer Segment Navigation 1
User Interface Modeled On The Microsoft Windows
Explorer
22
MIN-Viewer Segment Navigation 2
23
MIN-Viewer Asset Selection
24
MIN-Viewer Remote Site FFT Display
25
Conclusion

• For Further Information Contact
• Alan T. Johnston
• MIN Project Director
• atjohn_at_mimosa.org
• MIMOSA Web Site www.mimosa.org
