Topic Overview

1

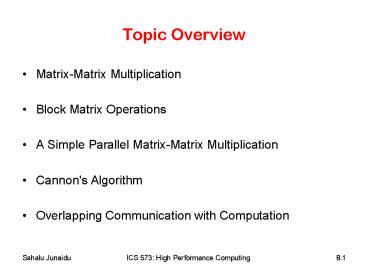

Topic Overview

• Matrix-Matrix Multiplication
• Block Matrix Operations
• A Simple Parallel Matrix-Matrix Multiplication
• Cannon's Algorithm
• Overlapping Communication with Computation

2
Matrix-Matrix Multiplication

• Building on our matrix-vector multiplication
  (Quinns Chapter 8), we now consider
  matrix-matrix multiplication
• multiplying two n x n dense, square matrices A
  and B to yield the product matrix C A x B.
• For simplicity, we use the following serial
  algorithm

3
Block Matrix Operations

• Matrix computations involving scalar algebraic
  operations on the matrix elements can be
  expressed in terms of identical operations on
  submatrices of the original matrix.
• Such algebraic operations on the submatrices are
  called block matrix operations.
• useful in matrix multiplication as well as in a
  variety of other matrix algorithms
• In this view, an n x n matrix A can be regarded
  as a q x q array of blocks Ai,j (0 i, j lt q)
  such that each block is an (n/q) x (n/q)
  submatrix.
• We perform q3 matrix multiplications, each
  involving (n/q) x (n/q) matrices.
• requiring (n/q)3 additions and multiplications

4
Block Matrix Operations
5
A Simple Parallel Matrix-Matrix Multiplication
Algorithm

• Consider two n x n matrices A and B partitioned
  into p blocks Ai,j and Bi,j (0 i, j lt ) of
  size each.
• Process Pi,j initially stores Ai,j and Bi,j and
  computes block Ci,j of the result matrix.
• Computing submatrix Ci,j requires all submatrices
  Ai,k and Bk,j for 0 k lt .
• All-to-all broadcast blocks of A along rows and B
  along columns.
• Perform local submatrix multiplication.

6
Matrix-Matrix Multiplication Performance Analysis

• The two broadcasts take time
• The computation requires multiplications of
  sized submatrices.
• The parallel run time is approximately

7
Drawback of the Simple Parallel Algorithm

• A major drawback of this algorithm is that it is
  not memory optimal
• Each process has blocks of both matrices
  A and B at the end of each communication phase
• Thus, each process requires
  memory
• Since each block requires memory
• The total memory requirement over all the
  processes is
• i.e., times the memory requirement of
  the sequential algorithm.

8
Matrix-Matrix Multiplication Cannon's Algorithm

• Cannon's algorithm is a memory-efficient version
  of the simple parallel algorithm
• With a total memory requirement of Q(n2)
• Matrices A and B are partitioned into p square
  blocks as in the simple parallel algorithm
• Although every process in the ith row requires
  all submatrices, the all-to-all broadcast
  can be avoided by
• scheduling the computations of the
  processes of the ith row such that, at any given
  time, each process is using a different block
  Ai,k.
• systematically rotating these blocks among the
  processes after every submatrix multiplication so
  that every process gets a fresh Ai,k after each
  rotation.
• If an identical schedule is applied to the
  columns of B, then no process holds more than one
  block of each matrix at any time

9
Communication Steps in Cannon's Algorithm
10
Communication Steps in Cannon's Algorithm

• First, align the blocks of A and B in such a way
  that each process multiplies its local
  submatrices
• shift submatrices Ai,j to the left (with
  wraparound) by i steps
• shift submatrices Bi,j up (with wraparound) by j
  steps.
• After alignment (Figure 8.3c)
• Process Pi,j has submatrices
  and .
• Perform local block matrix multiplication.
• Next, each block of A moves one step left and
  each block of B moves one step up (again with
  wraparound).
• Perform next block multiplication, add to partial
  result, repeat until all the blocks
  have been multiplied.

11
Cannon's Algorithm An Example

• Consider the matrices to be multiplied
•
•
• Assume that these matrices are portioned into 4
  square blocks as follows
•
•
•
• After the initial alignment, matrices A and B
  become

12
Cannon's Algorithm An Example

• After this alignment, process
• P0,0 ends up with A0,0 and B0,0 and should
  compute c0,0
• P0,1 ends up with A0,1 and B1,1 and should
  compute c0,1
• P1,0 ends up with A1,1 and B1,0 and should
  compute c1,0
• P1,1 ends up with A1,0 and B0,1 and should
  compute c1,1
•
• The local block matrix multiplications proceed as
  follows
•

13
Cannon's Algorithm An Example

• Shift 1 shift each block of A one step to the
  left and shift each block of B one step up
•
• Next, each process Pi,j performs block
  multiplication, updating Ci,j
•

14
Cannon's Algorithm Performance Analysis

• In the alignment step, the maximum distance over
  which a block shifts is ,
• the two shift operations require a total of
  time.
• Each of the single-step shifts in the
  compute-and-shift phase of the algorithm takes
  time.
• The computation time for multiplying
  matrices of size is .
• The parallel time is approximately

15
MPI_Cart_shift Function

• Shifting data along the dimensions of the 2-D
  mesh is a frequent operation in the Cannons
  algorithm
• MPI provides the function MPI_Cart_shift for this
  purpose.
• int MPI_Cart_shift(
• MPI_Comm comm_cart,/ communicator with
  Cartesian structure
  (handle)/
• int dir, / direction of shift (gt 0 up
  shift, lt 0 down shift) /
• int s_step, / shift size/displacement /
• int rank_source, / rank of source process
  /
• int rank_dest) / rank of destination
  process /
• Here is an example program exercising this
  function.

16
Sending and Receiving Messages Simultaneously

• To exchange messages, MPI provides the following
  function
• int MPI_Sendrecv(void sendbuf, int sendcount,

• MPI_Datatype senddatatype, int dest, int
• sendtag, void recvbuf, int recvcount,
• MPI_Datatype recvdatatype, int source,
• int recvtag, MPI_Comm comm, MPI_Status
  status)
• The arguments include arguments to the send and
  receive functions.
• If we wish to use the same buffer for both send
  and receive, we can use
• int MPI_Sendrecv_replace(void buf, int count,
• MPI_Datatype datatype, int dest,
• int sendtag, int source, int recvtag,
• MPI_Comm comm, MPI_Status status)
• A Parallel program for Cannons algorithm is here.

17
Overlapping Communication with Computation

• Our MPI programs so far used blocking
  send/receive operations to perform point-to-point
  communication.
• As discussed earlier,
• a blocking send operation remains blocked until
  the message has been copied out of the send
  buffer
• a blocking receive operation returns only after
  the message has been received and copied into the
  receive buffer.
• In the Cannon algorithm, for example, each
  process blocks on MPI_Sendrecv_replace
• until the specified matrix block has been sent
  and received by the corresponding processes.
• Note that the blocks of matrices A and B do not
  change as they are shifted among the processors
• Thus, we can overlap the transmission of these
  blocks with the computation for the matrix-matrix
  multiplication
• Many recent distributed-memory parallel computers
  have dedicated communication controllers that can
  perform the transmission of messages without
  interrupting the CPUs.

18
Non-Blocking Communication Operations

• In order to overlap communication with
  computation, MPI provides a pair of functions for
  performing non-blocking send and receive
  operations.
• int MPI_Isend(void buf, int count, MPI_Datatype
  datatype,
• int dest, int tag, MPI_Comm comm,MPI_Request
  request)
• int MPI_Irecv(void buf, int count, MPI_Datatype
  datatype,
• int source, int tag, MPI_Comm comm,
  MPI_Request request)
• These operations return before the operations
  have been completed.
• Function MPI_Test tests whether or not the
  non-blocking send or receive operation identified
  by its request has finished.
• int MPI_Test(MPI_Request request, int flag,
  MPI_Status status)
• MPI_Wait waits for the operation to complete. An
  example is here.
• int MPI_Wait(MPI_Request request, MPI_Status
  status)

19
Canons Algorithm using Non-Blocking Operations

• Here is the parallel program for Cannons
  algorithm using nonblocking operations
• Two main differences between this program and the
  earlier one using blocking operations
• Additional arrays a_buffers and b_buffers, are
  used for the blocks of A and B that are being
  received while the computation involving the
  previous blocks is performed.
• in the main computational loop, it first starts
  the non-blocking send operations to send the
  locally stored blocks of A and B to the processes
  left and up the grid, and then starts the
  non-blocking receive operations to receive the
  blocks for the next iteration from the processes
  right and down the grid.
• After starting these four non-blocking
  operations, it proceeds to perform the
  matrix-matrix multiplication of the blocks it
  currently stores.
• Finally, before it proceeds to the next
  iteration, it uses MPI_Wait to wait for the send
  and receive operations to complete.
