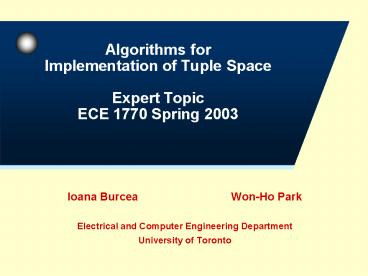

1Algorithms for Implementation of Tuple
SpaceExpert TopicECE 1770 Spring 2003
- Ioana Burcea Won-Ho Park
- Electrical and Computer Engineering Department
- University of Toronto
2Agenda
- Ioana
- Matching Algorithms (in Linda)
- Basic Terminology and Concepts
- Multi-Key Search Algorithm
- Won-Ho
- Linda Implementation of Tuple Space
3Basic Terminology
- Tuple (out operation)
- Ex
- (1, 4.0, Middleware)
- Template antituple (in operation)
- Ex
- (1, 4.0, ?x) x string
- (1, 4.0, Middleware)
- Tuple arity
- Ex
- (1, ?x) ? arity 2
- (1, 4.0, Middleware) ? arity 3
- Type signature
- Ex
- (1, 4.0, Middleware) ? (int, float, string)
4Matching Algorithms
- Exhaustive search too time consuming
- Optimizations
- Segmenting
- Orthogonal subspaces
- Based on
- tuple arity type signature
- constants
- Treated separately
- Searching
- Zero variable case
- In(mutex) Out(mutex)
- One variable case
- Single key index
- Multiple variable
- Multiple key search
5Patterns
- Actual parameter
- Ex
- (1, 4.0, Middleware) ? 1, 4.0, Middleware
- (1, 4.0, x) ? 1, 4.0, x
- Formal parameter (placeholder / wildcard)
- Ex
- ?x (x string)
- Tuple Pattern
- Bitvector
- its size is given by the arity of the tuple
- a bit is set if and only if it corresponds to a
actual parameter - Ex
- (1, 4.0, Middleware) ? (111)
- (1, 4.0. ?x) ? (110)
6Matching Semantics Using Patterns
- Compatible patterns
- Two tuples P and Q are compatible if and only if
P OR Q contains only 1s - Two tuples may match if and only if their
patterns are compatible - Must-match pattern
- Ex
- Out(a, b, c) ? pattern (111)
- In (x, ?y, z) ? pattern (101)
- Matching definition
- Two tuples match if and only if
- They have the same type signature
- Exactly one is an antituple
- Their patterns are compatible
- Their must-match values are equal
OR (111) ? compatible
AND (101) ? must-match pattern
7Multiple key search
- Applied inside each orthogonal subspace
- Basic idea
- Build the key search based on the pairs of
compatible patterns and must-match values - Ex
- Tuple pattern (111)
- Antituple patterns (010), (100), (110)
- an entry in the dictionary for each pair (tupple
pattern, antituple pattern) gt each tuple will be
referenced by multiple keys - the key of the entry also contains the must-match
values - the entry points to the tuple
- Ex out(3, 5, x) gt Key (0101115)
- ! One record per must-match pattern is not
sufficient ! - Property
- If two tuples have the same key gt they match
- Perfect hash function one to one correspondence
between search keys and the hash keys
8Offline Algorithm in operation
1) Lock subspace 2) Identify antituples pattern,
p, and store antituple where it can be found
via a pointer or other reference. 3) For each
compatible tuple pattern, c, in use, 4)
Combine p, c, and antituples must-match values
to form a search key, k. 5)
Search dictionary for a tuple reference indexed
by k. 6) If one is found, then 7)
Delete tuple, antituple and all their
references. 8) Goto 10.
else 9) Insert a reference to
antituple, indexed by k,
into dictionary. 10) Unlock subspace 11) If no
match was found, then 12) Suspend
execution until signalled else 13)
Return match result
9Online Algorithm
- Adapt the tuple space whenever a new pattern is
encountered
2.1) If p is a new antituple pattern, then 2.2)
Create a new list for p 2.3) For each
old, compatible tuple pattern q 2.4)
For each tuple t on qs list 2.5)
Insert into dictionary a new reference to t,
based on p and q 2.6)
Insert antituple in ps list
- Discussion
- Usually, no perfect hash
- Each hash entry has a hash chain
- The hash chain has to be checked until a match is
found
10Virtual Linda Machine (VLM)Implementation of
Linda on Networks
- TupleSpaces is a virtually shared memory
- How to implement TupleSpaces in the absence of
shared memory - How to find Tuples and where keep them
- Components of VLM
- Hardware
- Network Communication Kernel
- Compiler
- Hardware is networks, or network computers
- The kernel is the program resident on each
network node that implements inter-node
communication - Performing In(), out(), read() primitive
instructions on networks by sending or
broadcasting messages - The compiler adds code for maintaining buffer
(shared memory)
11Run-Time Name Resolution in VLMHow to find
Tuples
- VLM should provide Name(Tuple)-to-Node(address)
mapping information - Centralized in directory nodes
- Distributed network-wide (e.g., by means of a
network-wide broadcast) - The communication kernel translates Tuple-names
into network-addresses on a per-reference basis - Network state and its storage
- Only one node generating state information
maintains the state - All nodes maintain all state by broadcasting
- VLM uses N1/2-Node Broadcast Technique.
12N1/2-Node Broadcast Techniqueand Name Resolution
- Write set row nodes
- Read set column nodes
- P-in-thread process
- P-out-thread process
- P-in-thread is intercepted by a P-out-thread on
node k. - A notification message is generated on k-node,
and sent to m-node - The message instructs m-node to send tuple(P) to
n-node.
A Network Topology
P-out-thread
m
Out(P)
P-in-thread
k
n
In(P)
13BufferingWhere to keep Tuples
- VLM is required to simulate Lindas infinite
global buffer - Buffer is allocated by the compiler-generated
code, not by the kernel - in(P.) allocating a buffer on the execution
stack of the process, and referred to buffer P. - out(P) Tuples are stored in per-process heaps,
and destroyed when it is delivered - Header information required by the communication
system - If a process terminates with undelivered Tuples
- The buffers are maintained by the communication
kernel until delivery occurs
