Title: Disaster Management e-Gov Initiative Program


1

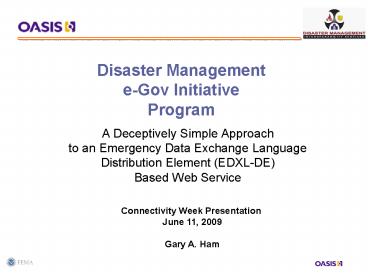

Disaster Management e-Gov InitiativeProgram
  • A Deceptively Simple Approach
  • to an Emergency Data Exchange Language
  • Distribution Element (EDXL-DE)
  • Based Web Service

Connectivity Week Presentation June 11,
2009 Gary A. Ham
2
Disaster Management Program CapabilitiesDM
Framework
  • DM-Framework
  • User Facing Interface
  • Available to Responders and Emergency managers
  • An integration station for applications that
    may need to be concurrently accessed on the desk
    top
  • Defines ways by which applications can be
    plugged in
  • Users can create a computing and communication
  • device that meets their individual
    requirements
  • Interacts with other systems via DM-OPEN

3
Disaster Management Program CapabilitiesDM-OPEN
  • DM-OPEN
  • Application Facing Middleware as a free
    Government Service - Federal infrastructure
  • Operational non-proprietary interoperability
    backbone
  • A vendor neutral Web services platform open to
    all - Acts as a level playing field
  • Allows disparate third-party applications,
    systems, networks and devices to share
    information in a non-proprietary, open based
    standards format.
  • Connects Emergency Systems to Each Other
  • Uses Emergency Messaging Standards
  • EDXL-DE and CAP
  • NIEM IEPDs

Federal Infrastructure
4
DM-OPEN A Totally Non-proprietary Solution
  • DM-OPEN is actually open.
  • Enables interoperability between differing
    networks
  • APIs are publicly available
  • DM-OPEN is government infrastructure
  • No vendor controls DM-OPEN, nor does any vendor
    control access
  • Prototype development and production activity is
    not restricted by license, non-disclosure
    agreement, or any other form of intellectual
    property control
  • Supports the delivery of real-time data and
    situational awareness to public emergency
    responders in the field, at operation centers,
    and across all levels of response management
  • Serves as test bed to facilitate the development
    of open non-proprietary standard to support
    interoperable information sharing for the
    emergency responder community

Allows disparate networks to connect to each other
A network of networks
5
Benefits DM-OPEN
  • Reduced cost of development
  • One interface is usable by other DM-OPEN partners
  • Cost of connectivity is dramatically reduced
  • A system only has to write to one interface per
    ICS function instead of one for each connecting
    system per ICS function
  • Example WebEOC, Previstar, E-Team, MyStateUSA
    and the DMIS Tools (and others) have all built a
    Common Alerting Protocol (CAP) exchange
    capability through DM-OPEN.
  • This amounts to 10 possible pathways for CAP
    Alerts between systems
  • There are 15 possible connection paths for the
    cost of 6 interfaces
  • The benefit increases
  • Reduced system rigidity
  • Loosely coupled systems using standard messaging
  • Easy to update an application in one area without
    affecting the others, making maintenance easier,
    and improvement more fluid and less traumatic in
    terms of installation and training costs

6
DM-OPEN Interoperability is Available Today
  • DM-OPEN is Federal infrastructure
  • Operational today In production
  • Available at no cost to end users
  • Uses common XML data standards
  • Application, system, and tool agnostic.
  • Its not a we will have it soon.
  • It is a fully funded program that can be
    leveraged to help solve information sharing and
    interoperability issues.

7
CAP In Production 4 Different Products Same
Data
8
DM-OPEN Improvement Pending
  • Our current interfaces are RPC-encoded SOAP
  • This is fine in a function-oriented,
    other-than-Microsoft environment
  • It is out of date in a Web 2.0 SOA environment
  • It is costly to maintain as new EDXL (and other)
    standards come into Play
  • The new Goals
  • A truly data-driven interface that relies on the
    content of the request document to define the
    actions of the server and what is returned in
    response
  • Make EDXL-DE the centerpiece for the interface
    (CAP1.1 and NWEM are maintained, but every thing
    else will be DE Driven)
  • A single request response pattern for all
    activity.

9
DM-OPEN A Concept of Operations for the DE
  • One DE interface for all content types
  • One connection to build even as the number of
    data standards increase
  • Data driven retrieval as opposed to process
    driven
  • Data driven interest registration
  • Access to values allowed in known ValueList URN
    Structures
  • A low-cost solution to participation in a network
    of networks

10
Leveraging the Distribution ElementTo Meet
Multiple Information Sharing Requirements
  • DE serves two primary purposes
  • Allows an organization to wrap and characterize
    important pieces of information into a single
    easy-to-distribute XML "package for sharing
  • Allows an organization to "address" the package
    in flexible ways to support intelligent routing
    including specification of recipients by role,
    geographic area, or keywords
  • Organizations can use standardized lists of roles
    or keywords, or their own for additional
    flexibility and tailoring.

11
DM-Open as a Virtual Post Office
DM-OPEN is a backbone message distribution server
maintained by DHS that acts as a Virtual post
office.
COGs are mailboxes
  • EDXL DE
  • Facilitates discriminatory access Metadata
  • Role-based permissions
  • geo-location

12
DM-OPEN Excerpts from Design Documentation
  • All complexity is hidden
  • Used Oracle Identity Management, BPEL, Oracle Web
    Service Manager, and the Oracle Service Registry
    behind the scenes
  • Uses two operations (WSDL Port Types) for all
    transactions
  • postOp()
  • getRequestOp()

Drawing Courtesy IBMs EADIS Design Team for
DM-OPEN
13
DM-OPEN Scope at IOC
  • The two use cases cover the entire scope of the
    actions that the using system is able to perform.
  • The Post and Request/Receive use cases contain
    several sub-use cases with detailed data
    manipulation actions
  • Post and Request/Receive are common message
    transaction services

Post and Request/Receive use cases form the base
for the specific message service use cases
Drawing Courtesy IBMs EADIS Design Team for
DM-OPEN
14
DM-Framework DM-OPEN Support Incident
Coordination Management
  • Information needs to be managed and shared
  • Within a Single organization
  • Laterally between multiple peer organizations
  • Along the Chain of Command
  • Vertically
  • Externally
  • To the public

Facilitation and information exchange, but NOT
command and control !!!
15
Contact Information
  • For Information on DM-OPEN -http//www.disasterhel
    p.gov/disastermanagement/open/index.shtm
  • To request DM-OPEN Access - http//fema.eyestreet
    .com/dmis/administratorUpdate.do?actionInittype
    Interop
  • For Frequently Asked Questions -
    http//www.disasterhelp.gov/disastermanagement/ope
    n/faqs.shtm
  • DM-OPEN Support
  • For developer assistance with implementation
    questions, please email OPEN_at_eyestreet.com.
