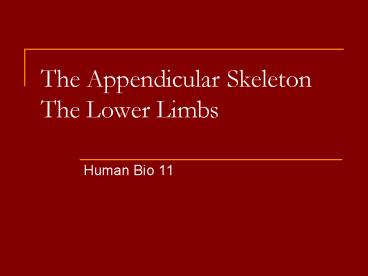

The Appendicular Skeleton The Lower Limbs

1
The Appendicular SkeletonThe Lower Limbs

• Human Bio 11

2
(No Transcript)
3
Pelvic Girdle
Which is male and which is female?
Female Pelvis
Male Pelvis
4
Pelvic Girdle

• Bowl shaped.
• Connects vertebral column to the legs.
• Strong
• Bears most of the weight of the body.
• Bears forces of leg movements.

5
Pelvic Girdle

• Function
• Protects organs of the urinary tract and
  reproduction.
• Provides attachment for muscles used for
  locomotion and posture.
• Women have a wider and lighter pelvis than males,
  and the opening is significantly larger so that
  they can give birth.

6
Femur

• AKA thigh bone.
• Largest and strongest bone in body.
• Joint type
• Ball and socket at hip
• Hinge at knee.

7
Patella

• AKA knee cap.
• Bone type
• Flat.
• In front of femur and tibia joint for protection.

• Loosely attached to allow movement.

8
Tibia

• AKA shinbone or shank bone.
• Largest and strongst of the two bones in the
  lower leg.
• Connects with the knee and the ankle.
• Medial bone of the leg.

9
Fibula

• AKA calf bone.
• Smaller of two bone in leg.
• Does not bear any weight.
• Supports the ankle.
• Located on lateral side of tibia.

10
(No Transcript)
11
Tarsals

• AKA ankle.
• Bone type
• Short.
• Joint type
• Gliding.
• 7 bones.
• The calcaneus is the largest tarsal bone
• AKA heel bone.

12
Metatarsals

• AKA foot.
• 5 bones.

13
Phalanges

• AKA toes.
• Each toe has 3 bones, but the big toe has 2
  bones.

14
(No Transcript)
15
(No Transcript)
16
Assignment

• Compare and contrast the upper and lower limbs.
