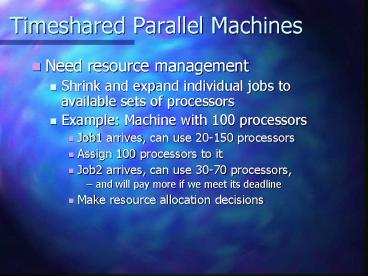

Title: Timeshared Parallel Machines


1
Timeshared Parallel Machines
  • Need resource management
  • Shrink and expand individual jobs to available
    sets of processors
  • Example Machine with 100 processors
  • Job1 arrives, can use 20-150 processors
  • Assign 100 processors to it
  • Job2 arrives, can use 30-70 processors,
  • and will pay more if we meet its deadline
  • Make resource allocation decisions

2
Multiple Parallel Machines
  • Faucet submits a request
  • CPU seconds, min-max cpus, deadline, interacive?
  • Parallel machines submit bids
  • A job for 100 cpu hours may get a lower price bid
    if
  • It has less tight deadline,
  • more flexible PE range
  • A job that requires 15 cpu minutes and a deadline
    of 1 minute
  • Will generate a variety of bids
  • A machine with idle time on its hand low bid

3
How to make all of this work?
  • The key fine-grained resource management model
  • Work units are objects and threads
  • rather than processes
  • Data units are object data, thread stacks, ..
  • Rather than pages
  • Work/Data units can be migrated automatically
  • during a run

4
Anonymous Compute Power
What is needed to make this metaphor
work? Timeshared parallel machines in the
background effective resource management Quality
of computational service contracts/guarantees Fron
t ends that will allow agents to submit jobs on
users behalf
Computational Faucets
5
Computational Faucets
  • What does a Computational faucet do?
  • Submit requests to the grid
  • Evaluate bids and decide whom to assign work
  • Monitor applications (for performance and
    correctness)
  • Provide interface to users
  • Interacting with jobs, and monitoring behavior
  • What does it look like?

A browser!
6
Faucets QoS
  • User specifies desired job parameters such as
    program executable name, executable platform, min
    PE, max PE, estimated CPU-seconds (for various
    PE), priority, etc.
  • User does not specify machine. Faucet software
    contacts a central server and obtains a list of
    available workstation clusters, then negotiates
    with clusters and chooses one to submit the job.
  • User can view status of clusters.
  • Planned file transfer, user authentication,
    merge with Appspector for job monitoring.

Workstation Cluster
Faucet Client
Central Server
Workstation Cluster
Web Browser
Workstation Cluster
7
Time-shared Parallel Machines
  • To bid effectively (profitably) in such an
    environment, a parallel machine must be able to
    run well-paying (important) jobs, even when it is
    already running others.
  • Allows a suitably written Charm/Converse
    program running on a workstation cluster to
    dynamically change the number of CPU's it is
    running on, in response to a network (CCS)
    request.
  • Works in coordination with a Cluster Manager to
    give a job as many CPU's as are available when
    there are no other jobs, while providing the
    flexibility to accept new jobs and scale down.

8
Appspector
  • Appspector provides a web interface to submitting
    and monitoring parallel jobs.
  • Submission user specifies machine, login,
    password, program name (which must already be
    available on the target machine).
  • Jobs can be monitored from any computer with a
    web browser. Advanced program information can be
    shown on the monitoring screen using CCS.

9
BioCoRE
Goal Simulate the process of doing research.
Provide a web-based way to virtually bring
scientists together.
  • Project Based
  • Workbench for Modeling
  • Conferences/Chat Rooms
  • Lab Notebook
  • Joint Document Preparation

http//www.ks.uiuc.edu/Research/biocore/
