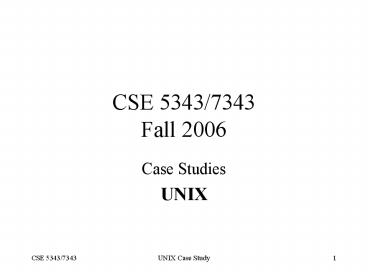

CSE 5343/7343 Fall 2006

1
CSE 5343/7343Fall 2006

• Case Studies
• UNIX

2
UNIX Case Study Outline

• History
• Design Philosophy
• Process Management
• Processes
• PCB/Process Table/U Area
• Process States
• Process Scheduling/Priorities
• IPC
• Memory Management
• File Systems

3
History (2,3)

• 1965 Bell and GE joined project MAC at MIT to
  develop Multics. Goal multicomputing and data
  sharing for a large group of users.
• Ken Thompson (Bell) developed a game called
  Space Travel and found an unused PDP-7.
• 1969
• Thompson and Ken Ritchie implemented an earlier
  designed file system on PDP-7.
• This grew into UNIX.
• File system design and idea of command
  interpreter (shell) as a user process came from
  Multics
• Fork idea came from Berkeleys GENIE OS.

4
History (contd)

• 1971 UNIX used in first real project text
  processing for BELL labs patent department.
• 1971 UNIX required 16K bytes for system, 8K
  bytes for user programs, 512K bytes of disk, and
  limit of 64K disk bytes per file.
• Thompson set out to write a new Fortran compiler
  but developed a new programming language B. B
  was based on BCPL (a tool for compiler writing
  and systems programming). B was interpretive.
  He later improved on B and called it C.
• 1973 UNIX rewrittten in C (unheard of at the
  time). ATT offered UNIX free to universities.
• 1974 Ritchie and Thompson paper describing UNIX
  in CACM.

5
History (contd)

• 1977 - Bell combined several versions into UNIX
  System II and marketed. History (contd)
• 1978 After distribution of Ver7 in 1978, the
  Unix Support Group (USG) at ATT took over
  responsibilities from the research for
  distribution within ATT.
• 1982 First external distribution from USG
  System III.
• UC Berkeley developed their version of UNIX
  (Berkeley software Distributions).
• BSD introduced vi in 2BSD, demand-pages virtual
  memory in 3BSD, TCP/IP networking protocol in
  4.2BSD.
• Less than 3 of BSD written in assembly.
• 1991 Finnish student Linus Torvalds wrote Linux
  for 80386, 32 bit processor

6
Design Philosophy (2,3)

• Smplicity
• C
• Time-sharing
• Simple user interface (modular and may be
  replaced)
• Device independence (treat files and devices in
  same manner)
• Aimed for programming environment
• Flexibility

7
Design (contd)

• Programs such as shell and vi interact with
  kernel using well defined system call procedures.
• Cc built on top of c preprocessor, two-pass
  compiler.

8
UNIX

• Process
• Management

9
Processes

• Process is program in execution
• Consists of machine instructions (text), data,
  and stack regions.
• Separate stack for user and kernel mode.
• PID (Process ID)
• Processes are either user processes, daemon
  processes, or kernel processes.
• Daemons are not associated with user, but do
  system wide functions. Init may create daemons
  that exist throughout the life of the system or
  as needed.

10
Solaris Threads (3)

• Kernel and user level threads
• Only kernel level threads are scheduled
• Implements Pthread API
• LWP between kernel and user level threads
• Each LWP associated with a kernel thread.
• User processes have at least one LWP.
• User threads may be bound or unbound to a LWP.
• May have kernel thread without LWP.
• Pool of LWPs for a process

11
Solaris Threads (contd)

• User level thread
• Thread ID
• Registers
• Stack pointer/stack
• Priority
• Process
• Process ID
• Memory map
• Open files
• Priority
• LWPs

• Kernel thread
• Copy of kernel registers
• Pointer to LWP
• Priority
• Scheduling information
• Stack
• LWP
• Registers
• Memory
• Accounting information

12
PCB (1,2,4)

• Process Table
• State
• UID for owner
• Memory status (swapped or in memory)
• Parent PID
• Child PID
• Event descriptor if suspended
• Entry in kernel process table that points to
  process region table. These in turn point to
  entries in the region table and to the regions
  for that process. This allows independent
  processes to share regions.

13
U (User) Area (2)

• Information needed when process is executing.
• Process table slot
• Information about current system call
• File descriptors for open files
• Current directory
• Current root
• Login terminal
• Kernel has direct access to U area of currently
  executing process.

14
Process States (1,2)

• No context switch is needed to go from state 2 to
  state 1.
• States 3 and 7 are really the same.
• I/O request puts process to sleep.
• Zombie state Child has finished execution, but
  parent wants to get information about it from the
  PCB.

15
Process Hierarchy (1)

• Initial boot process (0) forks a child (process
  1) and process 0 becomes the swapper. Process 1
  is init process and is ancestor of all other
  processes.
• Parent/Child/Sibling relationship indicated by
  pointers in process table.
• Execve usually called to replace memory portion
  of new process.
• Exit process termination
• Wait Parent waits for child to exit. Reclaims
  process resources.
• Process group ID (GID) in process table
• Execute ps -alx

16
Process Scheduling(2,3,5)

• Typical time slice values
• 4.3BSD 1/10 second
• System V 50-100 times per second
• Round robin multilevel feedback queue
• At end of context switch, kernel executes
  algorithm to schedule a process.
• Highest priority process which is ready is
  scheduled. On tie, picks the one which has
  waited the longest.

17
Process Scheduling (contd)

• Higher number Lower Priority
• User and kernel priorities user below kernel.
• User mode priority is function of recent CPU
  usage. Lower priority if recently used CPU.
• Priority assigned based on process group

18
Process Scheduling (contd)

• Kernel to user mode change to user mode and
  calculate based on kernel resources just used.
• Clock Handler adjusts all user mode process
  priorities at 1 second (System V) intervals and
  causes kernel to reschedule.
• Decay function adjusts recent CPU usage values at
  this time decay(CPU) CPU/2
• Priority is recalculated at these 1 second
  intervals plus when a process is in the preempted
  but ready to run state priority CPU/2 base
  level priority
• Base level priority is the threshold between user
  and kernel mode.
• Processes move up in queue but can not change to
  kernel mode.

19
IPC (2,3)

• Pipes Only used from descendents of process
  that created the pipe.
• Named Pipes- Used by unrelated processes. Has a
  directory entry and is accessed as a file.
• Signals
• Inform process of occurrence of asynchronous
  events.
• Handling of signal by user process. Address of
  this routine is located in uarea next to signal
  number.
• Socket
• Introduced by 4.2BSD
• Transient object Exists only as long as some
  process holds a descriptor referring to it.
• Created by socket system call

20
IPC (contd)

• Messages (System V)
• On sending a message, a new entry is added to the
  associated linked list and the message is copied
  form the uarea. Message headers arranged in FIFO
  order.
• Kernel awakens processes waiting for a message
  from this queue.
• On receiving a message, process indicates what
  should be done if no message on the queue.

21
IPC (contd)

• Shared Memory (System V)
• System call creates a new region of shared memory
  or returns a current one.
• Reading and writing is done as normal no system
  calls.
• Shared memory remains in tact even if no
  processes include it in their virtual address
  space.

22
IPC (contd)

• Semaphores (System V)
• System calls create and use semaphore.
• Semaphore array where each entry is the count
  value.
• If process is put to sleep, it sleeps at an
  interruptable priority and wakes up on receipt of
  a signal.
• Handled similar to messages with id being the
  entry in the semaphore table.

23
UNIX

• Memory
• Management

24
Memory Management (1,2)

• Depends on platform and version
• Early versions
• Swapping
• Transferred entire processes
• 3BSD First demand-paged VM

25
Swapping (2)

• Kernel swaps out a process if more memory space
  needed
• Fork system call must allocate space for child
• Size of process increases
• Kernel wants to free memory for processes
  previously swapped out
• Picking target process
• Zombie are not swapped (they take up no memory)
• Sleeping swapped out before ready to run
• Depends on Priority and time in memory
• If no sleeping process then ready to run based on
  nice value and time in memory

26
Swapping (contd)

• Nice Value used to change to scheduling priority
• Process 0 Swapper
• Highest scheduling priority
• Problem thrashing

27
Demand Paging System V 2

• Approximate working set
• Additional Page Table entries Valid
• Reference
• Modify
• Copy on Write New copy must be created if
  updated
• Age Time in working set
• Disk Block Descriptor
• Location on disk (VM)
• Demand fill Immediately overwrite contents
  during exec
• Demand zero Clear contents

28
Address Translation (4.3BSD Vax)1

• Each region of address space mapped to a separate
  pag etable
• Separate User and system area page tables
• Two-level mapping, first level page tables reside
  in virtual memory
• Page is 512 bytes
• Virtual address
• First two bits indicate regions
• 10 system
• 01 P0 - stack (user stack, kernel stack)
• 00 P1 - Heap, data, text
• User translation requires two levels of
  translation

29
Page Replacements Clock (4.3) 1
30
Clock Algorithm Example
Process 1
PT
0 1 2 3 4
Frame
Update
Disk
Valid
Process 2
PT
31
Start State
0 1 2 3 4
32
Create Process 1 / Load into VM
Process 1
PT

0 0 0 0
0 1 2 3 4
A B C D
Frame
Update
Disk
Valid
33
Load 1st Two Pages of P1 into Memory
Process 1
PT

0 0
1 3
1 1 0 0
A B
0 1 2 3 4
A B C D
Frame Table
1 0 1 0 1
1 1
Frame
Update
Disk
Valid
PID
Ref
Free
34
P1 Begins Executing using Pages 01
Process 1
PT

0 0
1 3
1 1 0 0
A B
0 1 2 3 4
A B C D
Frame Table
1 0 1 0 1
1 1
1 1
Frame
Update
Disk
Valid
PID
Ref
Free
35
Create Process 2 / Load into VM
Process 1
PT

0 0
1 3
1 1 0 0
A B
0 1 2 3 4
A B C D
Frame Table
1 0 1 0 1
1 1
1 1
Frame
Update
Disk
Valid
Process 2
PT
PID
Ref
Free
D E F

0 0 0
36
Load 1st Two Pages of P2 into Memory
Process 1
PT

0 0
1 3
1 1 0 0
E A D B
0 1 2 3 4
A B C D
Frame Table
0 0 0 0 1
2 1 2 1
0 1 0 1
Frame
Update
Disk
Valid
Process 2
PT
PID
Ref
Free
D E F

0 0
1 1 0
2 0
37
P2 Begins Executing using Pages 01 Update Page
1
Process 1
PT

0 0
1 3
1 1 0 0
E A D B
0 1 2 3 4
A B C D
Frame Table
0 0 0 0 1
2 1 2 1
1 1 1 1
Frame
Update
Disk
Valid
Process 2
PT
PID
Ref
Free
D E F

0 1
1 1 0
2 0
38
P2 Page Fault for Page 2 P1 Executes During
Paging I/O
Process 1
PT

0 0
1 3
1 1 0 0
E A D B F
0 1 2 3 4
A B C D
Frame Table
0 0 0 0 0
2 1 2 1 2
1 1 1 1 0
Frame
Update
Disk
Valid
Process 2
PT
PID
Ref
Free
D E F

0 1 0
1 1 1
2 0 4
39
I/O Completion Interrupt P2 Begins Execution -
Updates Page 2
Process 1
PT

0 0
1 3
1 1 0 0
E A D B F
0 1 2 3 4
A B C D
Frame Table
0 0 0 0 0
2 1 2 1 2
1 1 1 1 1
Frame
Update
Disk
Valid
Process 2
PT
PID
Ref
Free
D E F

0 1 1
1 1 1
2 0 4
40
Timer Interrupt P1 Begins Execution Page
Fault for Page 2 No Free Frames Initiate
Clock Algorithm for Page Replacement
Process 1
E A D B F
0 1 2 3 4
41
Replace Frame 0 Must swap out to disk as updated
Process 1
PT

0 0 0
1 3 0
1 1 1 0
C A D B F
0 1 2 3 4
A B C D
Frame Table
0 0 0 0 0
1 1 2 1 2
0 0 0 0 0
Frame
Update
Disk
Valid
Process 2
PT
PID
Ref
Free
D E F

0 1 2
1 0 1
2 0 4
42
References

• Samuel J. Leffler, Marshall Kirk McKusick,
  Michael J. Karels, and John S. Quarterman, The
  Design and Implementation of the 4.3 BSD UNIX
  Operating System, Addison-Wesley, 1989.
• Maurice J. Bach, The Design of the UNIX Operating
  System, Prentice Hall, 1990.
• Abraham Silberschatz, Peter Baer Galvin, and Greg
  Gagne, Operating System Concepts Sixth Edition,
  John Wiley Sons, 2002.
• Milan Milenkovic, Operating Systems Concepts and
  Design Second Edition, McGraw Hill, 1992.
• Andrew S. Tanenbaum, Modern Operating Systems,
  Prentice Hall, 1992.
