24 CI Agent Oil Stop Valve Install

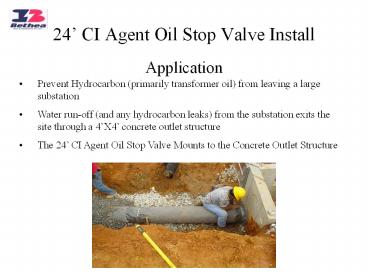

Application

• Prevent Hydrocarbon (primarily transformer oil)
  from leaving a large substation
• Water run-off (and any hydrocarbon leaks) from
  the substation exits the site through a 4X4
  concrete outlet structure
• The 24 CI Agent Oil Stop Valve Mounts to the
  Concrete Outlet Structure

2
24 CI Agent Oil Stop Valve Delivers in Four 6
Sections
3
Installation Step 1 2

• Place a gravel bed for the CI Agent Oil Stop
  Valve to rest on. The gravel is deep enough to
  allow the flange to center over the inlet holes
  that lead into the concrete outlet structure. The
  gravel bed is sloped to allow a ½ grade toward
  the outlet structure.
• Mount the flanged 6 Section of the CI Agent Oil
  Stop Valve with gasket (included) to the concrete
  outlet structure using ½X 6 Length concrete
  anchors (included).

4
Installation Step 3

• Connect the 6 sections of the CI Agent Oil Stop
  Valve together.
• One end of the CI Agent Oil Stop Valve has a
  belled end which connects to the next non-belled
  section. The sections are not solvent welded
  together.
• Each 6 section has a rubber collar that overlaps
  the previous 6 section

5
Installation Step 4

• Tighten a Stainless Steel Clamp (Included) using
  a flat head screw driver over each rubber collar.

6
Installation Step 5

• Place Gravel over the entire length of the CI
  Agent Oil Stop Valve

7
