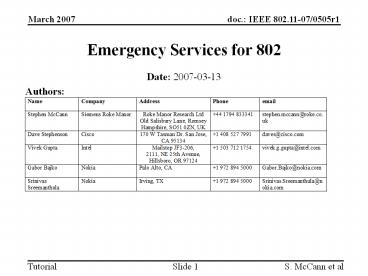

Emergency Services for 802

1
Emergency Services for 802

• Date 2007-03-13

Authors
2
Note

• This presentation was originally produced for an
  IEEE 802 tutorial on 13th March 2007. This
  version has been re-formatted and shortened for
• IEEE/IETF ECRIT meeting in Prague, March 2007
• 2nd SDO Emergency Workshop, Washington D.C. 2007

3
Content

• Scope Motive
• Introduction
• Requirements
• IEEE 802.11
• Use Case with IEEE 802.21 IS
• Vehicular Communications
• Concluding Issues

4
Introduction

• This presentation reflects work in progress. Its
  intention is to inform members about ongoing
  efforts to standardise emergency services within
  IEEE 802.
• It does not attempt to provide definitive
  solutions to all problems.
• It hopefully will encourage all projects and
  members to consider whether their technology will
  meet the future requirements of regulatory bodies
  for emergency service provision.

5
Scope

• Within this tutorial we define Emergency Services
  as
• Suitable for IEEE 802 Wireless technologies
• Emergency voice calls
• Network push alerts (e.g. Emergency Alert System
  EAS)
• Vehicle communication
• non-VoIP calls (e.g. multi-media)
• Three types of Emergency Service (ES)
• citizen-to-authority
• authority-to-citizen
• authority-to-authority

6
Motive

• There is an overarching concern for a consistent
  approach by standards development organizations
  (SDOs see later) to address social policy
  expectations, such as full Emergency Service
  capability, in relation to emerging access
  technologies.
• Location identification and callback capability
  represent baseline requirements for emergency
  service.
• Call integrity is of prime concern

7
Requirements
8
Emergency Calls in Random Countries

• Philippines 112 or 911 police 117
• Singapore fire and medical 995 police 999 112
  and 911 can be dialed from mobile phones
• South Korea police 112 fire and medical 119
• Sri Lanka police emergency 119 accident service
  11-2691111
• Lithuania 112 fire 01, 101, or 011 police 02,
  102, or 022 medical 03, 103, or 033. Note the
  non-112 numbers are for separate emergency
  services differ in distinct telecommunications
  networks, whereas 112 available on all networks.
• Vietnam 115 police 113 fire 114
• Switzerland fire 118 police 117 medical 144
  poison 145 road emergency 140 psychological
  support (free and anonymous) 143 psychological
  support for teens and children (free and
  anonymous) 147 helicopter air-rescue (Rega) 1414
  or by radio on 161.300 MHz.
• http//en.wikipedia.org/wiki/Emergency_telephone_n
  umberEmergency_numbers_by_country

9
Emergency Alert System (EAS)

• http//wonkette.com/politics/television/emergency-
  alert-system-actually-used-183830.php

10
IEEE 802.11
11
Generalized Emergency Call procedure

• Location determination ( in cellular networks,
  this might be done by the network on behalf of
  the mobile phone) with Location Configuration
  Protocols (LCP)
• Location representation (geo, civic cell-id for
  cellular)
• Mapping database discovery
• Location to Service Translation (LoST)
• Location conveyance

12
Issues to be solved for IEEE 802.11

• ES identification
• Location information
• Some procedure to fetch the location information
  by higher layers when initializing the call may
  be required.
• Mobile terminal
• Network edge device (e.g. Access Point, Base
  Station)
• Unauthenticated Network Access (e.g. IEEE 802.11)
• Admission Control
• QoS dedicated bandwidth
• preemption

13
IEEE 802.11 Emergency Call Setup
14
Location

• Location information is being developed by IEEE
  802.11k (Geospatial) and IEEE 802.11v (Geospatial
  Civic)
• Request/Response paradigm
• Client may request from the access point
• its own location
• the location of the access point
• GeoPriv used to wrap location information
• Location standard formats supported include GEO
  and CIVIC
• Control and Measurement mechanisms to enable
  tracking continuously

15
Unauthenticated Network Access

• Public user credentials. In this situation, a
  client uses the defined network selection method
  to query candidate networks to determine which
  one (or several) supports VoIP, end-to-end QoS
  and emergency services. Once this has been
  determined, the client associates to the SSID
  corresponding to the chosen network using public
  user credentials. It may be necessary to define a
  default EAP method along with the credentials in
  order enable this operation.
• Use an SSID configured for Open Authentication,
  that is only suitable for obtaining emergency
  service (i.e., and not suited for obtaining other
  hotspot services such as internet access).
  Network elements necessary to complete an
  emergency call are reachable via this SSID. How
  to reach these network elements (e.g., a Call
  Manager) and which protocol to use (e.g., SIP)
  are outside the scope of IEEE 802.11.

16
Admission Control

• A QoS enabled client requests bandwidth using a
  TSPEC Request in an action frame.
• Currently a TSPEC Request includes parameters
  describing the characteristics of the traffic
  stream, but no information on the actual use of
  the traffic stream.
• To indicate emergency call initiation, it is
  proposed that a new Expedited Bandwidth Request
  element is used. It is the responsibility of the
  client to transmit this element.

17
Use Case using an IEEE 802.21 Information Server
(IS)
18
Architecture
AAA
Carrier Network
IEEE 802.21 Information Server
VLAN 5 Note There does NOT need to be a 1-to-1
mapping between this and SSID 5.
DHCP
AP (11u-capable)
SSID 5
STA (11u-capable)
19
IEEE 802.21 Information Server (IS)

• Networks may support means to determine, help in
  determining or provide the location to the
  clients at various layers
• Link layer specific ones LLDP-MED, U-TDoA,
  D-TDoA
• Link layer agnostic ones DHCP, OMA SUPL, RELO,
  HELD (HTTP based)
• Other SDOs defined different LCPs
• Service providers need flexibility on how
  location services are offered in their network
• IEEE 802.21 provides a logical place to support a
  comprehensive list of all support options using
  IS

20
Emergency Call with 802.21 IS
21
Vehicular Communications
22
Vehicular Communications

• Emergency communications is a major focus of ITS
  (Intelligent Transport Systems) activity, and it
  was a significant topic at the March 2005 ITU
  Workshop.
• Project MESA is also helping to call attention to
  this area and providing high-level direction.
• Two distinct areas for wireless communications
• MBW New work item in ISO/TC204/WG16 Specific
  Mobile Broadband Wireless Access Communications
  Systems, e.g. IEEE 806.16e, IEEE 802.20
• DSRC IEEE 1609 continues work on application
  layer standards for IEEE 802.11p

23
Vehicular Communications

• DSRC/WAVE. Dedicated short-range communications
  (DSRC) at 5.9 GHz using an IEEE 802.11p base is
  now called WAVE (Wireless Access in Vehicular
  Environments).
• The U.S. FCC has allocated 75 MHz of bandwidth
  for ITS applications in this band, with emphasis
  on public safety and, in the U.S., WAVE may
  become a U.S. federally funded vehicle-data
  network separate from the cellular network.

24
Vehicular Communications

• Mobile wireless broadband (MWB) represents an
  important part of a public sector (particularly
  public safety) solution. MWB can provide a
  consistent and robust capacity that can serve
  routine operations, but provide priority for
  emergencies.
• MWB is useful for commercial applications of ITS
  as well as to support public agency and public
  safety applications, due to its ability to
  function well over large distances and at high
  travel speeds. It is vitally important for
  commercial and public uses of MWB to remain
  consistent with one another, including the
  ability to prioritise messages, especially in
  case of emergencies.

25
2nd SDO emergency services coordination workshop

• 2nd SDO Emergency Services Workshop hosted by the
  U.S. Department of Transportation (DOT).
• The workshop will be held April 10, 11 12,
  2007, from 830 am - 600 pm., in the Jefferson
  Building of the Library of Congress, located at
  101 Independence Avenue SE in Washington, D.C.
• Please find updated information at this webpage
• http//www.emergency-services-coordination.info/20
  07/

26
Concluding Issues
27
Concluding Issues

• Dont assume that IEEE 802 technologies can
  already support all ES requirements
• call back facilities ?
• terminal location ? geospatial or civic?
• does Civic location, make sense, for large scale
  systems?
• How far do we want to pre-empt upcoming
  regulations?
• 2 years?
• 10 years?
• What does the market require?
• Similar issues to Legal Intercept?
• Does IEEE 802 want closer liaisons with other
  SDOs
• Comments welcome
