Traffic Engineering for ISP Networks

1

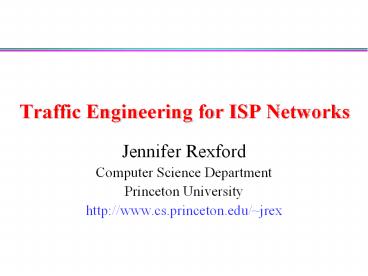

Traffic Engineering for ISP Networks

• Jennifer Rexford
• Computer Science Department
• Princeton University
• http//www.cs.princeton.edu/jrex

2
A Challenge in ISP Backbone Networks

• Finding a good way to route the data packets
• Given the current network topology and offered
  traffic
• For good performance and efficient use of
  resources

3
Why the Problem is Hard?

• IP traffic varies, and the service is best effort
• The offered traffic is not known in advance
• The resources in the network are not reserved
• The routers do not adapt on their own
• Load-sensitive routing is not widely deployed
• Due to control overhead and stability challenges
• Routing protocols were not designed to be managed
• At best indirect control over the flow of traffic
• Fine-grain traffic measurements often unavailable
• E.g., only have coarse-grain link load statistics

4
In This Talk

• TE with traditional IP routing protocols
• Shortest-path protocols with configurable link
  weights
• Two main research challenges
• Optimization tuning link weights to the offered
  traffic
• Tomography inferring the offered traffic from
  link load
• Deployed solutions in ATTs U.S. backbone
• Our experiences working with the network
  operators
• And how we improved the tools over time
• Ongoing research on traffic management

5
Optimization Tuning Link Weights
6
Routing Inside an Internet Service Provider

• Routers flood information to learn the topology
• Routers determine next hop to reach other
  routers
• By computing shortest paths based on the link
  weights
• Routers forward packets via the next hop link(s)

2
1
3
1
3
2
1
5
4
3
7
Link Weights Control the Flow of Traffic

• Routers compute paths
• Shortest paths as sum of link weights
• Operators set the link weights
• To control where the traffic goes

2
1
3
1
3
2
3
1
5
4
3
8
Heuristics for Setting the Link Weights

• Proportional to physical distance
• Cross-country links have higher weights than
  local ones
• Minimizes end-to-end propagation delay
• Inversely proportional to link capacity
• Smaller weights for higher-bandwidth links
• Attracts more traffic to links with more capacity
• Tuned based on the offered traffic
• Network-wide optimization of weights based on
  traffic
• Directly minimizes key metrics like max link
  utilization

9
Why Are the Link Weights Static?

• Strawman alternative load-sensitive routing
• Link metrics based on traffic load
• Flood dynamic metrics as they change
• Adapt automatically to changes in offered load
• Reasons why this is typically not done
• Delay-based routing unsuccessful in the early
  days
• Oscillation as routers adapt to out-of-date
  information
• Most Internet transfers are very short-lived
• Research and standards work continues
• but operators have to work with what they have

10
Big Picture Measure, Model, and Control
Network-wide what if model
Offered traffic
Topology/ Configuration
Changes to the network
measure
control
Operational network
11
Traffic Engineering in an ISP Backbone

• Topology
• Connectivity and capacity of routers and links
• Traffic matrix
• Offered load between points in the network
• Link weights
• Configurable weights for shortest-path routing
• Performance objective
• Balanced load, low latency, service level
  agreements
• Question Given the topology and traffic matrix
  in an IP network, which link weights should be
  used?

12
Key Ingredients of Our Approach

• Measurement
• Topology monitoring of the routing protocols
• Traffic matrix widely deployed traffic
  measurement
• Network-wide models
• Representations of topology and traffic
• What-if models of shortest-path routing
• Network optimization
• Efficient algorithms to find good configurations
• Operational experience to identify key
  constraints

13
Formalizing the Optimization Problem

• Input graph G(R,L)
• R is the set of routers
• L is the set of unidirectional links
• cl is the capacity of link l
• Input traffic matrix
• Mi,j is traffic load from router i to j
• Output setting of the link weights
• wl is weight on unidirectional link l
• Pi,j,l is fraction of traffic from i to j
  traversing link l

14
Multiple Shortest Paths With Even Splitting
Values of Pi,j,l
15
Defining the Objective Function

• Computing the link utilization
• Link load ul Si,j Mi,j Pi,j,l
• Utilization ul/cl
• Objective functions
• min(maxl(ul/cl))
• min(Sl f(ul/cl))

16
Complexity of the Optimization Problem

• NP-hard optimization problem
• No efficient algorithm to find the link weights
• Even for the simple convex objective functions
• Why cant we just do multi-commodity flow?
• E.g., solve the multi-commodity flow problem
• and the link weights pop out as the dual
• Because IP routers cannot split arbitrarily over
  ties
• What are the implications?
• Have to resort to searching through weight
  settings

17
Optimization Based on Local Search

• Start with an initial setting of the link weights
• E.g., same integer weight on every link
• E.g., weights inversely proportional to link
  capacity
• E.g., existing weights in the operational network
• Compute the objective function
• Compute the all-pairs shortest paths to get
  Pi,j,l
• Apply the traffic matrix Mi,j to get link loads
  ul
• Evaluate the objective function from the ul/cl
• Generate a new setting of the link weights

repeat
18
Making the Search Efficient

• Avoid repeating the same weight setting
• Keep track of past values of the weight setting
• or keep a small signature (e.g., a hash) of
  past values
• Do not evaluate a weight setting if signatures
  match
• Avoid computing the shortest paths from scratch
• Explore weight settings that changes just one
  weight
• Apply fast incremental shortest-path algorithms
• Limit the number of unique values of link weights
• Do not explore all 216 possible values for each
  weight
• Stop early, before exploring the whole search
  space

19
Incorporating Operational Realities

• Minimize number of changes to the network
• Changing just 1 or 2 link weights is often enough
• Tolerate failure of network equipment
• Weights settings usually remain good after
  failure
• or can be fixed by changing one or two weights
• Limit dependence on measurement accuracy
• Good weights remain good, despite random noise
• Limit frequency of changes to the weights
• Joint optimization for day and night traffic
  matrices

20
Application to ATTs Backbone Network

• Performance of the optimized weights
• Search finds a good solution within a few minutes
• Much better than link capacity or physical
  distance
• Competitive with multi-commodity flow solution
• How ATT changes the link weights
• Maintenance done every night from midnight to 6am
• Predict effects of removing link(s) from the
  network
• Reoptimize the link weights to avoid congestion
• Configure new weights before disabling equipment

21
Example from My Visit to ATTs Operations Center

• Amtrak repairing/moving part of the train track
• Need to move some of the fiber optic cables
• Or, heightened risk of the cables being cut
• Amtrak notifies us of the time the work will be
  done
• ATT engineers model the effects
• Determine which IP links go over the affected
  fiber
• Pretend the network no longer has these links
• Evaluate the new shortest paths and traffic flow
• Identify whether link loads will be too high

22
Example Continued

• If load will be too high
• Reoptimize the weights on the remaining links
• Schedule the time for the new weights to be
  configured
• Roll back to the old weight setting after Amtrak
  is done
• Same process applied to other cases
• Assessing the networks risk to possible failures
• Planning for maintenance of existing equipment
• Adapting the link weights to installation of new
  links
• Adapting the link weights in response to traffic
  shifts

23
Conclusions on Traffic Engineering

• IP networks do not adapt on their own
• Routers compute shortest paths based on static
  weights
• Service providers need to adapt the weights
• Due to failures, congestion, or planned
  maintenance
• Leads to an interesting optimization problems
• Optimize link weights based on topology and
  traffic
• Optimization problem is computationally difficult
• Forces the use of efficient local-search
  techniques
• Results of the local search are pretty good
• Near-optimal solutions that minimize disruptions

24
Extensions

• Robust link-weight assignments
• Link/node failures
• Range of traffic matrices
• More complex routing models
• Destinations reachable via multiple egress
  points
• Interdomain routing policies
• Interaction between ISPs
• Inter-ISP negotiation for joint optimization
• Grappling with scalability and trust issues

25
Tomography Inferring the Traffic Matrix
26
Computing the Traffic Matrix Mi,j

• Hard to measure the traffic matrix
• IP networks transmit data as individual packets
• Routers do not keep traffic statistics, except
  link utilization on (say) a five-minute time
  scale
• Need to infer the traffic matrix Mi,j from
• Current topology G(R,L)
• Current routing Pi,j,l
• Current link load ul
• Link capacity cl

27
Inference Network Tomography
From link counts to the traffic matrix
Sources
3Mbps
5Mbps
4Mbps
4Mbps
Destinations
28
Tomography Formalizing the Problem

• Ingress-egress pairs
• p is a ingress-egress pair of nodes (i,j)
• xp is the (unknown) traffic volume for this pair
  Mi,j
• Routing
• Plp is proportion of ps traffic that traverses l
• Links in the network
• l is a unidirectional edge
• ul is the observed traffic volume on this link
• Relationship u Px (work backwards to get x)

29
Tomography One Observation Not Enough

• Linear system of n nodes is underdetermined
• Number of links e is around O(n)
• Number of ingress-egress pairs c is O(n2)
• Dimension of solution sub-space at least c - e
• Multiple observations are needed
• k independent observations (over time)
• Stochastic model with Poisson iid counts
• Maximum likelihood estimation to infer matrix
• Doesnt work all that well in practice

30
Approach Used at ATT Tomo-gravity

• Gravitational assumption
• Ingress point a has traffic via
• Egress point b has traffic veb
• Pair (a,b) has traffic proportional to via veb

9
20
21
10
31
Approach Used at ATT Tomo-gravity

• Problem with gravity model
• Gravity model ignores the load on the inside
  links
• Gravity assumption isnt always 100 correct
• Resulting traffic matrix might not satisfy the
  link loads
• Combining the two techniques
• Gravity find a traffic matrix using the gravity
  model
• Tomography find the family of traffic matrices
  consistent with all link load statistics
• Tomo-gravity find the tomography solution that
  is closest to the output of the gravity model
• Works extremely well (and fast) in practice

32
Conclusions

• Managing IP networks is challenging
• Routers dont adapt on their own to congestion
• Routers dont reveal much information about
  traffic
• Measurement provides a network-wide view
• Topology
• Traffic matrix
• Optimization enables the network to adapt
• Inferring the traffic matrix from the link loads
• Optimizing the link weights based on the traffic
  matrix

33
New Research Direction Design for Manage-ability

• Two main parts of network management
• Control optimization
• Measurement tomography
• Two research approaches
• Bottom up do the best with what you have
• Top down design systems that are easier to
  manage
• Design for manage-ability
• If you are both the professor and the student,
  you create exam questions that are easy to
  answer.

34
Example Changing the Path Computation

• Routers split traffic over multiple paths
• More traffic on shorter paths, less on longer
  ones
• In proportion to the exponential of path cost
• Exciting result
• Can achieve optimal distribution of the traffic
• With polynomial-time algorithm for setting the
  weights

35
New Research Direction Logically-Central Control

• Traditional division of labor
• Routers real-time, distributed protocols
• Management system offline, centralized
  algorithms
• Example routing protocols and traffic
  engineering
• Routing routers react automatically to link
  failures
• TE management system sets the link weights
• The case for separating routing from routers
• Better decisions with network-wide visibility
• Routers only collect measurements and forward
  packets

36
Example Routing Control Platform (RCP)

• Logically-centralized server
• Collects measurement data from the network
• Pushes forwarding tables into the routers
• Benefits
• Network-wide policies
• Flexible, easy to customize
• Fewer nodes to upgrade
• Feasibility
• High-end PC can compute routes for large ISP
• Simple replication to survive failures

37
References

• Traffic engineering using traditional protocols
• http//www.cs.princeton.edu/jrex/papers/ieeecomm0
  2.pdf
• http//www.cs.princeton.edu/jrex/papers/opthand04
  .pdf
• http//www.cs.princeton.edu/jrex/papers/ton-whati
  f.pdf
• Tomo-gravity to infer the traffic matrix
• http//www.cs.utexas.edu/yzhang/papers/mmi-ton05.
  pdf
• http//www.cs.utexas.edu/yzhang/papers/tomogravit
  y-sigm03.pdf
• http//www.cs.princeton.edu/jrex/papers/sfi.pdf

38
References

• Design for manage-ability
• http//www.cs.princeton.edu/jrex/papers/pefti.pdf

• http//www.cs.princeton.edu/jrex/papers/optimizab
  ility.pdf
• http//www.cs.princeton.edu/jrex/papers/tie-long.
  pdf
• Routing Control Platform
• http//www.cs.princeton.edu/jrex/papers/rcp.pdf
• http//www.cs.princeton.edu/jrex/papers/ccr05-4d.
  pdf
• http//www.cs.princeton.edu/jrex/papers/rcp-nsdi.
  pdf
• http//www.research.att.com/kobus/docs/irscp.inm.
  pdf
