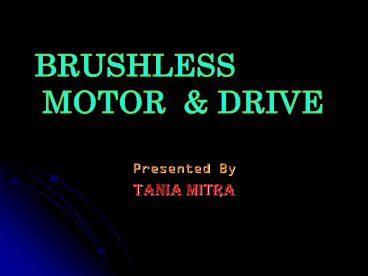

BRUSHLESS MOTOR DRIVE

• Presented By
• TANIA MITRA

2
CONTENTS

• INTRODUCTION
• WORKING OF MOTOR
• BRUSHLESS MOTOR
• WORKING OF BLDC
• TESTING AND
• TUNING
• ADVANTAGES OF BLDC MOTOR

3
INTRODUCTION

• What is Motor?
• It is a machine can converts electrical energy to
  mechanical energy.
• It may be DC or AC depending upon the type of
  power supply.
• It has mainly two parts- stator rotor.
• DC motors are of two types-
• Brushed motor with brushes and commutator and
• Brushless motor- without brushes.

4
INTRODUCTION

• What is commutator and brush ?
• Commutator is a cylindrical in structure, made
  of copper or carbon with high conductivity.
• Mounted on the rotor part of the brushed motor.
• Helps to conduct current
• through conductor when the
• brushes comes to contact
• during rotation.
• The electrical contacts to the
• rotating ring called brushes.

5
Construction of Motor
6
General physics of motor
7
Working Principle
8
Working Principle
9
BRUSHLESS MOTOR

• It has no brushes and commutators.
• The rotation of the rotor depends on the accurate
  position with stator.
• Detected by Hall Sensor, mounted on rotor,
  shifted at 60º or 120º phase shift.
• Electronic commutation used
• to vary the PWM duty-cycle for
• speed control, using software.

10
Working of BLDC motor

• As there is no commutator ,the current direction
  of the conductor on the stator controlled
  electronically.
• Rotor consists the parmanent magnet where as
  stator consist a no. of windings. Current through
  these winding produces magnetic field and force.
• Hall sensor used to determine the position during
  commutation.

11
Commutation of BLDC motor

• Brushless DC motor requires external commutation
  circuit to rotate the rotor.
• Rotor position is very important.
• HALL SENSOR senses the position of the coil
  accurately

12
Hall Sensor operation

• It embedded into the stator on non-driving end of
  motor.
• Senses accurate position of the rotor to the
  stator.
• Shifts at 60º or 120º phase shift for each of
  three coils, yet a time two coils work for 3F
  current
• Due to the changing of direction of the current
  applying Flemings Left Hand rule force direction
  can be determined.
• Thus the permanent magnet on rotor moves
  clockwise , as well as the rotor of the BLDC also
  moves clockwise.

13
Hall Sensor operation (contd.)
14
Hall Sensor operation (contd.)
15
Output of Hall Sensor
16
PWM requirement

• To control the speed PWM is required. To vary the
  speed the Hall output signals should be pulse
  width modulated.
• When the signals marked by PWM switches ON or OFF
  according to the sequence, the motor will run at
  the rated speed.
• The PWM frequency should be at least 10 times of
  the max. frequency as thumb rule.
• By varying duty cycle, the stator voltage can be
  increased causes increasing of the speed.

17

• Machine rated speed 1000rpm, commutated with 6
  pulses
• Required frequency f 10006 6000 pulse/min.
• Therefore, speed in pulse/sec 6000/60 100 Hz.
  And the PWM frequency 10100 Hz 1kHz.
• Thus the speed depends on the switching frequency
  i.e. switching period.
• By varying duty cycle PWM freq. varies and
  switching speed also varies.
• It is controlled by electronically through
  software PEWIN32PRO in GMRT rayshed.

18
TESTING of bldc in gmrt rayshed
19
Brushless Servo motor
AKM series motor
20
SERVOSTAR (used in GMRT Rayshed)
21
Minimum wiring for Driving Test
22
Testing Procedure
23
Testing Procedure (contd.)
24
Testing Procedure (contd.)
25
Testing Procedure (contd.)
26
Testing Procedure (contd.)
27
Testing Procedure (contd.)
28
Testing Procedure (contd.)
29
TUNING of BLDC in GMRT RAYSHED

• PMAC Programmable Multi Axis Controller.
• Commanding upto 8 axes of motion simultaneously.

• Three axes for Azimuth axis control , another
  three axes for Elevation axis control rest 2
  for future use.
• Each axis control part contains one feedback port
  also.
• It is set to the SERVOSTAR through PEWIN32PRO
  software.

30
Position and Velocity loop control
31

• PMAC can be configured as two loops
• 1. position loop
• 2. velocity loop

32
PMAC configured as Position Loop
33

• PMAC 1st axis connected to motor1 through
  servostar 1 as well as 2nd also connected to
  motor2 through servostar 2.
• Both the motors coupled through central gear and
  connected to the encoder.
• Encoder feedback connected to 5th axis of the
  PMAC.
• Commands for position loop
• 1o0 2o0 5o0 (enabling 1st, 2nd and 5th axis)
• 5j (closing the position loop)

34
(No Transcript)
35
PMAC configured as Velocity Loop

• For making PMAC configured as velocity loop,
  position feedback need to be zero.
• Thus in below diagram 5th axis is zero.
• Command for velocity loop
• 1o0 2o0 5o0 7o0(enabling 1,2 5 7 axis)

• 5j/ (closing feedback)
• Note 7th channel taken for encoder data.

36
(No Transcript)
37
Programmable Multi Axes Controller (PMAC)
38
PMAC connected with SERVOSTAR MOTORS
39
Advantages of Brushless Motor

• In BLDC motor PM are on the rotor
  electromagnets are on the stator controlled by
  software. Thus the advantages are
• Because of computer control it is more precise
  more efficient.
• There is no sparking less electrical noise.
• Voltage and current rating is high.
• High speed can be achieved.
• As there is no brushes it requires no servicing.
• It has longer life.
• Low Radio Frequency Interference and
  Electromagnetic Interference.

40
GMRT ANTENNA
41
GMRT ANTENNA ARRAY
42
SERVO MOTOR (at elevation) AT GMRT ANTENNA
43
Brushless DC motors at GMRT Rayshed
44
Brushless motors at GMRT Rayshed
